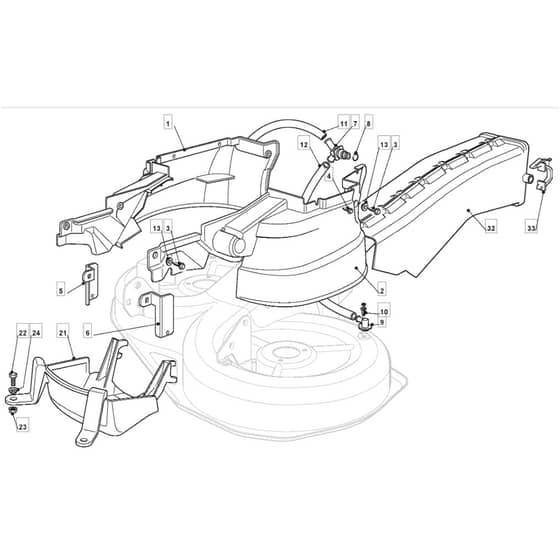

1436H - 2012-2013 - 2T0420283/MFR - Mountfield Ride On Mower Guards Diagram

Name: 1436H - 2012-2013 - 2T0420283/MFR - Mountfield Ride On Mower Guards Diagram
SKU: 1436h_2t0420283_mfr_guards-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2012-2013 - 2T0420283/MFR - Mountfield Ride On Mower Guards Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2012-2013

Model Type - NJS 92 Hydro

Art.N - 2T0420283/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325060121/2 Out of stock	Right Belt Protection Carter	£80.16 £66.80
2	MO325060122/1 Out of stock	Left Belt Protection Carter	£47.40 £39.50
3	MO112735120/0 Out of stock	Screw	£1.49 £1.24
4	MO112728535/0 Out of stock	Screw	£1.49 £1.24
5	MO325774381/0 Out of stock	Bracket	£4.20 £3.50
6	MO325774383/0 Out of stock	Bracket	£4.20 £3.50
7	MO325033066/0 Out of stock	Water Hose Connection	£3.25 £2.71
8	MO112000970/0 Out of stock	Ring (Benzing)	£1.49 £1.24
9	MO325033065/0 Out of stock	Water Hose Connection	£2.30 £1.92
10	MO112500030/0 Out of stock	Rivet	£1.49 £1.24
11	MO325869069/0 Out of stock	Washing Tube	£19.37 £16.14
12	MO325869068/0 Out of stock	Washing Tube	£8.40 £7.00
13	MO325160039/0 Out of stock	Spacer	£1.49 £1.24
21	MO325060127/0 Out of stock	Belt Protection	£14.23 £11.86
22	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
23	MO112154510/0 In stock	Nut	£1.49 £1.24
32	MO382108008/1 Out of stock	Conveyor	£65.02 £54.18
33	MO325774373/0 In stock	Release Clamp	£2.84 £2.37
