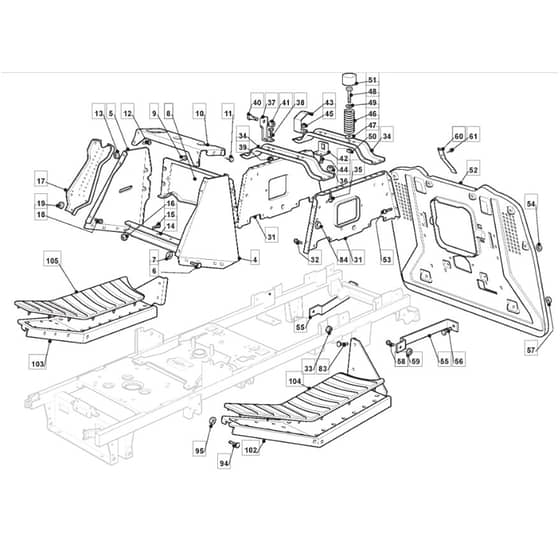

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2011-2012

Model Type - NJS 92 Hydro

Art.N - 2T0420283/M10

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Left Dashboard Support MO325785243/1
Left Dashboard Support
 Out of stock
£28.44 £23.70

  5 Right Dashboard Support MO325785245/0
Right Dashboard Support
 Out of stock
£21.41 £17.84

  8 Rear Dashboard Support From 01-9-2013 MO382785151/2
Rear Dashboard Support From 01-9-2013
 Out of stock
£16.19 £13.49

  8 Rear Dashboard Support To 01-9-2013 MO382785151/1
Rear Dashboard Support To 01-9-2013
 Out of stock
£15.53 £12.94

  10 Central Dashboard Support MO325785255/0
Central Dashboard Support
 Out of stock
£7.92 £6.60

  11 Screw MO112735110/0
Screw
 Out of stock
£1.49 £1.24

  12 Screw MO112815200/0
Screw
 In stock
£1.63 £1.36

  13 Nut MO112292102/0
Nut
 In stock
£1.80 £1.50

  14 Support MO325785241/0
Support
 Out of stock
£6.84 £5.70

  17 Front Dashboard Support MO382785153/1
Front Dashboard Support
 Out of stock
£14.83 £12.36

  31 Seat Support MO325785249/0
Seat Support
 Out of stock
£32.51 £27.09

  34 Seat Support MO325785257/1
Seat Support
 Out of stock
£11.99 £9.99

  35 Screw MO112818690/0
Screw
 Out of stock
£1.61 £1.34

  36 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  37 Bracket MO325755039/0
Bracket
 Out of stock
£5.28 £4.40

  38 Screw MO112792611/0
Screw
 Out of stock
£1.49 £1.24

  40 Fulcrum Pin MO122524970/2
Fulcrum Pin
 Out of stock
£1.82 £1.52

  41 Nut MO112155010/0
Nut
 Out of stock
£2.04 £1.70

  42 Bracket MO325755043/0
Bracket
 Out of stock
£2.17 £1.81

  43 Micro Seat Protect Spring MO325430253/0
Micro Seat Protect Spring
 Out of stock
£5.02 £4.18

  44 Screw MO112789000/0
Screw
 Out of stock
£1.49 £1.24

  45 Nut MO112154330/0
Nut
 Out of stock
£1.49 £1.24

  46 Spring MO125430257/1
Spring
 Out of stock
£12.05 £10.04

  47 Washer MO112523070/0
Washer
 Out of stock
£1.49 £1.24

  48 Screw MO112760515/0
Screw
 Out of stock
£1.49 £1.24

  49 Washer MO122671653/0
Washer
 In stock
£1.63 £1.36

  50 Nut MO112360425/0
Nut
 Out of stock
£1.75 £1.46

  51 Cap MO325122000/2
Cap
 Out of stock
£1.49 £1.24

  52 Plate MO382547041/1
Plate
 Out of stock
£98.87 £82.39

  55 Plate Stiffening MO325650119/0
Plate Stiffening
 Out of stock
£13.00 £10.83

  60 Spring From 01-9-2012 MO125430276/0
Spring From 01-9-2012
 Out of stock
£4.87 £4.06

  60 Spring To 01-9-2012 MO127430600/0
Spring To 01-9-2012
 Out of stock
£2.70 £2.25

  102 Left Footboard Support MO382510083/0
Left Footboard Support
 Out of stock
£72.56 £60.47

  103 Right Footboard Support MO382510081/0
Right Footboard Support
 Out of stock
£75.85 £63.21

  104 Left Footboard Cover MO325110327/0
Left Footboard Cover
 Out of stock
£17.47 £14.56

  105 Right Footboard Cover MO325110326/0
Right Footboard Cover
 Out of stock
£19.09 £15.91
