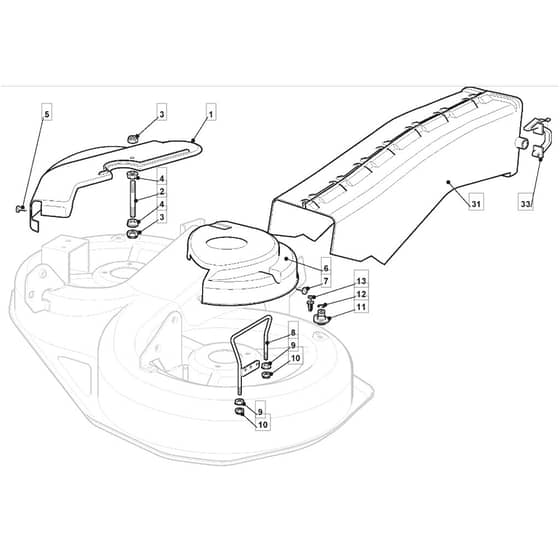

1436H - 2008 - 299964383/UM8 - Mountfield Ride On Mower Guards Diagram

Name: 1436H - 2008 - 299964383/UM8 - Mountfield Ride On Mower Guards Diagram
SKU: 1436h_299964383_um8_guards-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2008 - 299964383/UM8 - Mountfield Ride On Mower Guards Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2008

Model Type - NJS 92 Hydro

Art.N - 299964383/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325060111/0 Out of stock	Right Belt Protection Carter	£13.55 £11.29
4	MO112293201/0 In stock	Nut	£1.63 £1.36
5	MO112735110/0 Out of stock	Screw	£1.49 £1.24
6	MO325060112/0 Out of stock	Left Belt Protection	£16.03 £13.36
8	MO382270301/0 Out of stock	Belt Guide	£46.98 £39.15
10	MO112155000/0 In stock	Nut	£1.49 £1.24
11	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
12	MO119035000/0 Out of stock	Or Ring	£4.87 £4.06
13	MO112500030/0 Out of stock	Rivet	£1.49 £1.24
31	MO382108008/1 Out of stock	Conveyor	£65.02 £54.18
33	MO325774373/0 Out of stock	Release Clamp	£2.84 £2.37
