1436H - 2008 - 299964383/UM8 - Mountfield Ride On Mower Engine TRE0701 Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2008

Model Type - NJS 92 Hydro

Art.N - 299964383/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550207/0 Out of stock	Output Wire. Rectifier	£6.60 £5.50
2	MO118550214/0 Out of stock	Start Motor Assy	£150.49 £125.41
3	MO118550208/1 Out of stock	Rectfier	£47.06 £39.22
4	MO118550209/1 In stock	Electronic Coil	£40.57 £33.81
5	MO118550203/0 Out of stock	Fan Cover	£41.99 £34.99
6	MO118550215/0 Out of stock	Cover Assy	£98.87 £82.39
7	MO118550235/0 Out of stock	Flywheel Fan	£24.08 £20.07
8	MO118550234/2 Out of stock	Flywheel Ass.Y	£209.38 £174.48
9	MO118550444/0 Out of stock	Oil Filler Assy	£28.44 £23.70
12	MO118550213/0 Out of stock	Spring	£2.04 £1.70
13	MO118551578/0 Out of stock	Fuel Pump Assy	£59.59 £49.66
14	MO118550375/1 In stock	Carburetor	£95.48 £79.57

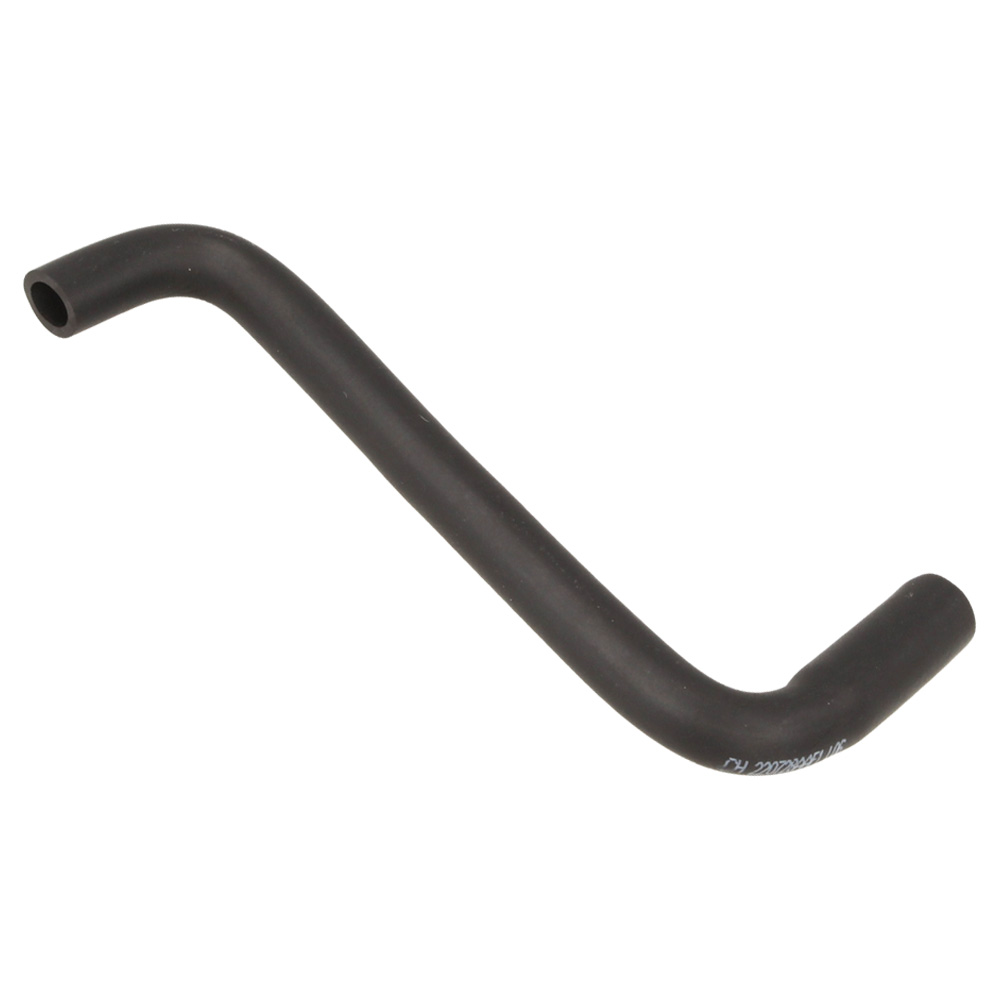

15	MO118550225/1 Out of stock	Breather Fuel Pipe	£8.53 £7.11
16	MO118550237/0 Out of stock	Nut	£3.25 £2.71
17	MO118550236/0 Out of stock	Starter Cup	£5.89 £4.91
18	MO118550210/1 Out of stock	Coil Assy. Charge	£54.96 £45.80
20	MO118550239/1 Out of stock	Governor Rod Assy	£13.28 £11.07
21	MO118550332/1 Out of stock	Brushhold	£33.86 £28.22
22	MO118550331/1 Out of stock	Remote Control Assy	£40.63 £33.86
23	MO118550201/0 Out of stock	Knob	£7.88 £6.57
24	MO118550200/0 Out of stock	Air Cleaner Cover	£16.12 £13.43
25	MO118550199/0 In stock	Air Filter	£18.58 £15.48

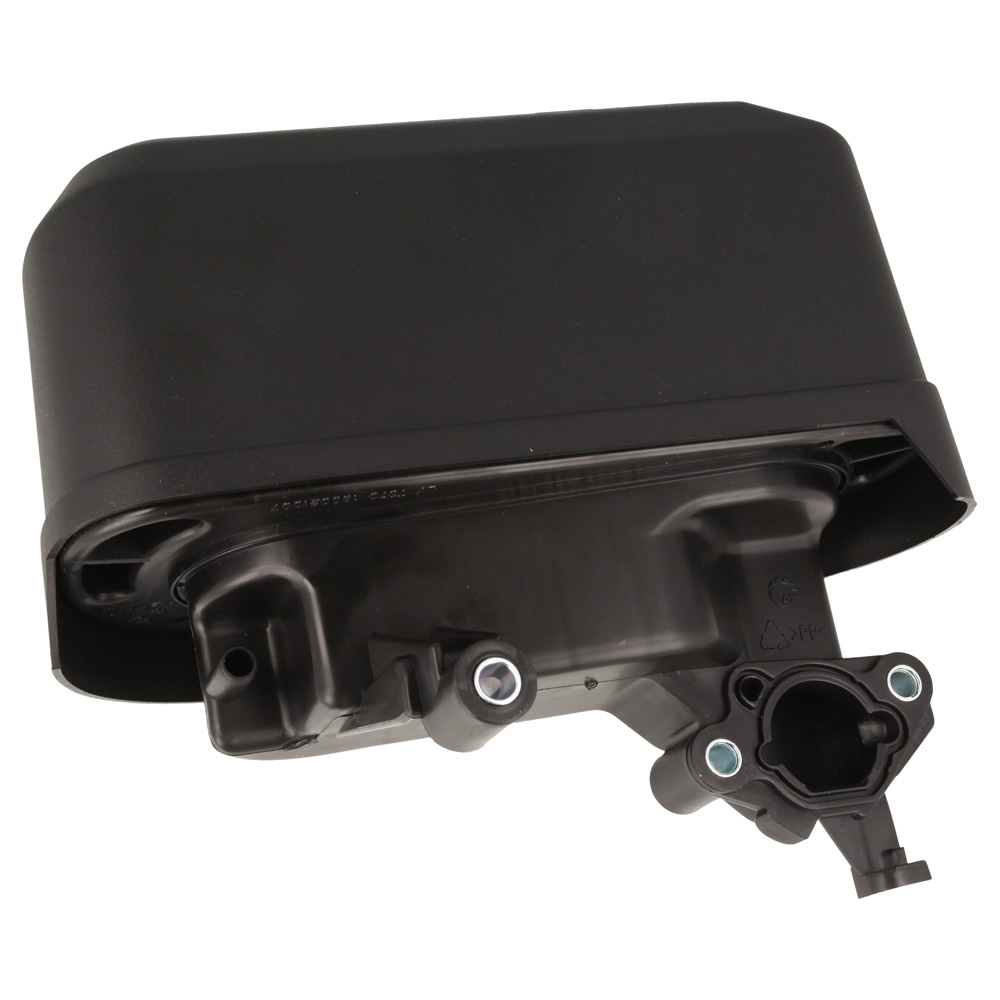

26	MO118551516/0 Out of stock	Air Cleaner Assy	£37.58 £31.32
27	3381 In stock	Spark Plug	£4.44 £3.70
28	MO118550348/1 Out of stock	Fuel Pump Stifferning	£23.44 £19.53
30	MO118550427/0 In stock	Fuel Filter	£5.28 £4.40
31	MO118550365/1 Out of stock	Kit Repair	£48.76 £40.63
32	MO118550448/0 Out of stock	Spark Plug Terminal	£15.71 £13.09
34	MO118550442/0 Out of stock	Carburettor Gasket Set	£15.18 £12.65
35	MO118550440/0 Out of stock	Kit Repair. Carburettor	£10.02 £8.35
36	MO118550217/1 Out of stock	Gasket Kit	£10.43 £8.69
