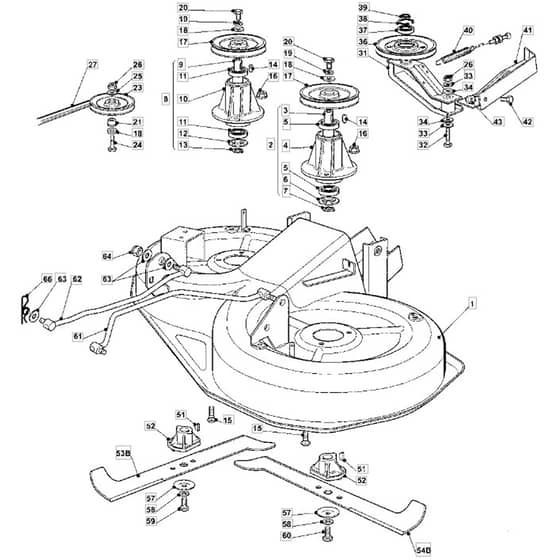

1436H - 2007 - 13-2689-12 - Mountfield Ride On Mower Deck Cover Diagram

1436H - 2007 - 13-2689-12 - Mountfield Ride On Mower Deck Cover Diagram
1436H - 2007 - 13-2689-12 - Mountfield Ride On Mower Deck Cover Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2007

Model Type -

Art.N - 13-2689-12

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Cutting Plate Black T35M . 1436M.H MO382564075/1
Cutting Plate Black T35M . 1436M.H
 In stock
£422.98 £352.48

  2 Main Blade Shaft Ass.Y Pos 3 - 7 incl. _ T35M . 1436M.H MO382207202/1LC
Main Blade Shaft Ass.Y Pos 3 - 7 incl. _ T35M . 1436M.H
 Out of stock
£87.36 £72.80

  3 Main Blade Shaft T35M . 1436M.H MO125020834/0
Main Blade Shaft T35M . 1436M.H
 Out of stock
£29.24 £24.37

  8 Secondary Blade Shaft Ass.Y Pos 9 - 13 incl. _ T35M . 1436M.H MO382207203/1LC
Secondary Blade Shaft Ass.Y Pos 9 - 13 incl. _ T35M . 1436M.H
 Out of stock
£87.36 £72.80

  9 Secondary Blade Shaft T35M . 1436M.H MO125020803/0
Secondary Blade Shaft T35M . 1436M.H
 Out of stock
£29.24 £24.37

  10 Blade Shaft Support T35M . 1436M.H MO125207200/0
Blade Shaft Support T35M . 1436M.H
 Out of stock
£48.76 £40.63

  11 Bearing T35M . 1436M.H MO119216047/0
Bearing T35M . 1436M.H
 In stock
£14.40 £12.00

  12 Dust Cover Disc T35M . 1436M.H MO325160501/1
Dust Cover Disc T35M . 1436M.H
 Out of stock
£1.49 £1.24

  13 Seeger T35M . 1436M.H MO112609260/0
Seeger T35M . 1436M.H
 Out of stock
£1.75 £1.46

  14 Feather T35M . 1436M.H MO112139480/0
Feather T35M . 1436M.H
 In stock
£1.63 £1.36

  15 Screw T35M . 1436M.H MO112818700/0
Screw T35M . 1436M.H
 In stock
£1.49 £1.24

  16 Nut T35M . 1436M.H MO112154210/0
Nut T35M . 1436M.H
 In stock
£1.80 £1.50

  17 Pulley T35M . 1436M.H MO125601563/0
Pulley T35M . 1436M.H
 Out of stock
£41.99 £34.99

  18 Washer T35M . 1436M.H MO125670007/0
Washer T35M . 1436M.H
 Out of stock
£1.90 £1.58

  19 Grower T35M . 1436M.H MO112583500/0
Grower T35M . 1436M.H
 Out of stock
£1.49 £1.24

  20 Screw T35M . 1436M.H MO112793102/0
Screw T35M . 1436M.H
 In stock
£1.49 £1.24

  21 Spacer T35M . 1436M.H MO125160007/1
Spacer T35M . 1436M.H
 Out of stock
£3.12 £2.60

  23 Pulley T35M . 1436M.H MO125601555/0
Pulley T35M . 1436M.H
 In stock
£26.76 £22.30

  24 Screw T35M . 1436M.H MO112691115/0
Screw T35M . 1436M.H
 Out of stock
£1.49 £1.24

  25 Washer T35M . 1436M.H MO112523060/0
Washer T35M . 1436M.H
 In stock
£1.49 £1.24

  26 Nut T35M . 1436M.H MO112155000/0
Nut T35M . 1436M.H
 Out of stock
£1.63 £1.36

  27 Belt T35M . 1436M.H MO135061508/0LC
Belt T35M . 1436M.H
 In stock
£58.32 £48.60

  31 Lever T35M . 1436M.H MO382318141/2
Lever T35M . 1436M.H
 Out of stock
£35.21 £29.34

  32 Screw T35M . 1436M.H MO112691700/0
Screw T35M . 1436M.H
 Out of stock
£1.75 £1.46

  33 Washer T35M . 1436M.H MO112523070/0
Washer T35M . 1436M.H
 Out of stock
£1.49 £1.24

  34 Antifriction Washer T35M . 1436M.H MO322672152/0
Antifriction Washer T35M . 1436M.H
 Out of stock
£1.75 £1.46

  36 Pulley T35M . 1436M.H MO125601564/1
Pulley T35M . 1436M.H
 Out of stock
£43.33 £36.11

  37 Bearing T35M . 1436M.H MO119216048/0
Bearing T35M . 1436M.H
 In stock
£16.68 £13.90

  38 Seeger T35M . 1436M.H MO112610800/0
Seeger T35M . 1436M.H
 Out of stock
£1.63 £1.36

  39 Seeger T35M . 1436M.H MO112609200/0
Seeger T35M . 1436M.H
 Out of stock
£1.49 £1.24

  40 Wire T35M . 1436M.H MO382004618/0
Wire T35M . 1436M.H
 In stock
£20.76 £17.30

  41 Clamp T35M . 1436M.H MO382774215/3
Clamp T35M . 1436M.H
 Out of stock
£29.80 £24.83

  42 Screw T35M . 1436M.H MO112792611/0
Screw T35M . 1436M.H
 Out of stock
£1.49 £1.24

  43 Nut T35M . 1436M.H MO112293201/0
Nut T35M . 1436M.H
 In stock
£1.63 £1.36

  51 Key T35M . 1436M.H MO112139100/0
Key T35M . 1436M.H
 In stock
£1.63 £1.36

  52 Blade Holder T35M . 1436M.H MO125463200/0
Blade Holder T35M . 1436M.H
 In stock
£8.40 £7.00

  53 53B Right Blade. Winged Collecting (winged) _ T35M. 1436M.H MO182004345/1
53B Right Blade. Winged Collecting (winged) _ T35M. 1436M.H
 In stock
£22.63 £18.86

  54 54B Left Blade. Winged Collecting (winged) _ T35M. 1436M.H MO182004344/1
54B Left Blade. Winged Collecting (winged) _ T35M. 1436M.H
 In stock
£22.63 £18.86

  57 Elastic Disc T35M . 1436M.H MO122160400/0
Elastic Disc T35M . 1436M.H
 In stock
£1.75 £1.46

  58 Washer T35M . 1436M.H MO112523080/0
Washer T35M . 1436M.H
 In stock
£1.63 £1.36

  59 Screw T35M . 1436M.H MO112735695/1
Screw T35M . 1436M.H
 In stock
£3.48 £2.90

  60 Screw T35M . 1436M.H MO112735694/0
Screw T35M . 1436M.H
 In stock
£1.90 £1.58

  61 Equalizer Rod T35M . 1436M.H MO382000535/0LC
Equalizer Rod T35M . 1436M.H
 Out of stock
£33.86 £28.22

  62 Equalizer Rod T35M . 1436M.H MO382000533/0LC
Equalizer Rod T35M . 1436M.H
 Out of stock
£33.86 £28.22

  63 Washer T35M . 1436M.H MO325670008/1
Washer T35M . 1436M.H
 In stock
£1.63 £1.36

  64 Nut T35M . 1436M.H MO112156602/0
Nut T35M . 1436M.H
 In stock
£1.36 £1.13

  66 R Clip D.2 MO124487998/0
R Clip D.2
 In stock
£1.48 £1.23


Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2007

Model Type -

Art.N - 13-2689-12
