1436H - 2007 - 13-2689-12 - Mountfield Ride On Mower Controls Diagram

Name: 1436H - 2007 - 13-2689-12 - Mountfield Ride On Mower Controls Diagram
SKU: 1436h_13_2689_12_controls-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

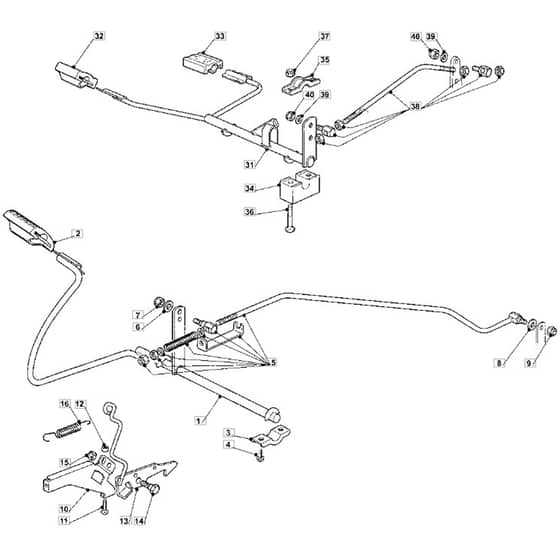

1436H - 2007 - 13-2689-12 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2007

Model Type -

Art.N - 13-2689-12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500029/1 Out of stock	Pedal	£64.88 £54.07
2	MO125110267/0 Out of stock	Clamp Cover	£3.65 £3.04
3	MO327546015/2 Out of stock	Plate	£1.49 £1.24
4	MO112729601/1 Out of stock	Screw	£1.48 £1.23
5	MO382000542/1 Out of stock	Control Rod	£37.93 £31.61
6	MO112521350/0 Out of stock	Washer	£1.49 £1.24
10	MO325785261/0 Out of stock	Support	£6.37 £5.31
11	MO112815200/0 In stock	Screw	£1.49 £1.24
12	MO112292102/0 In stock	Nut	£1.63 £1.36
13	MO382000531/0 Out of stock	Rod	£335.26 £279.38
14	MO122524970/2 Out of stock	Fulcrum Pin	£1.82 £1.52
15	MO112155000/0 Out of stock	Nut	£1.49 £1.24
16	MO125430213/0 Out of stock	Spring	£1.63 £1.36
32	MO325110274/0 Out of stock	Clamp Cover Front	£6.91 £5.76
33	MO325110331/0 Out of stock	Clamp Cover Rear	£6.77 £5.64
34	MO325785185/0 Out of stock	Support	£3.53 £2.94
36	MO112815245/0 Out of stock	Screw	£1.49 £1.24
37	MO112154510/0 In stock	Nut	£1.49 £1.24
38	MO382000543/0 Out of stock	Rod	£35.21 £29.34
39	MO112523040/0 In stock	Washer	£1.49 £1.24
