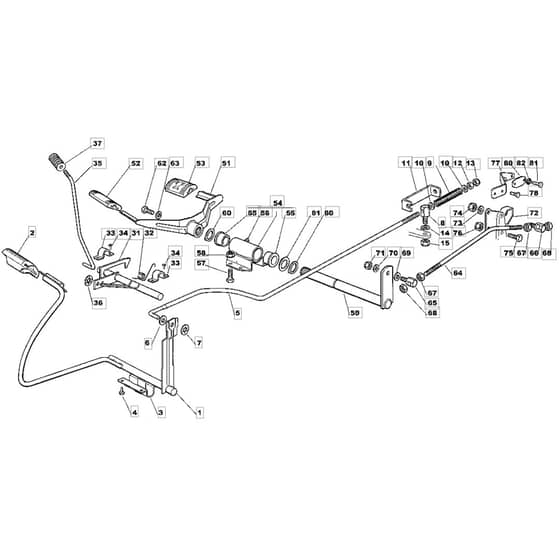

Mountfield 1436H Parts Diagram

Product Name - 1437 H

Model Year - 2006

Model Type - N/A

Art.N - 13-2683-11

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Pedal MO382500017/0
Pedal
 Out of stock
£47.10 £39.25

  2 Pedal Cover MO125110267/0
Pedal Cover
 Out of stock
£3.65 £3.04

  3 Clamp MO325547039/0
Clamp
 Out of stock
£4.33 £3.61

  7 Locking Washer MO112604899/0
Locking Washer
 In stock
£1.49 £1.24

  8 Pivot Bolt MO125510067/1
Pivot Bolt
 Out of stock
£4.20 £3.50

  9 Spring MO25430236/0
Spring
 Out of stock
£2.17 £1.81

  10 Washer MO112521360/0
Washer
 In stock
£1.49 £1.24

  11 Clamp MO325774275/1
Clamp
 Out of stock
£3.38 £2.82

  12 Nut MO112295200/0
Nut
 Out of stock
£1.36 £1.13

  13 Lock Nut MO112156602/0
Lock Nut
 In stock
£1.36 £1.13

  14 Washer MO9699-0090-02
Washer
 Out of stock
£1.90 £1.58

  15 Lock Nut MO112155000/0
Lock Nut
 In stock
£1.49 £1.24

  31 Axle MO382000361/0
Axle
 Out of stock
£25.49 £21.24

  32 Spring MO125430234/0
Spring
 Out of stock
£8.40 £7.00

  33 Clamp MO325547049/0
Clamp
 Out of stock
£2.98 £2.48

  34 Screw MO9847-8016-16
Screw
 Out of stock
£1.90 £1.58

  35 Parking Brake Lever MO125033043/0
Parking Brake Lever
 Out of stock
£19.91 £16.59

  36 Starlock MO112604898/0
Starlock
 Out of stock
£1.49 £1.24

  37 Knob MO127395050/1
Knob
 Out of stock
£2.84 £2.37

  51 Drive Pedal MO382500008/0
Drive Pedal
 Out of stock
£56.88 £47.40

  52 Pedal Cover-Front MO125110265/0
Pedal Cover-Front
 Out of stock
£8.15 £6.79

  53 Pedal Cover-Rear MO125110266/0
Pedal Cover-Rear
 Out of stock
£10.84 £9.03

  55 Bushing MO125034002/1
Bushing
 Out of stock
£3.65 £3.04

  56 Grease Dispenser MO112379511/0
Grease Dispenser
 Out of stock
£1.49 £1.24

  57 Screw MO112791200/1
Screw
 Out of stock
£1.34 £1.12

  58 Nut MO112292102/0
Nut
 In stock
£1.63 £1.36

  60 Circlip MO112609260/0
Circlip
 Out of stock
£1.75 £1.46

  61 Washer MO322672153/0
Washer
 Out of stock
£1.49 £1.24

  62 Screw MO9997-0816-16
Screw
 Out of stock
£1.49 £1.24

  63 Washer MO112583500/0
Washer
 Out of stock
£1.49 £1.24

  64 Drive Rod MO125033042/0
Drive Rod
 Out of stock
£46.06 £38.38

  67 Nut MO112293200/0
Nut
 In stock
£1.49 £1.24

  70 Washer MO112523040/0
Washer
 In stock
£1.49 £1.24

  71 Lock Nut MO112154510/0
Lock Nut
 In stock
£1.49 £1.24

  75 Screw MO9997-0620-16
Screw
 Out of stock
£1.49 £1.24

  77 Clamp MO325774289/0
Clamp
 Out of stock
£9.17 £7.64

  78 Screw MO112735110/0
Screw
 Out of stock
£1.49 £1.24

  80 Plate MO327546019/0
Plate
 Out of stock
£1.36 £1.13

  81 Screw MO112735602/0
Screw
 Out of stock
£1.49 £1.24

  82 Washer MO112540020/0
Washer
 Out of stock
£1.49 £1.24
