Description

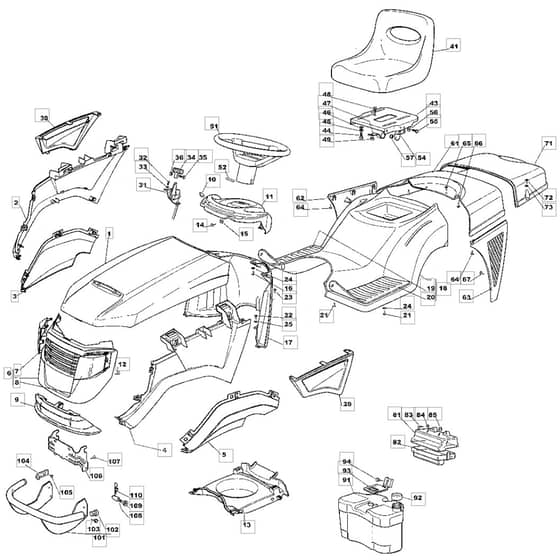

Mountfield 1436H Parts Diagram

Product Name - 1437 H

Model Year - 2006

Model Type - N/A

Art.N - 13-2683-11

Ref. Img. Part No. Details
  4 Hood-Upper Lh. Red
Hood-Upper Lh. Red
MO382394615/0 Out of stock
Hood-Upper Lh. Red
£83.64 £69.70

  6 Hood-Front. Black Pos 7 - 8 incl.
Hood-Front. Black Pos 7 - 8 incl.
MO382394613/0 Out of stock
Hood-Front. Black Pos 7 - 8 incl.
£80.58 £67.15

  7 Grill-Rh
Grill-Rh
MO325410876/0 Out of stock
Grill-Rh
£8.46 £7.05

  8 Grill-Lh
Grill-Lh
MO325410877/0 Out of stock
Grill-Lh
£8.46 £7.05

  9 Hood-Front Lower. Black
Hood-Front Lower. Black
MO325076870/1 Out of stock
Hood-Front Lower. Black
£15.84 £13.20

  10 Grommet
Grommet
MO125260000/0 Out of stock
Grommet
£2.84 £2.37

  13 Conveyor
Conveyor
MO325108031/0 Out of stock
Conveyor
£54.18 £45.15

  14 Screw
Screw
MO112735110/0 Out of stock
Screw
£1.49 £1.24

  15 Lock Plate
Lock Plate
MO112437502/0 Out of stock
Lock Plate
£1.49 £1.24

  16 Screw
Screw
MO112735402/0 In stock
Screw
£1.49 £1.24

  17 Support. Dashboard
Support. Dashboard
MO325785053/1 Out of stock
Support. Dashboard
£98.87 £82.39

  18 Wheels Cover Red Pos 19. 20 incl.
Wheels Cover Red Pos 19. 20 incl.
MO382110007/3 Out of stock
Wheels Cover Red Pos 19. 20 incl.
£204.00 £170.00

  21 Screw
Screw
MO112735410/0 Out of stock
Screw
£1.49 £1.24

  23 Screw
Screw
MO112728705/0 Out of stock
Screw
£2.58 £2.15

  24 Washer
Washer
MO112523040/0 Out of stock
Washer
£1.49 £1.24

  25 Washer
Washer
MO112523050/0 In stock
Washer
£1.49 £1.24

  31 Throttle Control
Throttle Control
MO182000207/0 Out of stock
Throttle Control
£32.51 £27.09

  32 Screw
Screw
MO112788512/0 Out of stock
Screw
£1.49 £1.24

  33 Washer
Washer
MO112581200/0 Out of stock
Washer
£1.90 £1.58

  34 T-Handle
T-Handle
MO125394501/0 Out of stock
T-Handle
£1.49 £1.24

  36 Nut
Nut
MO112290800/0 Out of stock
Nut
£1.49 £1.24

  43 Seat Plate
Seat Plate
MO325547033/1 Out of stock
Seat Plate
£33.02 £27.52

  44 Screw
Screw
MO9997-0820-16 Out of stock
Screw
£1.49 £1.24

  45 Washer
Washer
MO112583500/0 Out of stock
Washer
£1.49 £1.24

  46 Washer
Washer
MO112523060/0 In stock
Washer
£1.49 £1.24

  47 Spring
Spring
MO125430223/2 Out of stock
Spring
£5.96 £4.97

  48 Screw
Screw
MO112789000/0 Out of stock
Screw
£1.49 £1.24

  49 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.49 £1.24

  51 Steering Wheel
Steering Wheel
MO125961216/1 Out of stock
Steering Wheel
£52.55 £43.79

  52 Locating Pin
Locating Pin
MO112620300/0 Out of stock
Locating Pin
£1.75 £1.46

  54 Cam
Cam
MO327063021/1 Out of stock
Cam
£7.55 £6.29

  55 Screw
Screw
MO112789100/0 Out of stock
Screw
£1.49 £1.24

  56 Washer
Washer
MO112523020/0 Out of stock
Washer
£1.49 £1.24

  61 Cover-Red
Cover-Red
MO325110179/1 Out of stock
Cover-Red
£93.46 £77.88

  62 Guard-R (Black)
Guard-R (Black)
MO125600033/0 Out of stock
Guard-R (Black)
£33.86 £28.22

  63 Guard-L (Black)
Guard-L (Black)
MO125600034/0 Out of stock
Guard-L (Black)
£33.86 £28.22

  71 Grass Catcher Cover-Red
Grass Catcher Cover-Red
MO325110299/0 Out of stock
Grass Catcher Cover-Red
£75.11 £62.59

  72 Screw
Screw
MO112729601/1 Out of stock
Screw
£1.48 £1.23

  73 Washer
Washer
MO112521360/0 Out of stock
Washer
£1.49 £1.24

  81 Guard-Upper
Guard-Upper
MO125600020/0 Out of stock
Guard-Upper
£11.92 £9.93

  82 Guard-Lower
Guard-Lower
MO125600021/1 Out of stock
Guard-Lower
£12.86 £10.72

  83 Screw
Screw
MO112728460/0 Out of stock
Screw
£1.49 £1.24

  84 Washer
Washer
MO112521320/0 Out of stock
Washer
£1.49 £1.24

  91 Fuel Tank
Fuel Tank
MO125735116/2 Out of stock
Fuel Tank
£113.82 £94.85

  92 Tank Cap
Tank Cap
MO125795000/1 In stock
Tank Cap
£7.45 £6.21

  101 Muffler Protection Pos 102 incl.
Muffler Protection Pos 102 incl.
MO382869025/0 Out of stock
Muffler Protection Pos 102 incl.
£120.55 £100.46

  102 Cap
Cap
MO118737860/0 Out of stock
Cap
£1.49 £1.24

  104 Hood Plate
Hood Plate
MO325547159/1 Out of stock
Hood Plate
£4.48 £3.73

  106 Hood Support
Hood Support
MO325774301/2 Out of stock
Hood Support
£17.06 £14.22

  107 Screw
Screw
MO112735403/0 Out of stock
Screw
£1.49 £1.24

  108 Pin
Pin
MO125510169/1 Out of stock
Pin
£2.30 £1.92

  109 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  110 Elastic Pin
Elastic Pin
MO9598-0002-02 Out of stock
Elastic Pin
£1.49 £1.24


Description

Mountfield 1436H Parts Diagram

Product Name - 1437 H

Model Year - 2006

Model Type - N/A

Art.N - 13-2683-11
