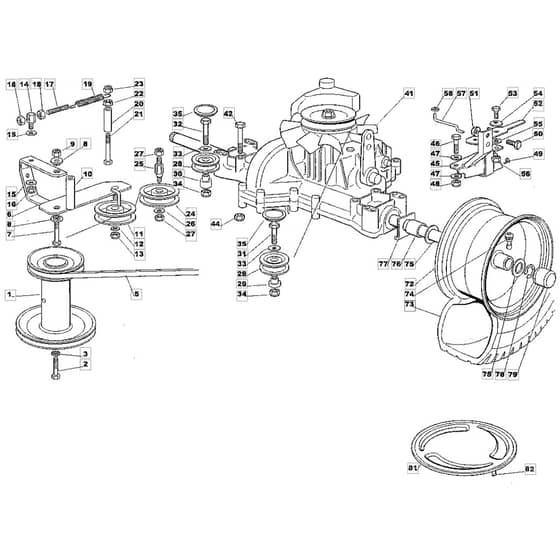

1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Transmission Diagram

1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Transmission Diagram
1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2003

Model Type - NJ 92 Hydro

Art.N - 13-2652-13

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Screw MO112737310/0
Screw
 Out of stock
£2.84 £2.37

  5 V-Belt MO135061980/0
V-Belt
 Out of stock
£40.57 £33.81

  7 Screw MO112792099/0
Screw
 In stock
£1.28 £1.07

  8 Bushing MO125038002/1
Bushing
 Out of stock
£1.49 £1.24

  11 Idler Pulley MO125601554/0
Idler Pulley
 In stock
£24.71 £20.59

  12 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  13 Lock Nut MO112155000/0
Lock Nut
 In stock
£1.49 £1.24

  14 Pivot Bolt MO125510040/2
Pivot Bolt
 Out of stock
£5.54 £4.62

  15 Washer MO325670011/0
Washer
 Out of stock
£1.49 £1.24

  17 Tie Rod MO125840005/0
Tie Rod
 Out of stock
£2.84 £2.37

  18 Nut MO112293200/0
Nut
 In stock
£1.49 £1.24

  19 Spring MO125430208/1
Spring
 Out of stock
£3.38 £2.82

  21 Screw MO112692050/0
Screw
 In stock
£1.75 £1.46

  22 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  24 Belt Roller MO125601555/0
Belt Roller
 In stock
£28.18 £23.48

  28 Belt Roller MO325601570/1
Belt Roller
 Out of stock
£23.44 £19.53

  29 Spacer MO125160030/2
Spacer
 Out of stock
£6.23 £5.19

  30 Spacer MO125160024/2
Spacer
 Out of stock
£7.98 £6.65

  31 Screw MO9997-0840-16
Screw
 Out of stock
£1.49 £1.24

  32 Screw MO9997-0850-16
Screw
 Out of stock
£3.92 £3.27

  35 Cover MO125109521/1
Cover
 Out of stock
£1.49 £1.24

  41 Transaxle (K46S) Kanzaki K46S MO118400960/0
Transaxle (K46S) Kanzaki K46S
 Out of stock
£1,394.03 £1,161.69

  42 Screw MO9997-0860-16
Screw
 Out of stock
£1.49 £1.24

  45 Support MO382785117/0
Support
 Out of stock
£36.36 £30.30

  46 Screw MO112691200/0
Screw
 Out of stock
£1.63 £1.36

  47 Washer MO9699-0090-02
Washer
 Out of stock
£1.90 £1.58

  50 Screw MO9997-0816-16
Screw
 Out of stock
£1.49 £1.24

  52 Lever MO325318157/0
Lever
 Out of stock
£5.15 £4.29

  53 Screw MO9997-0820-16
Screw
 Out of stock
£1.49 £1.24

  54 Elastic Washer MO112369500/0
Elastic Washer
 Out of stock
£1.36 £1.13

  57 Rod MO125033033/1
Rod
 Out of stock
£2.04 £1.70

  58 Starlock MO112604896/0
Starlock
 Out of stock
£1.49 £1.24

  72 Rim-Rear MO182000592/0
Rim-Rear
 Out of stock
£105.64 £88.03

  73 Tire (Turf Saver) MO382680067/0
Tire (Turf Saver)
 Out of stock
£183.20 £152.67

  74 Valve Assy. MO9545-0500-00
Valve Assy.
 Out of stock
£5.15 £4.29

  75 Washer MO125670005/2
Washer
 Out of stock
£3.92 £3.27

  76 Spacer MO125160031/0
Spacer
 Out of stock
£3.25 £2.71

  77 Washer MO325670025/0
Washer
 Out of stock
£3.92 £3.27

  78 Circlip MO112001000/0
Circlip
 Out of stock
£1.75 £1.46

  79 Hub Cap MO122110230/0
Hub Cap
 In stock
£1.49 £1.24

  81 Wheel Cover MO382110253/0
Wheel Cover
 Out of stock
£15.16 £12.63

  82 Spring MO125430209/0
Spring
 Out of stock
£4.20 £3.50
