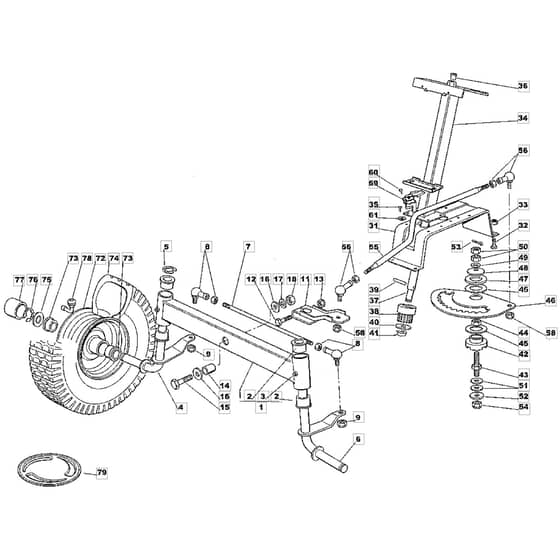

1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Steering Diagram

Name: 1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Steering Diagram
SKU: 1436h_13_2652_13_steering-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2003

Model Type - NJ 92 Hydro

Art.N - 13-2652-13

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182034008/0 Out of stock	Front Wheel Axle	£135.44 £112.87
2	MO125034002/1 Out of stock	Bushing	£3.65 £3.04
3	MO112379511/0 Out of stock	Grease Dispenser	£1.49 £1.24
4	MO382230355/1 Out of stock	Stub Axle-R	£31.02 £25.85
5	MO112001000/0 Out of stock	Circlip	£1.75 £1.46
6	MO382230357/1 Out of stock	Stub Axle-L	£35.21 £29.34
7	MO125840006/0 Out of stock	Tie Rod	£15.98 £13.32
11	MO325318142/0 Out of stock	Steering Arm	£14.50 £12.08
12	MO112692390/0 Out of stock	Screw	£1.48 £1.23
13	MO112156602/0 In stock	Lock Nut	£1.36 £1.13
14	MO125160016/1 Out of stock	Spacer	£5.96 £4.97
15	MO112692695/0 Out of stock	Screw	£1.49 £1.24
16	MO112523100/0 Out of stock	Washer	£1.90 £1.58
17	MO112587100/0 Out of stock	Washer	£1.49 £1.24
18	MO112295300/0 Out of stock	Nut	£1.49 £1.24
32	MO9997-0816-16 Out of stock	Screw	£1.49 £1.24
33	MO112155000/0 In stock	Lock Nut	£1.49 £1.24
38	MO125570000/2 Out of stock	Steering Pinion	£12.34 £10.28
39	MO9595-0262-00 Out of stock	Locating Pin	£1.63 £1.36
40	MO112521370/0 Out of stock	Washer	£1.49 £1.24
41	MO112436030/0 Out of stock	Lock Plate	£1.75 £1.46
42	MO125040617/0 Out of stock	Bushing	£10.30 £8.58
43	MO125510065/3 Out of stock	Stud Bolt	£10.02 £8.35
44	MO112295200/0 Out of stock	Nut	£1.36 £1.13
45	MO325670012/0 Out of stock	Washer	£2.30 £1.92
46	MO325735507/0 Out of stock	Steering Sector	£51.26 £42.72
47	MO325670014/1 Out of stock	Washer	£4.33 £3.61
48	MO122160400/0 In stock	Elastic Washer	£1.75 £1.46
49	MO112521360/0 Out of stock	Washer	£1.49 £1.24
51	MO322672150/0 Out of stock	Washer	£1.75 £1.46
52	MO112523080/0 In stock	Washer	£1.49 £1.24
55	MO125033025/0 Out of stock	Steering Rod	£54.18 £45.15
56	MO122746609/0 Out of stock	Ball Joint	£21.00 £17.50
60	MO112727810/0 Out of stock	Screw	£1.49 £1.24
72	MO182000590/1 Out of stock	Rim-Front	£66.37 £55.31
73	MO125122200/2 In stock	Bearing	£11.38 £9.48
74	MO125590018/0 Out of stock	Tire (Turf Saver)	£44.44 £37.03
75	MO125670005/2 Out of stock	Washer	£3.92 £3.27
77	MO122110230/0 In stock	Hub Cap	£1.49 £1.24
78	MO125950002/0 Out of stock	Valve (90º)	£5.42 £4.52
79	MO382110252/0 Out of stock	Hub Cover	£15.16 £12.63
