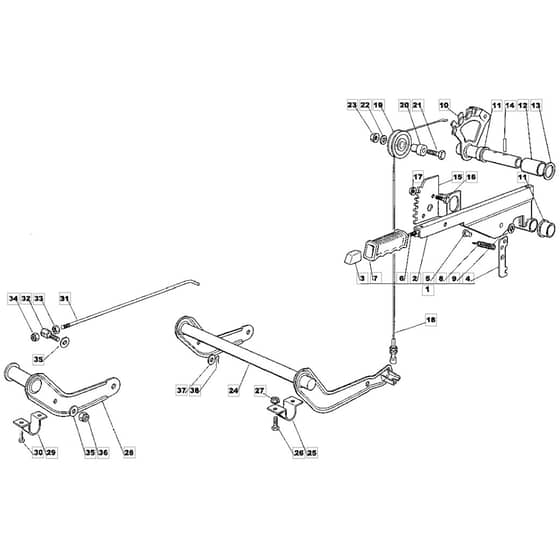

1436H - 2003 - 13-2652-13 - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2003

Model Type - NJ 92 Hydro

Art.N - 13-2652-13

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382300002/1	Lift Lever Assy	Out of stock	£58.25 £48.54
2	MO382318139/1	Lift Lever	Out of stock	£39.28 £32.73
3	MO125605000/1	Press Button	Out of stock	£2.17 £1.81
4	MO325470901/1	Dog	Out of stock	£11.10 £9.25
5	MO25510011/0	Pin	Out of stock	£1.39 £1.16
6	MO125033002/1	Push Rod	Out of stock	£4.07 £3.39
7	MO125394504/1	Handle	Out of stock	£2.44 £2.03
8	MO125430208/1	Spring	Out of stock	£3.38 £2.82
9	MO112604899/0	Locking Washer	In stock	£1.49 £1.24
10	MO382000403/0	Axle	Out of stock	£40.74 £33.95
11	MO122034523/0	Bushing	Out of stock	£1.49 £1.24
13	MO112521410/0	Washer	Out of stock	£1.75 £1.46
14	MO112620310/0	Pin	Out of stock	£1.90 £1.58
16	MO9997-0816-16	Screw	Out of stock	£1.49 £1.24
17	MO112293201/0	Nut	In stock	£1.63 £1.36
18	MO182004603/0	Lift Wire	Out of stock	£22.27 £18.56
19	MO125601557/0	Cable Pulley	Out of stock	£13.07 £10.89
20	MO125510032/0	Spacer	Out of stock	£7.51 £6.26
21	MO9997-0850-16	Screw	Out of stock	£3.92 £3.27
22	MO112523060/0	Washer	In stock	£1.49 £1.24
24	MO382000381/2	Lift Axle	Out of stock	£71.80 £59.83
25	MO325547037/2	Clamp	Out of stock	£3.25 £2.71
26	MO112791200/1	Screw	Out of stock	£1.34 £1.12
27	MO112292102/0	Nut	Out of stock	£1.63 £1.36
28	MO382318137/0	Lift Arm	Out of stock	£33.86 £28.22
29	MO325547041/1	Clamp	Out of stock	£5.15 £4.29
30	MO9847-8016-16	Screw	Out of stock	£1.90 £1.58
31	MO125033013/0	Lift Rod	Out of stock	£35.21 £29.34
32	MO125510040/2	Pivot Bolt	Out of stock	£5.54 £4.62
33	MO112293200/0	Nut	In stock	£1.49 £1.24
34	MO112155000/0	Lock Nut	In stock	£1.49 £1.24
35	MO325670011/0	Washer	Out of stock	£1.49 £1.24
37	MO9699-0090-02	Washer	Out of stock	£1.90 £1.58
38	MO124487997/0	Hair Pin	Out of stock	£1.49 £1.24
