1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1436h_299961383_moe_grasscatcher-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Grasscatcher Diagram

Description

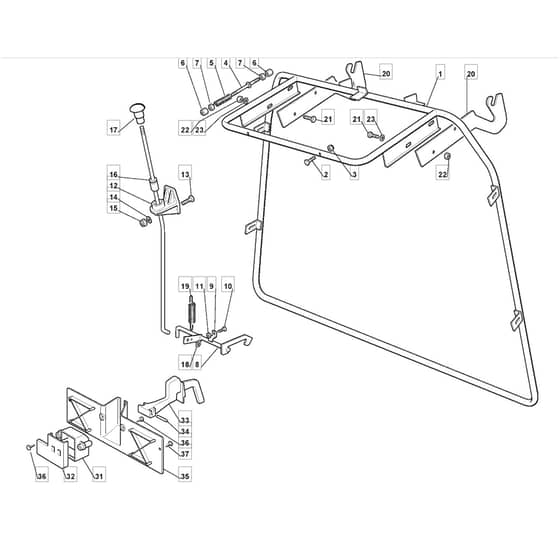

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002-2006

Model Type - JS 92 Hydro

Art.N - 299961383/MOE

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112791500/0 Out of stock	Screw	£1.49 £1.24
5	MO125430232/0 Out of stock	Spring	£1.49 £1.24
7	MO112292100/0 Out of stock	Nut	£1.36 £1.13
9	MO325774220/0 Out of stock	Bracket	£1.49 £1.24
10	MO112790781/0 Out of stock	Screw	£1.49 £1.24
11	MO112292102/0 In stock	Nut	£1.63 £1.36
13	MO112791200/1 Out of stock	Screw	£1.34 £1.12
14	MO112521330/0 Out of stock	Washer	£1.49 £1.24
15	MO112154510/0 In stock	Nut	£1.49 £1.24
16	MO182000467/0 Out of stock	Release Rod	£27.94 £23.28
17	MO382394507/0 Out of stock	Knob	£15.16 £12.63
18	MO112604898/0 Out of stock	Crown Fastener	£1.49 £1.24
19	MO125430220/0 Out of stock	Brake Spring	£3.92 £3.27
21	MO112793102/0 In stock	Screw	£1.49 £1.24
22	MO112155000/0 In stock	Nut	£1.49 £1.24
23	MO112521350/0 In stock	Washer	£1.49 £1.24
31	MO125600041/0 Out of stock	Grassc.Full Micro Protection Tcj-F	£3.77 £3.14
32	MO125600042/0 Out of stock	Grasscatcher Micro Prot Cover	£7.33 £6.11
33	MO125318124/0 Out of stock	Full Grassc. Microswtich Cover	£1.90 £1.58
34	MO112400030/0 Out of stock	Pin	£1.75 £1.46
35	MO125774251/0 Out of stock	Bracket	£16.55 £13.79
36	MO112728440/0 Out of stock	Screw	£1.36 £1.13
37	MO112735110/0 Out of stock	Screw	£1.49 £1.24
