1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Frame Diagram

Name: 1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Frame Diagram
SKU: 1436h_299961383_moe_frame-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Frame Diagram

Description

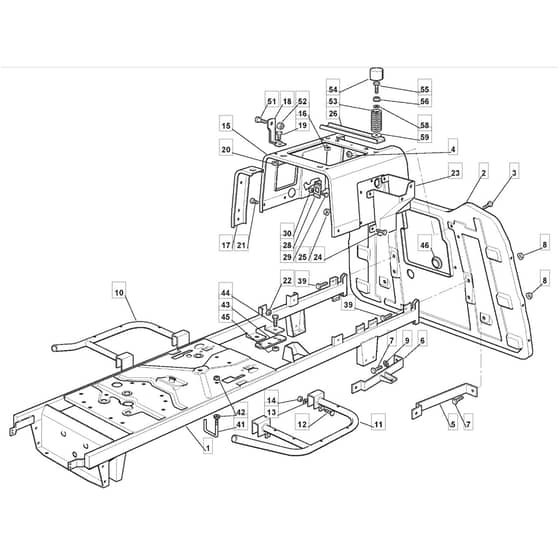

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002-2006

Model Type - JS 92 Hydro

Art.N - 299961383/MOE

Be the first to review this product

0 product questions

	Part No.	Details
9	MO112540260/0 Out of stock	Washer	£1.49 £1.24
12	MO112815240/0 Out of stock	Screw	£2.06 £1.72
13	MO112523040/0 In stock	Washer	£1.49 £1.24
14	MO112154510/0 In stock	Nut	£1.49 £1.24
16	MO112360420/0 Out of stock	Nut	£1.49 £1.24
17	MO325650055/0 Out of stock	Front Seat Stiffening	£14.39 £11.99
19	MO112792610/0 Out of stock	Screw	£1.49 £1.24
20	MO112293201/0 In stock	Nut	£1.63 £1.36
22	MO112292102/0 Out of stock	Nut	£1.63 £1.36
28	MO325755016/0 Out of stock	Bracket	£1.90 £1.58
29	MO112789000/0 Out of stock	Screw	£1.49 £1.24
30	MO112154330/0 Out of stock	Nut	£1.49 £1.24
41	MO125580019/1 Out of stock	Belt Guide Peg	£3.79 £3.16
43	MO325547101/0 Out of stock	Left Plate	£3.95 £3.29
44	MO112793102/0 In stock	Screw	£1.49 £1.24
45	MO112155000/0 In stock	Nut	£1.49 £1.24
51	MO122524970/2 Out of stock	Fulcrum Pin	£1.82 £1.52
52	MO112155010/0 Out of stock	Nut	£2.04 £1.70
53	MO125430205/1 Out of stock	Spring	£5.69 £4.74
54	MO325122000/2 Out of stock	Protection Hood	£1.49 £1.24
55	MO125943001/0 Out of stock	Screw	£1.49 £1.24
58	MO112521350/0 In stock	Washer	£1.49 £1.24
59	MO112523060/0 In stock	Washer	£1.49 £1.24
