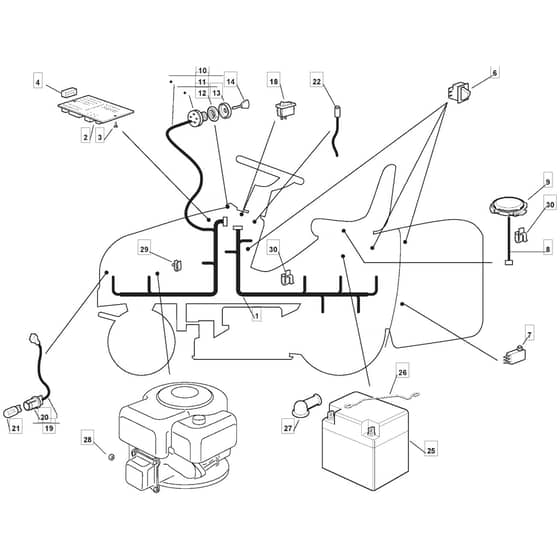

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002-2006

Model Type - JS 92 Hydro

Art.N - 299961383/MOE

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125722415/1 Out of stock	Electronic Card	£112.96 £94.13
3	MO112727810/0 Out of stock	Screw	£1.49 £1.24
4	MO133340033/0 Out of stock	Fuse 6.3 A	£4.48 £3.73
6	MO119410622/1 In stock	Microswitch	£6.37 £5.31
7	MO119410605/1 In stock	Microswitch	£37.93 £31.61
8	MO125065020/0 Out of stock	Cable	£12.40 £10.33
9	MO119410607/0 Out of stock	Microswitch	£49.54 £41.28
11	MO118450065/1 In stock	Starting Switch	£36.56 £30.47
12	MO118400861/0 Out of stock	Screwed Ring	£5.82 £4.85
13	MO118565351/0 Out of stock	Screwed Ring Protection	£6.77 £5.64
14	MO118210016/1 Out of stock	Starting Key	£12.34 £10.28
18	MO118450084/0 Out of stock	Headlight Switch	£4.33 £3.61
19	MO182040070/0 Out of stock	Lamp Holder Harness	£16.25 £13.54
20	MO133500030/0 Out of stock	Lamp Holder	£3.65 £3.04
21	MO118459100/0 Out of stock	Lamp For Lights	£2.04 £1.70
22	MO125065014/1 Out of stock	Card Allarm Signal Cable	£12.10 £10.08
25	MO118120068/0 In stock	Battery 12V 18Ah	£109.19 £90.99
26	MO125430230/0 Out of stock	Spring	£3.65 £3.04
27	MO118564861/2 Out of stock	Protection	£6.50 £5.42
28	MO112361005/0 Out of stock	Nut	£4.07 £3.39
29	MO133320506/0 Out of stock	Fairlead	£1.36 £1.13
30	MO133320504/0 Out of stock	Fairlead	£1.90 £1.58
