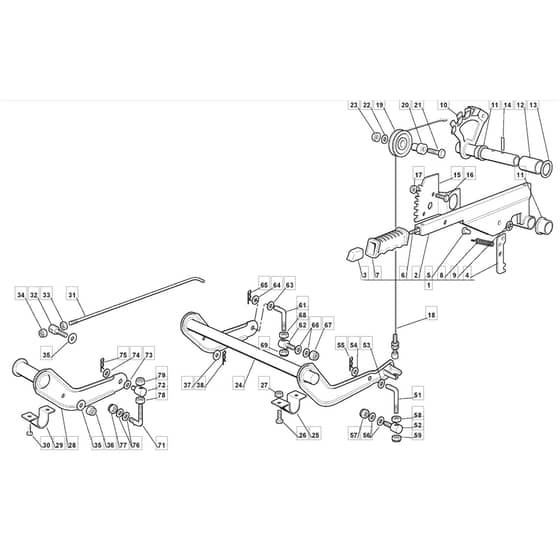

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1436h_299961383_moe_deck_lifting-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002-2006

Model Type - JS 92 Hydro

Art.N - 299961383/MOE

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382300002/1 Out of stock	Lever	£58.25 £48.54
2	MO382318139/1 Out of stock	Deck Lifting Lever	£39.28 £32.73
3	MO125605000/1 Out of stock	Button	£2.17 £1.81
5	MO125510011/1 Out of stock	Pin	£1.49 £1.24
6	MO125033002/1 Out of stock	Push Rod	£4.07 £3.39
7	MO125394504/1 Out of stock	Knob	£2.44 £2.03
8	MO125430208/1 Out of stock	Spring	£3.38 £2.82
9	MO112604899/0 In stock	Crown Fastener	£1.49 £1.24
10	MO382000403/0 Out of stock	Lifting Axle	£40.74 £33.95
11	MO122034523/0 Out of stock	Bushing	£1.49 £1.24
13	MO112521410/0 Out of stock	Washer	£1.75 £1.46
14	MO112620206/0 Out of stock	Pin	£1.36 £1.13
16	MO112792611/0 Out of stock	Screw	£1.49 £1.24
17	MO112293201/0 In stock	Nut	£1.63 £1.36
18	MO182004603/0 Out of stock	Lifting Wire	£22.27 £18.56
19	MO125601557/0 Out of stock	Pulley	£13.07 £10.89
20	MO125510032/0 Out of stock	Pin	£7.51 £6.26
21	MO112691400/0 Out of stock	Screw	£1.49 £1.24
22	MO112523060/0 In stock	Washer	£1.49 £1.24
24	MO382000381/2 Out of stock	Axle	£71.80 £59.83
25	MO325547037/2 Out of stock	Plate	£3.25 £2.71
26	MO112791011/0 Out of stock	Screw	£1.36 £1.13
27	MO112292102/0 In stock	Nut	£1.63 £1.36
28	MO382318137/0 Out of stock	Fulcrum Lever	£33.86 £28.22
29	MO325547041/1 Out of stock	Left Plate	£5.15 £4.29
30	MO112731601/0 Out of stock	Screw	£1.90 £1.58
31	MO125033013/0 Out of stock	Connecting Rod	£35.21 £29.34
32	MO125510040/2 Out of stock	Pin	£5.54 £4.62
33	MO112293200/0 In stock	Nut	£1.49 £1.24
34	MO112155000/0 In stock	Nut	£1.49 £1.24
35	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
37	MO112521350/0 In stock	Washer	£1.49 £1.24
38	MO124487997/0 Out of stock	Cotter Pin	£1.49 £1.24
51	MO125840003/2 Out of stock	Tie Rod	£11.92 £9.93
52	MO125510024/1 Out of stock	Pin	£5.96 £4.97
53	MO112521360/0 In stock	Washer	£1.49 £1.24
54	MO325670008/1 In stock	Washer	£1.49 £1.24
57	MO112156602/0 In stock	Nut	£1.36 £1.13
58	MO112295200/0 Out of stock	Nut	£1.36 £1.13
71	MO125840014/0 Out of stock	Tie Rod	£29.80 £24.83
72	MO125510069/1 Out of stock	Pin	£8.27 £6.89
