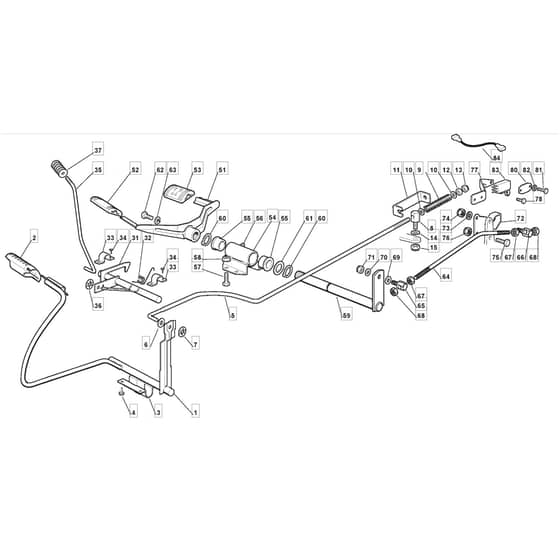

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Controls Diagram

Name: 1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Controls Diagram
SKU: 1436h_299961383_moe_controls-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2002-2006 - 299961383/MOE - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002-2006

Model Type - JS 92 Hydro

Art.N - 299961383/MOE

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500017/0 Out of stock	Pedal	£47.10 £39.25
2	MO125110267/0 Out of stock	Clamp Cover	£3.65 £3.04
3	MO325547039/0 Out of stock	Right Plate	£4.33 £3.61
7	MO112604899/0 Out of stock	Crown Fastener	£1.49 £1.24
8	MO125510067/1 Out of stock	Pin	£4.20 £3.50
9	MO125430236/1 Out of stock	Spring	£1.49 £1.24
10	MO112521360/0 In stock	Washer	£1.49 £1.24
11	MO325774275/1 Out of stock	Clamp	£3.38 £2.82
12	MO112295200/0 Out of stock	Nut	£1.36 £1.13
13	MO112156602/0 In stock	Nut	£1.36 £1.13
14	MO112521350/0 In stock	Washer	£1.49 £1.24
15	MO112155000/0 In stock	Nut	£1.49 £1.24
31	MO382000361/0 Out of stock	Axle	£25.49 £21.24
32	MO125430234/0 Out of stock	Spring	£8.40 £7.00
33	MO325547049/0 Out of stock	Plate	£2.98 £2.48
34	MO112731601/0 Out of stock	Screw	£1.90 £1.58
35	MO125033043/0 Out of stock	Rod	£19.91 £16.59
36	MO112604898/0 Out of stock	Crown Fastener	£1.49 £1.24
37	MO127395050/1 Out of stock	Knob	£2.84 £2.37
51	MO382500008/0 Out of stock	Drive Pedal	£56.88 £47.40
52	MO125110265/0 Out of stock	Clamp Cover	£8.15 £6.79
53	MO125110266/0 Out of stock	Clamp Cover	£10.84 £9.03
55	MO125034002/1 Out of stock	Bushing	£3.65 £3.04
56	MO112379511/0 Out of stock	Grease Dispenser	£1.49 £1.24
57	MO112791011/0 Out of stock	Screw	£1.36 £1.13
58	MO112292102/0 Out of stock	Nut	£1.63 £1.36
60	MO112609260/0 Out of stock	Seeger	£1.75 £1.46
61	MO322672153/0 Out of stock	Antifriction Washer	£1.49 £1.24
63	MO112583501/0 Out of stock	Grower	£1.49 £1.24
64	MO125033042/0 Out of stock	Rod	£46.06 £38.38
65	MO125510054/1 Out of stock	Pin	£3.92 £3.27
66	MO125510066/0 Out of stock	Pin	£6.91 £5.76
67	MO112293200/0 Out of stock	Nut	£1.49 £1.24
70	MO112521340/0 Out of stock	Washer	£1.36 £1.13
71	MO112154510/0 In stock	Nut	£1.49 £1.24
73	MO112523040/0 In stock	Washer	£1.49 £1.24
75	MO112791213/1 Out of stock	Screw	£1.49 £1.24
77	MO325774289/0 Out of stock	Clamp	£9.17 £7.64
78	MO112735110/0 Out of stock	Screw	£1.49 £1.24
80	MO327546019/0 Out of stock	Neutral Switch Fixing Plate	£1.36 £1.13
81	MO112735602/0 Out of stock	Screw	£1.49 £1.24
82	MO112540020/0 Out of stock	Washer	£1.49 £1.24
83	MO119410609/1LC Out of stock	Microswitch	£26.14 £21.78
84	MO125065025/0 Out of stock	Cable	£8.27 £6.89
