1436H - 2002 - 13-2652-12 - Mountfield Ride On Mower Transmission Diagram

Name: 1436H - 2002 - 13-2652-12 - Mountfield Ride On Mower Transmission Diagram
SKU: 1436h_13_2652_12_transmission-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436H - 2002 - 13-2652-12 - Mountfield Ride On Mower Transmission Diagram

Description

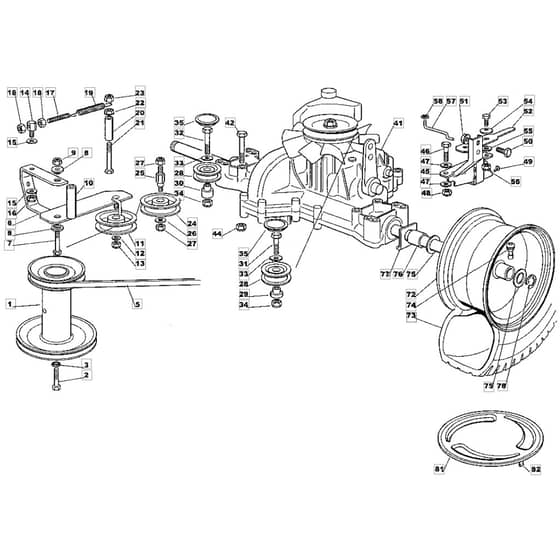

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002

Model Type - NJ 92 Hydro

Art.N - 13-2652-12

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112737310/0 Out of stock	Screw	£2.84 £2.37
5	MO135061980/0 Out of stock	V-Belt	£40.57 £33.81
7	MO112792099/0 In stock	Screw	£1.28 £1.07
8	MO125038002/1 Out of stock	Bushing	£1.49 £1.24
11	MO125601554/0 In stock	Idler Pulley	£24.71 £20.59
12	MO112523060/0 In stock	Washer	£1.49 £1.24
13	MO112155000/0 In stock	Lock Nut	£1.49 £1.24
14	MO125510040/2 Out of stock	Pivot Bolt	£5.54 £4.62
15	MO325670011/0 Out of stock	Washer	£1.49 £1.24
17	MO125840005/0 Out of stock	Tie Rod	£2.84 £2.37
18	MO112293200/0 In stock	Nut	£1.49 £1.24
19	MO125430208/1 Out of stock	Spring	£3.38 £2.82
21	MO112692050/0 In stock	Screw	£1.75 £1.46
22	MO112293201/0 In stock	Nut	£1.63 £1.36
24	MO125601555/0 In stock	Belt Roller	£28.18 £23.48
28	MO325601570/1 Out of stock	Belt Roller	£23.44 £19.53
29	MO125160030/2 Out of stock	Spacer	£6.23 £5.19
30	MO125160024/2 Out of stock	Spacer	£7.98 £6.65
31	MO9997-0840-16 Out of stock	Screw	£1.49 £1.24
32	MO9997-0850-16 Out of stock	Screw	£3.92 £3.27
35	MO125109521/1 Out of stock	Cover	£1.49 £1.24
41	MO118400960/0 Out of stock	Transaxle (K46S) Kanzaki K46S	£1,394.03 £1,161.69
42	MO9997-0860-16 Out of stock	Screw	£1.49 £1.24
45	MO382785117/0 Out of stock	Support	£36.36 £30.30
46	MO112691200/0 Out of stock	Screw	£1.63 £1.36
47	MO9699-0090-02 Out of stock	Washer	£1.90 £1.58
50	MO9997-0816-16 Out of stock	Screw	£1.49 £1.24
52	MO325318157/0 Out of stock	Lever	£5.15 £4.29
53	MO9997-0820-16 Out of stock	Screw	£1.49 £1.24
54	MO112369500/0 Out of stock	Elastic Washer	£1.36 £1.13
57	MO125033033/1 Out of stock	Rod	£2.04 £1.70
58	MO112604896/0 Out of stock	Starlock	£1.49 £1.24
72	MO182000592/0 Out of stock	Rim-Rear	£105.64 £88.03
73	MO382680067/0 Out of stock	Tire (Turf Saver)	£183.20 £152.67
74	MO9545-0500-00 Out of stock	Valve Assy.	£5.15 £4.29
75	MO125670005/2 Out of stock	Washer	£3.92 £3.27
76	MO125160031/0 Out of stock	Spacer	£3.25 £2.71
77	MO325670025/0 Out of stock	Washer	£3.92 £3.27
78	MO112001000/0 Out of stock	Circlip	£1.75 £1.46
81	MO382110253/0 Out of stock	Wheel Cover	£15.16 £12.63
82	MO125430209/0 Out of stock	Spring	£4.20 £3.50
