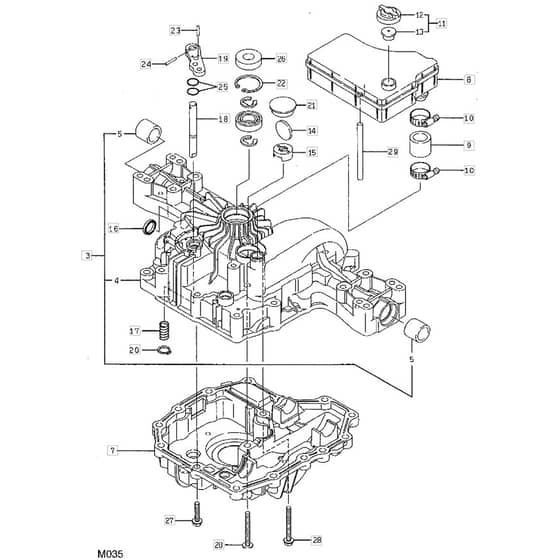

1436H - 2002 - 13-2652-12 - Mountfield Ride On Mower K46 Transaxle Case Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002

Model Type - NJ 92 Hydro

Art.N - 13-2652-12

Be the first to review this product

0 product questions

	Part No.	Details
8	TT1A646024460 Out of stock	Reservoir Tank K46F	£43.20 £36.00
11	MO1139-1595-01 Out of stock	Vent Valve Assy Pos 12 - 13 incl. _ K46F	£16.74 £13.95
14	MO1139-1150-01 Out of stock	Magnet K46F	£7.93 £6.61
16	TT1A646024440 Out of stock	Seal Ring K46F	£7.57 £6.31
19	MO1139-1189-01 Out of stock	By-Pass Lever K46F	£8.84 £7.37
20	MO1139-1161-01 Out of stock	Ring K46F	£1.49 £1.24
21	MO1139-1735-01 Out of stock	Bore Plug K46F	£9.25 £7.71
22	MO1139-1104-01 Out of stock	Snap Ring K46F	£4.36 £3.63
23	MO1139-1279-01 Out of stock	Pin K46F	£4.36 £3.63
25	MO1139-1117-01 Out of stock	O-Ring K46F	£4.36 £3.63
26	MO1139-1119-01 Out of stock	Seal 15357 K46F	£5.87 £4.89
28	MO1139-1295-01 Out of stock	Screw K46F	£4.75 £3.96
