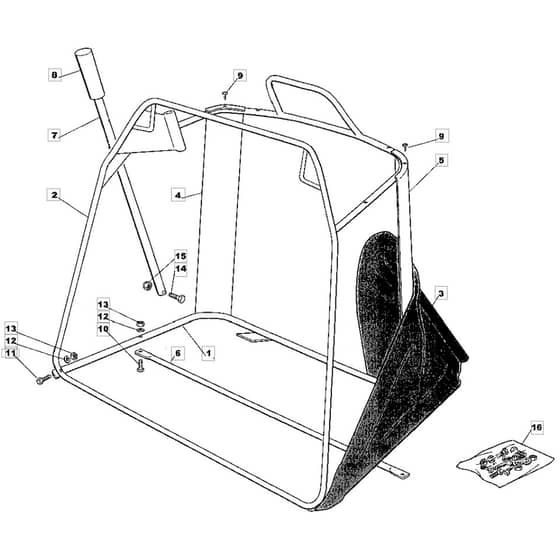

1436H - 2002 - 13-2652-12 - Mountfield Ride On Mower Grasscatcher Mobile Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436 H

Model Year - 2002

Model Type - NJ 92 Hydro

Art.N - 13-2652-12

Be the first to review this product

0 product questions

	Part No.	Details
2	MO382800014/1 Out of stock	Frame-Upper	£152.77 £127.31
3	MO182105998/0 Out of stock	Grass Bag	£83.98 £69.98
4	MO325032005/0 Out of stock	Right Angular Support	£29.28 £24.40
7	MO125869029/1 Out of stock	Lever	£28.44 £23.70
8	MO125394508/0 Out of stock	Handle	£4.87 £4.06
9	MO112729601/1 Out of stock	Screw	£1.48 £1.23
10	MO112792099/0 In stock	Screw	£1.28 £1.07
12	MO112581200/0 Out of stock	Washer	£1.90 £1.58
13	MO112292100/0 Out of stock	Nut	£1.36 £1.13
15	MO112154510/0 In stock	Lock Nut	£1.49 £1.24
16	MO382180016/1 Out of stock	Outfit. Screws Pos 9 - 15 incl.	£19.63 £16.36
