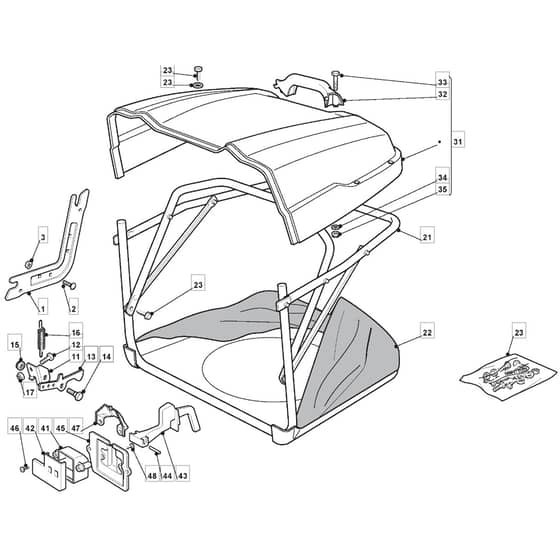

1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1435h_299964333_bm8_grasscatcher-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1435H Parts Diagram

Product Name - 1435 H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299964333/BM8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293201/0 In stock	Nut	£1.61 £1.34
3	MO112818690/0 Out of stock	Screw	£1.70 £1.42
11	MO325755031/2 Out of stock	Bracket From 01-9-2010	£4.84 £4.03
12	MO112789000/0 Out of stock	Screw	£1.48 £1.23
13	MO325774315/1 Out of stock	Bracket From 01-9-2010	£3.82 £3.18
14	MO125510080/2 Out of stock	Pin	£1.34 £1.12
15	MO112292102/0 Out of stock	Nut	£1.61 £1.34
16	MO122450432/0 In stock	Spring	£1.87 £1.56
17	MO112154330/0 Out of stock	Nut	£1.48 £1.23
21	MO382800110/0 Out of stock	Front Frame	£165.50 £137.92
22	MO182105974/0 Out of stock	Grasscatcher	£133.67 £111.39
23	MO382180047/0 Out of stock	Screw	£10.19 £8.49
32	MO127394000/0 Out of stock	Handle	£3.35 £2.79
33	MO112789020/0 Out of stock	Screw	£1.61 £1.34
34	MO112523020/0 Out of stock	Washer	£1.48 £1.23
41	MO125600041/0 Out of stock	Grassc.Full Micro Protection Tcj-F	£2.28 £1.90
42	MO125600042/0 Out of stock	Grasscatcher Micro Prot Cover	£2.81 £2.34
43	MO125318124/0 Out of stock	Full Grassc. Microswtich Cover	£1.87 £1.56
44	MO112400030/0 Out of stock	Pin	£1.74 £1.45
45	MO325785272/1 Out of stock	Micro Protection	£2.04 £1.70
46	MO112728440/0 Out of stock	Screw	£1.34 £1.12
47	MO125600048/0 Out of stock	Empty Micro Grassc.Protection Cover	£1.48 £1.23
48	MO112735110/0 Out of stock	Flanged Self-Tap Screw 4.8 X 13	£1.48 £1.23
