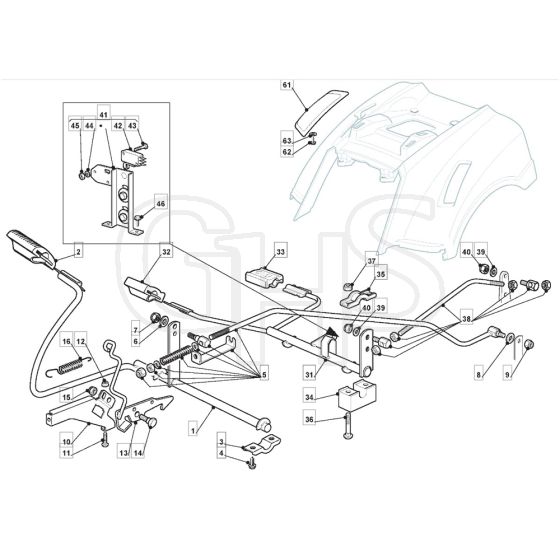

1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower Controls Diagram

Name: 1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower Controls Diagram
SKU: 1435h_299964333_bm8_controls-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1435H Parts Diagram

Product Name - 1435 H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299964333/BM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500029/1 Out of stock	Pedal	£63.66 £53.05
2	MO325110416/0 Out of stock	Clamp Cover From 01-9-2010	£8.53 £7.11
2	MO125110267/0 Out of stock	Clamp Cover To 31-8-2010	£3.61 £3.01
3	MO327546015/2 Out of stock	Plate	£1.66 £1.38
4	MO112729601/1 Out of stock	Screw	£1.48 £1.23
5	MO382000542/1 Out of stock	Rod	£38.20 £31.83
6	MO112521350/0 In stock	Washer	£1.48 £1.23
10	MO325785261/0 Out of stock	Support	£5.22 £4.35
11	MO112815200/0 In stock	Screw	£1.48 £1.23
12	MO112292102/0 Out of stock	Nut	£1.61 £1.34
13	MO382000531/0 Out of stock	Rod	£24.19 £20.16
14	MO122524970/2 Out of stock	Fulcrum Pin	£1.80 £1.50
15	MO112155000/0 In stock	Nut	£1.48 £1.23
16	MO125430213/0 Out of stock	Spring	£1.61 £1.34
31	MO382000605/1 Out of stock	Gear Control Axle From 01-9-2010	£64.93 £54.11
31	MO382000383/1 Out of stock	Gear Control Axle To 31-8-2010	£64.93 £54.11
32	MO325110274/0 Out of stock	Clamp Cover Front To 31-8-2010	£5.60 £4.67
32	MO325110417/0 Out of stock	Clamp Cover Front From 01-9-2010	£8.53 £7.11
33	MO325110418/0 Out of stock	Clamp Cover Rear From 01-9-2010	£8.53 £7.11
33	MO325110331/0 Out of stock	Clamp Cover Rear To 31-8-2010	£6.62 £5.52
34	MO325785185/0 Out of stock	Support	£3.56 £2.97
36	MO112815245/0 Out of stock	Screw	£1.48 £1.23
37	MO112154510/0 In stock	Nut	£1.48 £1.23
38	MO382000543/0 Out of stock	Rod	£29.28 £24.40
39	MO112523040/0 In stock	Washer	£1.48 £1.23
41	MO382394853/0LC Out of stock	Switch Ass.Y	£53.47 £44.56
42	MO119410609/1LC Out of stock	Microswitch	£25.85 £21.54
43	MO112735602/0 Out of stock	Screw	£1.48 £1.23
44	MO112581100/0 Out of stock	Grower	£1.27 £1.06
45	MO112290791/0 Out of stock	Nut	£1.48 £1.23
46	MO112735110/0 Out of stock	Screw	£1.48 £1.23
61	MO325207171/1 Out of stock	Cover (Hydro)	£6.49 £5.41
62	MO112735402/0 In stock	Screw	£1.48 £1.23
63	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.48 £1.23
