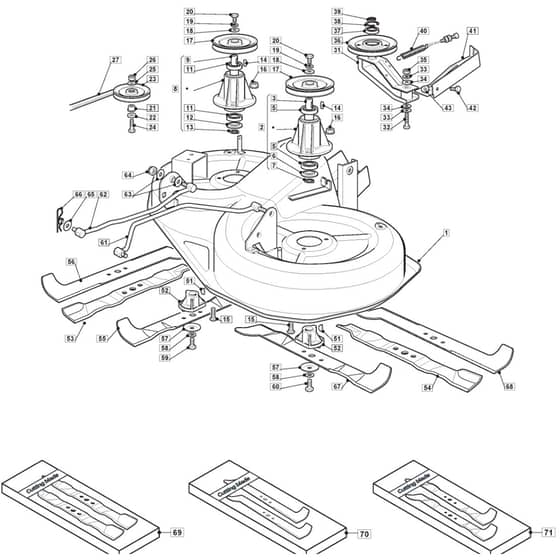

1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower 92cm Deck Diagram

1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower 92cm Deck Diagram
1435H - 2008 - 299964333/BM8 - Mountfield Ride On Mower 92cm Deck Diagram

Description

Mountfield 1435H Parts Diagram

Product Name - 1435 H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299964333/BM8

Ref. Img. Part No. Details
  1 Cutting Plate Black
Cutting Plate Black
MO382564075/1 In stock
Cutting Plate Black
£413.75 £344.79

  2 Main Blade Shaft Ass.Y
Main Blade Shaft Ass.Y
MO382207202/1LC Out of stock
Main Blade Shaft Ass.Y
£101.84 £84.87

  3 Main Blade Shaft
Main Blade Shaft
MO125020834/0 Out of stock
Main Blade Shaft
£34.62 £28.85

  8 Secondary Blade Shaft Ass.Y
Secondary Blade Shaft Ass.Y
MO382207203/1LC Out of stock
Secondary Blade Shaft Ass.Y
£120.95 £100.79

  9 Secondary Blade Shaft
Secondary Blade Shaft
MO125020803/0 Out of stock
Secondary Blade Shaft
£34.62 £28.85

  11 Bearing
Bearing
MO119216047/0 In stock
Bearing
£15.00 £12.50

  12 Dust Cover Disc
Dust Cover Disc
MO325160501/1 Out of stock
Dust Cover Disc
£1.66 £1.38

  13 Seeger
Seeger
MO112609260/0 Out of stock
Seeger
£1.74 £1.45

  14 Feather
Feather
MO112139480/0 In stock
Feather
£1.61 £1.34

  15 Screw From 01-9-2016
Screw From 01-9-2016
MO9959-0825-16 Out of stock
Screw From 01-9-2016
£1.66 £1.38

  15 Screw To 31-8-2016
Screw To 31-8-2016
MO112818700/0 In stock
Screw To 31-8-2016
£1.48 £1.23

  16 Nut
Nut
MO112154210/0 In stock
Nut
£1.61 £1.34

  17 Pulley
Pulley
MO125601563/0 Out of stock
Pulley
£41.51 £34.59

  18 Washer
Washer
MO125670007/0 Out of stock
Washer
£1.87 £1.56

  19 Grower
Grower
MO112583500/0 Out of stock
Grower
£1.48 £1.23

  20 Screw
Screw
MO112793102/0 In stock
Screw
£1.48 £1.23

  21 Spacer From 01-9-2013
Spacer From 01-9-2013
MO125160079/0 Out of stock
Spacer From 01-9-2013
£3.89 £3.24

  21 Spacer
Spacer
MO125160007/1 Out of stock
Spacer
£3.08 £2.57

  23 Pulley Bearing hole ø15 From 01-9-2013
Pulley Bearing hole ø15 From 01-9-2013
MO325601599/0 In stock
Pulley Bearing hole ø15 From 01-9-2013
£18.07 £15.06

  23 Pulley Bearing hole ø16 To 31-8-2013
Pulley Bearing hole ø16 To 31-8-2013
MO125601555/0 In stock
Pulley Bearing hole ø16 To 31-8-2013
£27.85 £23.21

  24 Screw
Screw
MO112691115/0 Out of stock
Screw
£1.48 £1.23

  25 Washer
Washer
MO112523060/0 In stock
Washer
£1.48 £1.23

  26 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  27 Drive Belt
Drive Belt
MO135061508/0LC In stock
Drive Belt
£62.94 £52.45

  31 Lever
Lever
MO382318141/2 Out of stock
Lever
£35.65 £29.71

  32 Screw
Screw
MO112691700/0 Out of stock
Screw
£1.74 £1.45

  33 Washer
Washer
MO112523070/0 Out of stock
Washer
£1.48 £1.23

  34 Antifriction Washer
Antifriction Washer
MO322672152/0 Out of stock
Antifriction Washer
£1.52 £1.27

  36 Pulley
Pulley
MO125601564/1 Out of stock
Pulley
£42.85 £35.71

  37 Bearing
Bearing
MO119216048/0 In stock
Bearing
£17.41 £14.51

  38 Seeger
Seeger
MO112610800/0 Out of stock
Seeger
£1.61 £1.34

  39 Seeger
Seeger
MO112609200/0 Out of stock
Seeger
£1.48 £1.23

  40 Wire
Wire
MO382004618/0 In stock
Wire
£21.38 £17.82

  41 Clamp
Clamp
MO382774215/3 Out of stock
Clamp
£30.55 £25.46

  42 Screw
Screw
MO112792611/0 Out of stock
Screw
£1.48 £1.23

  43 Nut
Nut
MO112293201/0 In stock
Nut
£1.61 £1.34

  51 Key
Key
MO112139100/0 In stock
Key
£1.48 £1.23

  52 Blade Holder
Blade Holder
MO125463200/0 In stock
Blade Holder
£9.04 £7.53

  53 Right Mulching Blade
Right Mulching Blade
MO182004352/0 Out of stock
Right Mulching Blade
£19.61 £16.34

  54 Left Mulching. Blade
Left Mulching. Blade
MO181004346/3 In stock
Left Mulching. Blade
£14.06 £11.72

  55 Right Mulching Blade. Winged
Right Mulching Blade. Winged
MO182004354/0 In stock
Right Mulching Blade. Winged
£24.19 £20.16

  56 Right Blade. Winged
Right Blade. Winged
MO182004345/1 In stock
Right Blade. Winged
£23.04 £19.20

  57 Elastic Disc
Elastic Disc
MO122160400/0 In stock
Elastic Disc
£1.74 £1.45

  58 Washer
Washer
MO112523080/0 In stock
Washer
£1.48 £1.23

  59 Screw
Screw
MO112735695/1 In stock
Screw
£3.61 £3.01

  60 Screw
Screw
MO112735694/0 In stock
Screw
£1.87 £1.56

  61 Equalizer Rod
Equalizer Rod
MO382000535/0LC Out of stock
Equalizer Rod
£33.10 £27.58

  62 Equalizer Rod
Equalizer Rod
MO382000533/0LC Out of stock
Equalizer Rod
£33.10 £27.58

  63 Washer
Washer
MO325670008/1 Out of stock
Washer
£1.66 £1.38

  64 Nut
Nut
MO112156602/0 In stock
Nut
£1.34 £1.12

  66 Cotter Pin
Cotter Pin
MO124487998/0 Out of stock
Cotter Pin
£1.48 £1.23

  67 Left Mulching Blade. Winged
Left Mulching Blade. Winged
MO182004353/0 In stock
Left Mulching Blade. Winged
£24.19 £20.16

  68 Left Blade. Winged
Left Blade. Winged
MO182004344/1 In stock
Left Blade. Winged
£23.04 £19.20

  69 Mulching Blades. Right And Left Stiga Packed into 181004346.3 + 182004352.0
Mulching Blades. Right And Left Stiga Packed into 181004346.3 + 182004352.0
MO1134-9223-01 Out of stock
Mulching Blades. Right And Left Stiga Packed into 181004346.3 + 182004352.0
£42.85 £35.71

  70 Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0
Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0
MO1134-9222-01 Out of stock
Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0
£60.25 £50.21

  71 Winged Blade 92cm.36
Winged Blade 92cm.36
MO1134-9224-01 Out of stock
Winged Blade 92cm.36" [Stiga Pack]
£58.92 £49.10


Description

Mountfield 1435H Parts Diagram

Product Name - 1435 H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299964333/BM8
