1435H - 2008 - 299954333/M08 - Mountfield Ride On Mower Engine Diagram

Name: 1435H - 2008 - 299954333/M08 - Mountfield Ride On Mower Engine Diagram
SKU: 1435h_299954333_m08_engine-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1435H - 2008 - 299954333/M08 - Mountfield Ride On Mower Engine Diagram

Description

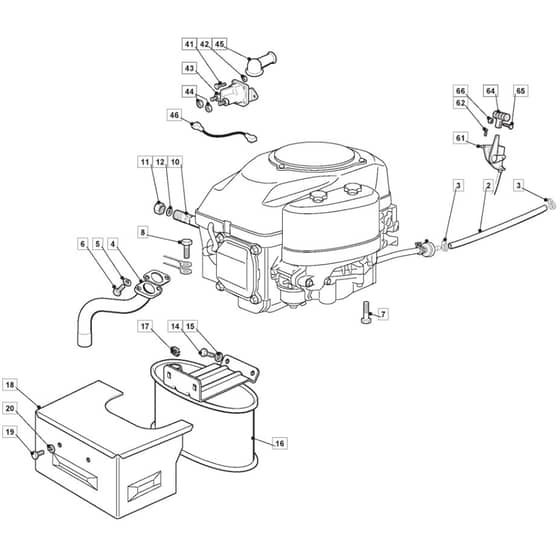

Mountfield 1435H Parts Diagram

Product Name - 1435 H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299954333/M08

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869057/0 Out of stock	Connecting Tube	£19.36 £16.13
3	MO118375062/0 In stock	Fair Led	£1.74 £1.45
4	MO118738231/2 Out of stock	Exhaust Pipe	£20.89 £17.41
6	MO112737450/0 Out of stock	Screw	£3.61 £3.01
7	MO112735108/1 In stock	Screw	£2.00 £1.67
8	MO112735599/0 Out of stock	Screw	£1.48 £1.23
10	MO127598060/0 Out of stock	Oil Discharge Extension	£7.76 £6.47
11	MO118737849/0 Out of stock	Plug	£2.41 £2.01
12	MO118401001/1 Out of stock	Oil Seal	£1.48 £1.23
14	MO112793102/0 In stock	Screw	£1.48 £1.23
15	MO112540260/0 Out of stock	Washer	£1.48 £1.23
16	MO182750010/0 Out of stock	Muffler	£120.95 £100.79
17	MO112360425/0 Out of stock	Nut	£1.74 £1.45
18	MO382598039/0 Out of stock	Guard	£64.93 £54.11
19	MO112792611/0 Out of stock	Screw	£1.48 £1.23
20	MO112583500/0 Out of stock	Grower	£1.48 £1.23
41	MO112791213/1 Out of stock	Screw	£1.48 £1.23
42	MO112292102/0 In stock	Nut	£1.61 £1.34
43	MO118736113/0 In stock	Starter Relay	£36.16 £30.13
44	MO9743-5121-32 Out of stock	Nut To 31-8-2015	£1.40 £1.17
44	MO112361005/0 Out of stock	Nut From 01-9-2015	£4.02 £3.35
45	MO118564864/1 Out of stock	Protection To 31-8-2017	£5.63 £4.69
45	MO118564861/2 Out of stock	Protection From 01-9-2017	£6.43 £5.36
46	MO125065017/0 Out of stock	Cable	£8.98 £7.48
61	MO182000212/0 Out of stock	Accelerator	£23.04 £19.20
62	MO125943012/0 Out of stock	Screw	£1.48 £1.23
64	MO325592000/1 Out of stock	Knob	£1.91 £1.59
65	MO112726388/0 Out of stock	Screw	£1.48 £1.23
66	MO112290800/0 Out of stock	Hexagon Nut M4 Uni 5588 Acc.6S	£1.48 £1.23
