1430M - 2012-2013 - 2T2010483/M11 - Mountfield Ride On Mower TRE0701 Cylinder Diagram

Description

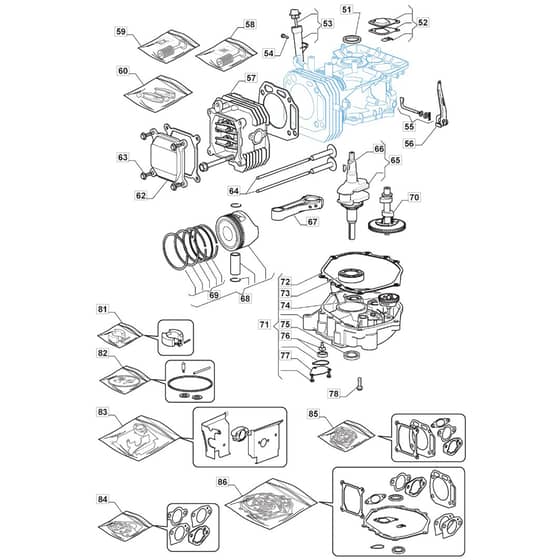

Mountfield 1430M Parts Diagram

Product Name - 1430

Model Year - 2012-2013

Model Type - MP 84

Art.N - 2T2010483/M11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551418/0 Out of stock	Oil Seal	£11.38 £9.48
52	MO118550446/0 Out of stock	Gasket Assy	£20.42 £17.02
53	MO118550205/2 Out of stock	Oil Filler Assy	£26.78 £22.32
54	MO112674701/0 Out of stock	Screw	£1.48 £1.23
55	MO118550226/0 Out of stock	Shaft. Governor Arm Assy	£10.31 £8.59
57	MO118550233/0 Out of stock	Cylinder Head Assy	£227.64 £189.70
58	MO118550240/0 Out of stock	Intake Valve Assy	£37.49 £31.24
59	MO118550241/0 Out of stock	Exhaust Valve Assy	£34.81 £29.01
60	MO118550334/0 Out of stock	Valve Arm Set	£17.41 £14.51
63	MO112791200/1 Out of stock	Screw	£1.34 £1.12
64	MO118550242/1 Out of stock	Push Rods Assy	£5.63 £4.69
65	MO118550232/0 Out of stock	Crankshaft	£187.46 £156.22
66	MO118550288/0 Out of stock	Woodruff Key	£5.89 £4.91
67	MO118550231/1 Out of stock	Connecting Rod Assy	£53.57 £44.64
68	MO118550329/1 Out of stock	Piston Assy	£91.06 £75.88
69	MO118550447/0 Out of stock	Piston. Ring Set	£29.46 £24.55
70	MO118550243/0 Out of stock	Camshaft Assy	£106.45 £88.71
71	MO118550445/0 Out of stock	Crankcase Cover Assy	£180.77 £150.64
72	MO118550355/1 Out of stock	Crankcase Gasket	£16.07 £13.39
73	MO118550227/0 Out of stock	Ball Bearing	£20.35 £16.96
74	MO118550347/0 Out of stock	Speed Governor Assy	£18.74 £15.62
76	MO118550224/1 Out of stock	Oil Pump Assy	£19.88 £16.57
77	MO118550223/0 Out of stock	Oli Pump Cover	£5.35 £4.46
78	MO112691115/0 Out of stock	Screw	£1.48 £1.23
81	MO118550440/0 Out of stock	Kit Repair. Carburettor	£9.91 £8.26
82	MO118550442/0 Out of stock	Carburettor Gasket Set	£15.00 £12.50
83	MO118550220/0 Out of stock	Engine Guard Assy	£30.80 £25.67
84	MO118550217/1 Out of stock	Gasket Set	£10.31 £8.59
85	MO118550449/0 In stock	Cylinder Head Gasket Set	£46.87 £39.06
86	MO118550450/1 Out of stock	Engine Gasket Set	£87.04 £72.53
