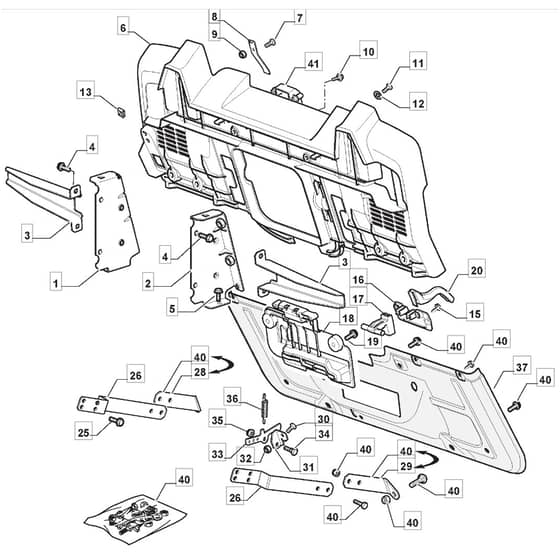

Mountfield 1430M Parts Diagram

Product Name - 1430

Model Year - 2012-2013

Model Type - MP 84

Art.N - 2T2010483/M11

Ref. Img. Part No. Details
  1 Right Clamp Bracket
Right Clamp Bracket
MO325774501/0 Out of stock
Right Clamp Bracket
£12.73 £10.61

  2 Left Clamp Bracket
Left Clamp Bracket
MO325774507/0 Out of stock
Left Clamp Bracket
£12.73 £10.61

  3 Stiffening
Stiffening
MO325650163/0 Out of stock
Stiffening
£10.44 £8.70

  6 Rear Plate. Upper Part
Rear Plate. Upper Part
MO325547299/2 Out of stock
Rear Plate. Upper Part
£43.28 £36.07

  8 Spring
Spring
MO127430600/0 Out of stock
Spring
£2.68 £2.23

  10 Screw
Screw
MO125943010/0 In stock
Screw
£1.87 £1.56

  11 Screw
Screw
MO112789008/0 In stock
Screw
£1.74 £1.45

  12 Washer
Washer
MO112521320/0 Out of stock
Washer
£1.48 £1.23

  13 Plate
Plate
MO112437503/0 Out of stock
Plate
£1.87 £1.56

  15 Screw
Screw
MO112728686/0 In stock
Screw
£1.48 £1.23

  16 Protection Cover
Protection Cover
MO325109522/0 Out of stock
Protection Cover
£2.42 £2.02

  17 Gearshift
Gearshift
MO325318276/0 In stock
Gearshift
£3.31 £2.76

  18 Support
Support
MO325785428/0 Out of stock
Support
£9.17 £7.64

  20 Lever
Lever
MO325318277/0 In stock
Lever
£1.66 £1.38

  25 Screw
Screw
MO125943009/0 Out of stock
Screw
£1.55 £1.29

  26 Clamp
Clamp
MO325774521/0 Out of stock
Clamp
£8.78 £7.32

  28 Stiffening
Stiffening
MO325650151/0 Out of stock
Stiffening
£7.76 £6.47

  29 Stiffening
Stiffening
MO325650153/0 Out of stock
Stiffening
£7.76 £6.47

  31 Bracket
Bracket
MO325755061/0 Out of stock
Bracket
£2.42 £2.02

  32 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.48 £1.23

  33 Clamp
Clamp
MO325774533/0 Out of stock
Clamp
£4.45 £3.71

  34 Pin
Pin
MO125510080/2 Out of stock
Pin
£1.34 £1.12

  35 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  36 Spring
Spring
MO125430282/1 Out of stock
Spring
£1.74 £1.45

  37 Rear Plate. Lower Part
Rear Plate. Lower Part
MO382547071/1 Out of stock
Rear Plate. Lower Part
£108.22 £90.18

  40 Outfit. Screws
Outfit. Screws
MO382180146/0 Out of stock
Outfit. Screws
£31.82 £26.52

  41 Micro Protection
Micro Protection
MO325600107/0 Out of stock
Micro Protection
£4.72 £3.93
