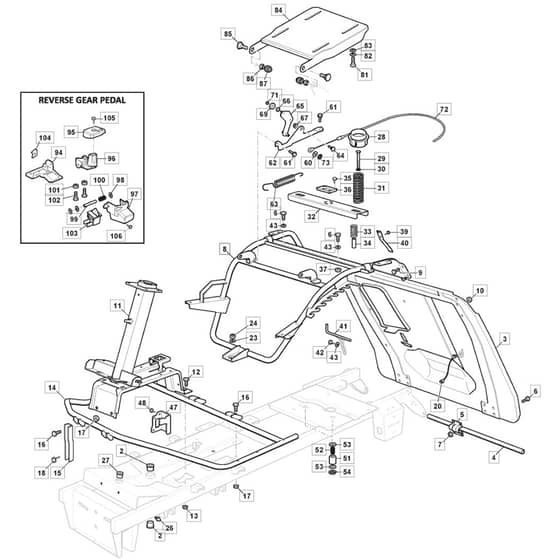

1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Frame Diagram

Name: 1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Frame Diagram
SKU: 1328h_2t0210483_m22_frame-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Frame Diagram

Description

Mountfield 1328H Parts Diagram

Product Name - MTF 72H

Model Year - 2022

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M22

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
3	MO384545057/3 Out of stock	Rear Plate	£159.13 £132.61
4	MO127037000/1 Out of stock	Rear Plate Fulcrum	£8.44 £7.03
5	MO325547012/1 Out of stock	Plate	£3.95 £3.29
7	MO112292102/0 In stock	Nut	£1.61 £1.34
8	MO384801149/2 Out of stock	Seat Frame From S.N 22LA3RON003531	£139.39 £116.16
8	MO384801149/1 Out of stock	Seat Frame To S.N 22LA3RON003530	£120.95 £100.79
11	MO382785243/0 Out of stock	Steering Column Support	£84.02 £70.02
14	MO384801107/3 Out of stock	Footboard Support	£48.37 £40.31
15	MO327787025/0 Out of stock	Support	£3.06 £2.55
20	MO384040300/0 Out of stock	Rear Plate	£3.18 £2.65
24	MO112155000/0 In stock	Nut	£1.48 £1.23
26	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
27	MO125034001/0 In stock	Brass	£3.61 £3.01
28	MO325600148/0 Out of stock	Hood	£1.40 £1.17
29	MO112691400/0 Out of stock	Screw	£1.48 £1.23
31	MO127430602/1 Out of stock	Spring	£6.16 £5.13
32	MO327543047/0 Out of stock	Plate	£9.17 £7.64
33	MO125430263/0 Out of stock	Spring	£1.34 £1.12
34	MO125160048/0 Out of stock	Spacer	£1.87 £1.56
35	MO112728697/0 In stock	Screw	£1.48 £1.23
36	MO325785379/1 Out of stock	Support	£1.66 £1.38
37	MO112293201/0 In stock	Nut	£1.61 £1.34
39	MO112735110/0 Out of stock	Screw	£1.48 £1.23
40	MO127430600/0 Out of stock	Spring	£2.68 £2.23
41	MO127294001/0 Out of stock	Rear Conveyor Guide	£19.42 £16.18
42	MO112735120/0 Out of stock	Screw	£1.48 £1.23
43	MO112523040/0 In stock	Washer	£1.48 £1.23
47	MO327772095/0 Out of stock	Micro Handbrake Stirrup Support	£1.66 £1.38
48	MO112735105/0 Out of stock	Screw	£1.48 £1.23
51	MO127047012/0 Out of stock	Fast Release Bush Rider	£12.46 £10.38
52	MO127430577/0 Out of stock	Spring	£5.63 £4.69
53	MO325670008/1 Out of stock	Washer	£1.66 £1.38
54	MO112000955/0 Out of stock	Benzing Ring	£1.27 £1.06
60	MO112521350/0 Out of stock	Washer	£1.48 £1.23
61	MO125943009/0 Out of stock	Screw	£1.55 £1.29
62	MO384317107/0 Out of stock	Clamp	£12.60 £10.50
63	MO127430598/0 Out of stock	Spring	£5.09 £4.24
65	MO384317109/0 Out of stock	Lever	£11.71 £9.76
66	MO112521330/0 Out of stock	Washer	£1.48 £1.23
67	MO112154210/0 In stock	Nut	£1.61 £1.34
69	MO119216050/0 Out of stock	Bearing	£2.28 £1.90
71	MO112154510/0 In stock	Nut	£1.48 £1.23
72	MO384004608/0 Out of stock	Cable	£21.38 £17.82
73	MO112604899/0 In stock	Crown Fastener	£1.48 £1.23
81	MO112792611/0 Out of stock	Screw	£1.48 £1.23
82	MO112540260/0 Out of stock	Washer	£1.48 £1.23
83	MO112523060/0 In stock	Washer	£1.48 £1.23
84	MO382547061/1 Out of stock	Plate	£35.65 £29.71
85	MO122524970/3 Out of stock	Pin	£1.61 £1.34
86	MO112155010/0 Out of stock	Nut	£2.00 £1.67
87	MO118203854/0 Out of stock	Cap	£1.48 £1.23
94	MO327773093/1 Out of stock	Bracket	£18.46 £15.38
95	MO327110564/0 Out of stock	Cover	£3.18 £2.65
96	MO327787113/0 Out of stock	Support	£3.56 £2.97
97	MO327600183/0 Out of stock	Guard	£3.82 £3.18
98	MO112604896/0 Out of stock	Crown Fastener	£1.48 £1.23
99	MO122517866/0 Out of stock	Pin	£1.48 £1.23
100	MO127430601/0 Out of stock	Spring	£2.00 £1.67
101	MO112791213/1 Out of stock	Screw	£1.48 £1.23
103	MO119410622/1 In stock	Microswitch	£6.29 £5.24
104	MO112437503/0 Out of stock	Plate	£1.87 £1.56
106	MO112789021/0 Out of stock	Hex-Head Screw M5X20 Uni 5739 Wz	£1.74 £1.45
