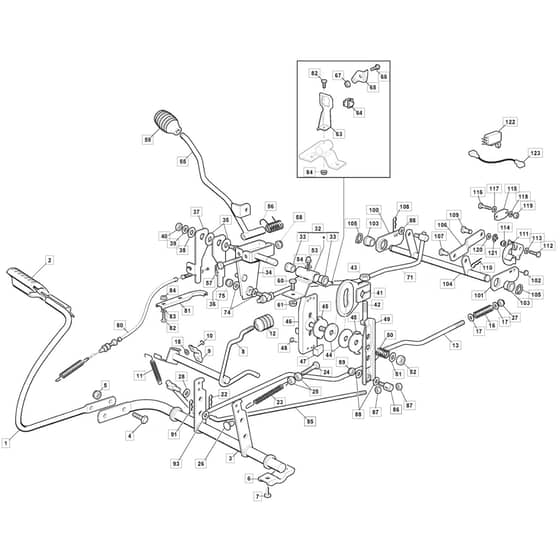

1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1328H Parts Diagram

Product Name - MTF 72H

Model Year - 2022

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M22

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Out of stock	Pedal	£23.04 £19.20
2	MO125110267/0 Out of stock	Clamp Cover	£3.61 £3.01
3	MO384001015/1 Out of stock	Axle	£44.56 £37.13
4	MO112793301/0 Out of stock	Screw	£1.48 £1.23
6	MO327546015/2 Out of stock	Plate	£1.66 £1.38
7	MO112731350/0 Out of stock	Screw	£1.48 £1.23
8	MO384001011/3 Out of stock	Axle	£10.57 £8.81
9	MO325547049/0 Out of stock	Plate	£3.06 £2.55
10	MO112731601/0 Out of stock	Screw	£1.87 £1.56
11	MO127430552/0 Out of stock	Spring	£1.48 £1.23
12	MO127395050/1 Out of stock	Knob	£2.81 £2.34
13	MO384002088/0 Out of stock	Rod	£34.37 £28.64
16	MO127430588/0 Out of stock	Spring	£6.77 £5.64
17	MO112521360/0 In stock	Washer	£1.48 £1.23
18	MO112521320/0 Out of stock	Washer	£1.48 £1.23
23	MO125430210/1 Out of stock	Brake Spring	£2.54 £2.12
24	MO122943005/0 Out of stock	Screw	£2.41 £2.01
26	MO127275000/0 Out of stock	Grommet	£2.94 £2.45
27	MO112156602/0 In stock	Nut	£1.34 £1.12
28	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
32	MO384773568/2 Out of stock	Bracket	£38.20 £31.83
33	MO127045080/0 Out of stock	Bushing	£4.96 £4.13
34	MO384773561/1 Out of stock	Control Lever Bracket	£42.01 £35.01
35	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
36	MO327772101/0 Out of stock	Clamp	£2.42 £2.02
37	MO327772103/0 Out of stock	Clamp	£2.04 £1.70
38	MO322672152/0 Out of stock	Antifriction Washer	£1.52 £1.27
39	MO112523060/0 In stock	Washer	£1.48 £1.23
41	MO327734055/0 Out of stock	Sector	£2.93 £2.44
42	MO112794900/0 Out of stock	Screw	£1.61 £1.34
44	MO127158000/0 Out of stock	Plate	£19.96 £16.63
45	MO327670053/0 Out of stock	Washer	£1.66 £1.38
46	MO384773565/0 Out of stock	Clamp	£15.79 £13.16
47	MO127063020/0 Out of stock	Cam	£1.48 £1.23
48	MO112735110/0 Out of stock	Screw	£1.48 £1.23
49	MO384773563/0 Out of stock	Lever	£5.99 £4.99
50	MO127430560/0 Out of stock	Clutch Spring	£14.53 £12.11
51	MO325670008/1 Out of stock	Washer	£1.66 £1.38
52	MO112155020/0 Out of stock	Nut	£1.61 £1.34
53	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
55	MO384317101/0 Out of stock	Lever. Speed Drive Control	£28.01 £23.34
56	MO125430226/0 Out of stock	Spring	£2.15 £1.79
57	MO112692050/0 In stock	Screw	£1.74 £1.45
59	MO182394508/0 Out of stock	Knob	£7.90 £6.58
60	MO112793102/0 In stock	Screw	£1.48 £1.23
61	MO112155000/0 In stock	Nut	£1.48 £1.23
63	MO327787111/0 Out of stock	Micro Switch Bracket	£1.66 £1.38
64	MO119410623/0 Out of stock	Microswitch	£7.24 £6.03
65	MO327063025/0 Out of stock	Micro Switch Bracket	£1.66 £1.38
66	MO112792611/0 Out of stock	Screw	£1.48 £1.23
67	MO112293201/0 In stock	Nut	£1.61 £1.34
82	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
83	MO112521330/0 Out of stock	Washer	£1.48 £1.23
84	MO112292102/0 In stock	Nut	£1.61 £1.34
86	MO125510040/2 Out of stock	Pin To S.N 19LA3RON002973	£5.50 £4.58
87	MO112293200/0 In stock	Nut	£1.48 £1.23
89	MO112155010/0 Out of stock	Nut	£2.00 £1.67
91	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
102	MO112735120/0 Out of stock	Screw	£1.48 £1.23
103	MO125040614/0 Out of stock	Bushing	£1.48 £1.23
105	MO112608900/0 Out of stock	Seeger	£1.27 £1.06
109	MO125510085/1 Out of stock	Pin	£1.48 £1.23
116	MO112735602/0 Out of stock	Screw	£1.48 £1.23
117	MO112540020/0 Out of stock	Washer	£1.48 £1.23
118	MO112581100/0 Out of stock	Grower	£1.27 £1.06
119	MO112290791/0 Out of stock	Nut	£1.48 £1.23
120	MO112521350/0 Out of stock	Washer	£1.48 £1.23
121	MO112436050/0 In stock	Plate	£1.74 £1.45
122	MO119410609/1LC In stock	Microswitch	£25.85 £21.54
123	MO125065025/0 Out of stock	Adapter Cable	£8.17 £6.81
