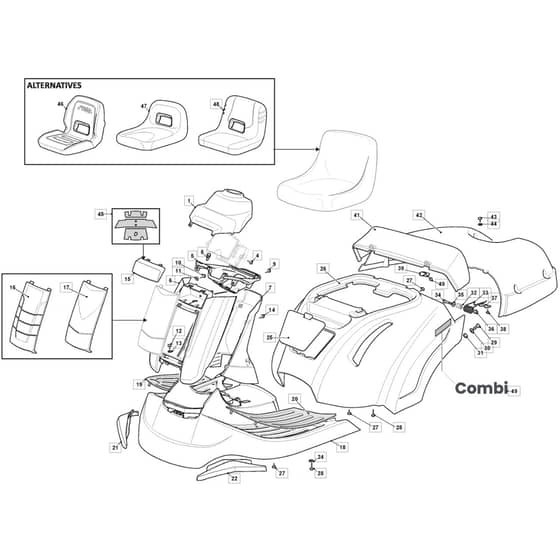

1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Body Diagram

Name: 1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Body Diagram
SKU: 1328h_2t0210483_m22_body-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1328H - 2022 - 2T0210483/M22 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1328H Parts Diagram

Product Name - MTF 72H

Model Year - 2022

Model Type - F 72 Hydro F.L.

Art.N - 2T0210483/M22

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO327109535/0 Out of stock	Dashboard Cover Grey	£33.10 £27.58
5	MO327787084/0 Out of stock	Lights And Card Support	£17.82 £14.85
6	MO327787119/0 Out of stock	Front Dashboard Support. Red Dark Red	£44.56 £37.13
7	MO327787104/0 Out of stock	Rear Dashboard Support. Green Black	£42.01 £35.01
8	MO125943010/0 In stock	Screw	£1.87 £1.56
9	MO112735403/0 In stock	Screw	£1.48 £1.23
15	MO325410913/0 Out of stock	Grill Transparent	£10.57 £8.81
17	MO327110475/0 Out of stock	Front Cover. Black Black	£15.53 £12.94
18	MO327110574/0 Out of stock	Footboard Cover. Red Dark Red	£140.04 £116.70
19	MO127110304/0 Out of stock	Right Footboard Cover	£9.37 £7.81
20	MO127110305/1 Out of stock	Left Footboard Cover	£9.37 £7.81
21	MO327110501/0 Out of stock	Black Wheels Cover. Right	£7.00 £5.83
22	MO327110502/0 Out of stock	Black Wheels Cover. Left	£8.15 £6.79
25	MO327109536/0 Out of stock	Front Cover. Red Dark Red	£9.55 £7.96
26	MO384110170/0 Out of stock	Red Wheels Cover Dark Red	£165.50 £137.92
28	MO112735410/0 Out of stock	Screw	£1.48 £1.23
29	MO112791213/1 Out of stock	Screw	£1.48 £1.23
30	MO112523040/0 In stock	Washer	£1.48 £1.23
31	MO112154510/0 In stock	Nut	£1.48 £1.23
32	MO127047003/0 Out of stock	Bushing	£1.61 £1.34
33	MO127430551/1 Out of stock	Spring	£2.68 £2.23
34	MO112691200/0 Out of stock	Screw	£1.61 £1.34
35	MO112523070/0 Out of stock	Washer	£1.48 £1.23
36	MO112155000/0 In stock	Nut	£1.48 £1.23
37	MO327546001/0 Out of stock	Plate	£1.40 £1.17
39	MO327546003/0 Out of stock	Plate	£1.66 £1.38
40	MO112735406/0 Out of stock	Screw	£1.48 £1.23
42	MO327110575/0 Out of stock	Red Grass-Catcher Cover	£42.01 £35.01
43	MO112729600/0 Out of stock	Screw	£1.48 £1.23
44	MO112523020/0 Out of stock	Washer	£1.48 £1.23
45	MO114366202/0 Out of stock	Light Label	£4.02 £3.35
48	MO125722488/0 In stock	Seat	£180.77 £150.64
49	MO114372971/0 Out of stock	Denom.Label "Combi" Stiga	£7.90 £6.58
