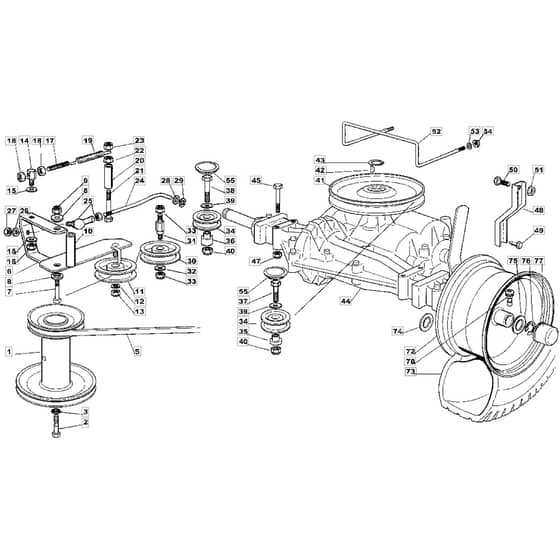

1236M - 2006 - 13-2650-16 - Mountfield Ride On Mower Transmission Diagram

Name: 1236M - 2006 - 13-2650-16 - Mountfield Ride On Mower Transmission Diagram
SKU: 1236m_13_2650_16_transmission-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1236M - 2006 - 13-2650-16 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1236M Parts Diagram

Product Name - 1236 M

Model Year - 2006

Model Type - NJB 92

Art.N - 13-2650-16

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601547/1 Out of stock	Engine Belt Pulley	£198.66 £165.55
2	MO112737310/0 Out of stock	Screw	£2.66 £2.22
5	MO135062000/1 In stock	V-Belt	£30.48 £25.40
7	MO112792099/0 In stock	Screw	£1.28 £1.07
8	MO125038002/1 Out of stock	Bushing	£1.39 £1.16
11	MO125601554/0 Out of stock	Idler Pulley	£23.17 £19.31
12	MO112523060/0 In stock	Washer	£1.39 £1.16
13	MO112155000/0 Out of stock	Lock Nut	£1.39 £1.16
14	MO125510040/2 Out of stock	Pivot Bolt	£5.20 £4.33
15	MO325670011/0 Out of stock	Washer	£1.39 £1.16
17	MO125840005/0 Out of stock	Tie Rod	£2.66 £2.22
18	MO112293200/0 In stock	Nut	£1.39 £1.16
19	MO125430208/1 Out of stock	Spring	£3.17 £2.64
21	MO112692050/0 In stock	Screw	£1.66 £1.38
22	MO112293201/0 In stock	Nut	£1.54 £1.28
24	MO125840002/0 Out of stock	Tie Rod	£16.76 £13.97
25	MO122746610/0 Out of stock	Ball Joint	£19.06 £15.88
26	MO112583500/0 Out of stock	Washer	£1.39 £1.16
28	MO9699-0090-02 Out of stock	Washer	£1.78 £1.48
29	MO112604899/0 In stock	Locking Washer	£1.39 £1.16
30	MO125601555/0 In stock	Belt Roller	£26.42 £22.02
34	MO325601570/1 Out of stock	Belt Roller	£21.97 £18.31
35	MO125160018/1 Out of stock	Spacer	£6.08 £5.07
36	MO125160014/1 Out of stock	Spacer	£6.86 £5.72
37	MO112691100/0 Out of stock	Screw	£1.39 £1.16
38	MO112691200/0 Out of stock	Screw	£1.54 £1.28
41	MO182601503/0 Out of stock	Belt Pulley	£91.43 £76.19
42	MO112139430/0 Out of stock	Key	£1.78 £1.48
43	MO112608950/0 Out of stock	Circlip	£1.39 £1.16
44	MO118400922/1 Out of stock	Transaxle (Mst 205-535) Peerless MST 205-535	£1,317.80 £1,098.17
45	MO9997-0860-16 Out of stock	Screw	£1.66 £1.38
48	MO325774247/0 Out of stock	Stay	£10.28 £8.57
49	MO112735150/0 Out of stock	Screw	£1.54 £1.28
50	MO9997-0816-16 Out of stock	Screw	£1.39 £1.16
53	MO112521360/0 In stock	Washer	£1.39 £1.16
54	MO112292102/0 In stock	Nut	£1.54 £1.28
55	MO125109521/1 Out of stock	Cover	£1.39 £1.16
72	MO182000592/0 Out of stock	Rim-Rear	£99.04 £82.53
73	MO382680067/0 Out of stock	Tire (Turf Saver)	£177.77 £148.14
74	MO112521410/0 Out of stock	Washer	£1.66 £1.38
75	MO125670005/2 Out of stock	Washer	£3.68 £3.07
76	MO112001000/0 Out of stock	Circlip	£1.66 £1.38
77	MO122110230/0 In stock	Hub Cap	£1.39 £1.16
78	MO9545-0500-00 Out of stock	Valve Assembly	£4.84 £4.03
