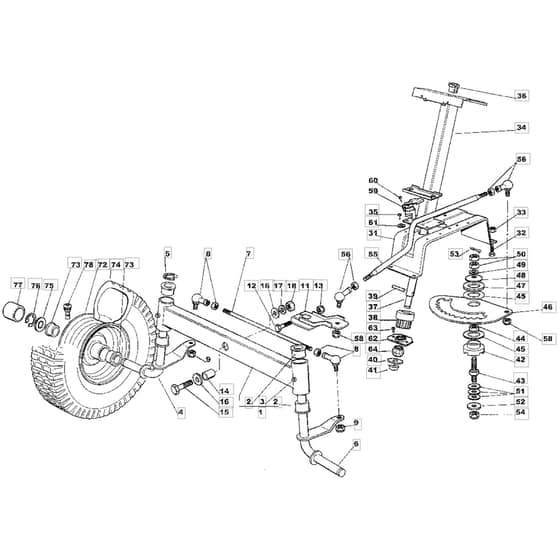

1236M - 2006 - 13-2650-16 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1236M Parts Diagram

Product Name - 1236 M

Model Year - 2006

Model Type - NJB 92

Art.N - 13-2650-16

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182034008/0 Out of stock	Front Wheel Axle	£126.97 £105.81
2	MO125034002/1 Out of stock	Bushing	£3.43 £2.86
3	MO112379511/0 Out of stock	Grease Dispenser	£1.39 £1.16
4	MO382230355/1 Out of stock	Stub Axle-R	£29.09 £24.24
5	MO112001000/0 Out of stock	Circlip	£1.66 £1.38
6	MO382230357/1 Out of stock	Stub Axle-L	£33.02 £27.52
7	MO125840006/0 Out of stock	Tie Rod	£14.98 £12.48
11	MO325318142/0 Out of stock	Steering Arm	£13.60 £11.33
12	MO112692390/0 Out of stock	Screw	£1.48 £1.23
13	MO112156602/0 In stock	Lock Nut	£1.28 £1.07
14	MO125160016/1 Out of stock	Spacer	£5.59 £4.66
15	MO112692695/0 Out of stock	Screw	£1.39 £1.16
16	MO112523100/0 Out of stock	Washer	£1.78 £1.48
17	MO112587100/0 Out of stock	Washer	£1.39 £1.16
18	MO112295300/0 Out of stock	Nut	£1.39 £1.16
32	MO9997-0816-16 Out of stock	Screw	£1.39 £1.16
33	MO112155000/0 Out of stock	Lock Nut	£1.39 £1.16
34	MO382785135/0 Out of stock	Support	£70.46 £58.72
36	MO325038004/0 Out of stock	Bushing	£2.17 £1.81
37	MO125520004/1 Out of stock	Steering Column	£23.60 £19.67
38	MO125570000/2 Out of stock	Steering Pinion	£11.57 £9.64
39	MO9595-0262-00 Out of stock	Locating Pin	£1.54 £1.28
40	MO112521370/0 Out of stock	Washer	£1.39 £1.16
41	MO112436030/0 Out of stock	Lock Plate	£1.66 £1.38
42	MO125040617/0 Out of stock	Bushing	£9.64 £8.03
43	MO125510065/3 Out of stock	Stud Bolt	£9.40 £7.83
44	MO112295200/0 Out of stock	Nut	£1.28 £1.07
45	MO325670012/0 Out of stock	Washer	£2.17 £1.81
46	MO325735507/0 Out of stock	Steering Sector	£48.06 £40.05
47	MO325670014/1 Out of stock	Washer	£4.06 £3.38
48	MO122160400/0 In stock	Elastic Washer	£1.66 £1.38
49	MO112521360/0 In stock	Washer	£1.39 £1.16
51	MO322672150/0 Out of stock	Washer	£1.66 £1.38
52	MO112523080/0 In stock	Washer	£1.39 £1.16
55	MO125033025/0 Out of stock	Steering Rod	£50.80 £42.33
56	MO122746609/0 Out of stock	Ball Joint	£19.69 £16.41
62	MO325785213/1 Out of stock	Support	£2.17 £1.81
63	MO112729601/1 Out of stock	Screw	£1.48 £1.23
64	MO325743000/0 In stock	Joint	£2.42 £2.02
72	MO182000590/1 Out of stock	Rim-Front	£62.21 £51.84
73	MO125122200/2 Out of stock	Bearing	£10.68 £8.90
74	MO125590018/0 Out of stock	Tire (Turf Saver)	£44.44 £37.03
75	MO125670005/2 Out of stock	Washer	£3.68 £3.07
77	MO122110230/0 In stock	Hub Cap	£1.39 £1.16
78	MO9545-0500-00 Out of stock	Valve Assembly	£4.84 £4.03
