1235M - 2007 - 299954263/ME7 - Mountfield Ride On Mower Body Diagram

Name: 1235M - 2007 - 299954263/ME7 - Mountfield Ride On Mower Body Diagram
SKU: 1235m_299954263_me7_body-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1235M - 2007 - 299954263/ME7 - Mountfield Ride On Mower Body Diagram

Description

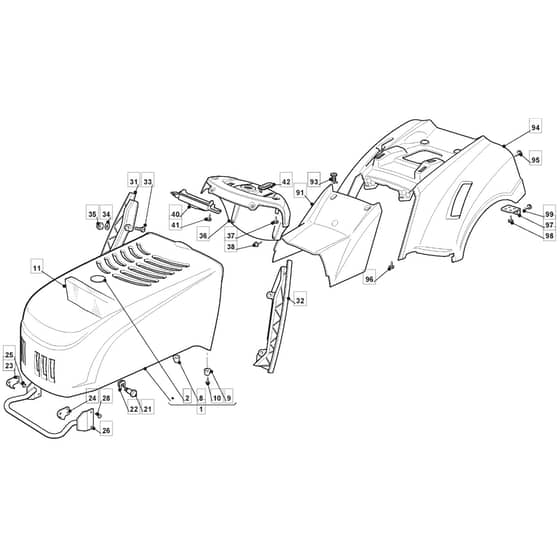

Mountfield 1235M Parts Diagram

Product Name - 1235 M

Model Year - 2007

Model Type - NJ 92

Art.N - 299954263/ME7

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076902/1 Out of stock	Engine Hood. Red	£126.04 £105.03
2	MO325547025/1 Out of stock	Injection Plaque From 01-9-2003	£1.79 £1.49
9	MO125580013/0 Out of stock	Left Pin	£1.48 £1.23
10	MO112727356/0 Out of stock	Screw	£1.87 £1.56
21	MO125510045/0 Out of stock	Stud	£3.18 £2.65
22	MO112436050/0 In stock	Plate	£1.74 £1.45
23	MO325547089/1 Out of stock	Right Plate	£3.95 £3.29
24	MO325547091/1 Out of stock	Left Plate From 01-9-2010	£3.95 £3.29
25	MO112731580/0 Out of stock	Screw	£1.48 £1.23
26	MO382869031/0 Out of stock	Muffler Protection	£35.65 £29.71
28	MO112735120/0 Out of stock	Screw	£1.48 £1.23
32	MO325599011/0 Out of stock	Left Dashboard Support	£6.88 £5.73
33	MO112815221/0 Out of stock	Screw	£1.34 £1.12
34	MO112521330/0 Out of stock	Washer	£1.48 £1.23
35	MO112154510/0 In stock	Nut	£1.48 £1.23
36	MO325120190/0 Out of stock	Dashboard	£31.82 £26.52
37	MO112728440/0 Out of stock	Screw	£1.34 £1.12
38	MO112735402/0 In stock	Screw	£1.48 £1.23
40	MO325600074/0 Out of stock	Card Protection	£8.65 £7.21
93	MO125580020/2 In stock	Stake	£7.90 £6.58
94	MO325110322/0 Out of stock	Red Wheels Cover	£94.21 £78.51
97	MO325755041/0 Out of stock	Bracket	£1.66 £1.38
98	MO112728686/0 In stock	Screw	£1.48 £1.23
99	MO112735110/0 Out of stock	Flanged Self-Tap Screw 4.8 X 13	£1.48 £1.23
