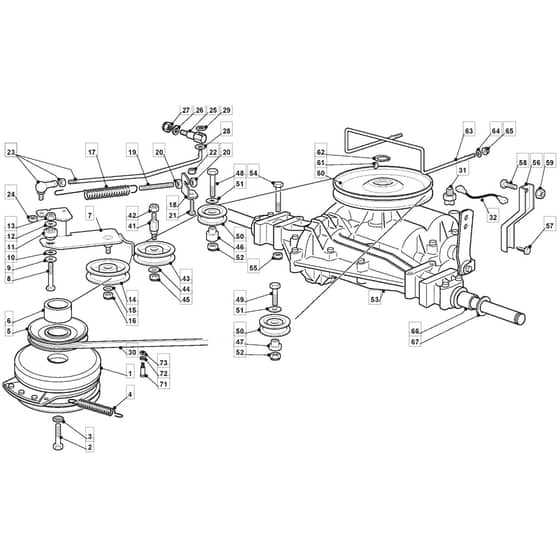

1235M - 2007 - 13-2687-12 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1235M Parts Diagram

Product Name - 1235 M

Model Year - 2007

Model Type - NJ 92

Art.N - 13-2687-12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118399063/1 In stock	Clutch	£334.76 £278.97
2	MO112737320/0 Out of stock	Screw	£4.15 £3.46
3	MO112543000/0 Out of stock	Washer	£1.48 £1.23
4	MO122430217/0 Out of stock	Tension Spring	£8.96 £7.47
5	MO125601567/0 Out of stock	Pulley	£28.12 £23.43
6	MO125160021/0 Out of stock	Spacer	£5.63 £4.69
7	MO382318217/1 Out of stock	Lever	£23.04 £19.20
8	MO112691115/0 Out of stock	Screw	£1.48 £1.23
10	MO327670055/0 Out of stock	Antifriction Washer	£1.66 £1.38
11	MO125510087/0 Out of stock	Pin	£4.82 £4.02
12	MO112523060/0 In stock	Washer	£1.48 £1.23
13	MO112155000/0 In stock	Nut	£1.48 £1.23
14	MO125601554/0 In stock	Pulley	£24.43 £20.36
17	MO125430260/1 Out of stock	Spring	£6.16 £5.13
18	MO325755049/0 Out of stock	Bracket	£3.06 £2.55
19	MO125840005/0 Out of stock	Tie Rod	£2.81 £2.34
20	MO112293200/0 In stock	Nut	£1.48 £1.23
21	MO112818690/0 Out of stock	Screw	£1.70 £1.42
22	MO112293201/0 In stock	Nut	£1.61 £1.34
23	MO382820013/0 Out of stock	Tie Rod	£25.21 £21.01
25	MO125510063/0 Out of stock	Pin	£4.55 £3.79
26	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
28	MO112521350/0 In stock	Washer	£1.48 £1.23
29	MO112604899/0 In stock	Crown Fastener	£1.48 £1.23
30	MO135062018/0 In stock	Belt	£37.36 £31.13
31	MO119410610/0 Out of stock	Microswitch	£50.88 £42.40
32	MO125065026/0 Out of stock	Cable	£8.17 £6.81
41	MO125510100/0 Out of stock	Pin	£6.02 £5.02
43	MO125601555/0 In stock	Pulley Bearing hole ø16	£27.85 £23.21
46	MO125160014/1 Out of stock	Spacer	£7.24 £6.03
47	MO125160018/1 Out of stock	Spacer	£6.43 £5.36
48	MO112691200/0 Out of stock	Screw	£1.61 £1.34
49	MO112691100/0 Out of stock	Screw	£1.48 £1.23
50	MO382601522/0 In stock	Belt Roller	£25.98 £21.65
51	MO122671653/0 Out of stock	Washer	£1.48 £1.23
53	MO118400922/1 Out of stock	Dana Transmission 4360-211	£766.34 £638.62
54	MO112691900/0 Out of stock	Screw	£1.74 £1.45
55	MO112154210/0 In stock	Nut	£1.61 £1.34
56	MO325774247/0 Out of stock	Bracket	£10.82 £9.02
57	MO112735150/0 Out of stock	Screw	£1.61 £1.34
58	MO112792611/0 Out of stock	Screw	£1.48 £1.23
60	MO182601509/0 Out of stock	Pulley	£72.56 £60.47
61	MO112139430/0 Out of stock	Key	£1.87 £1.56
62	MO112608950/0 Out of stock	Seeger	£1.48 £1.23
64	MO112523040/0 In stock	Washer	£1.48 £1.23
65	MO112292102/0 In stock	Nut	£1.61 £1.34
66	MO125160034/0 Out of stock	Spacer	£4.15 £3.46
67	MO112521410/0 Out of stock	Washer	£1.74 £1.45
71	MO125580030/0 Out of stock	Belt Guide Peg	£4.28 £3.57
73	MO112360425/0 Out of stock	Square Nut M8	£1.74 £1.45
