1235M - 2007 - 13-2687-12 - Mountfield Ride On Mower Controls Diagram

Description

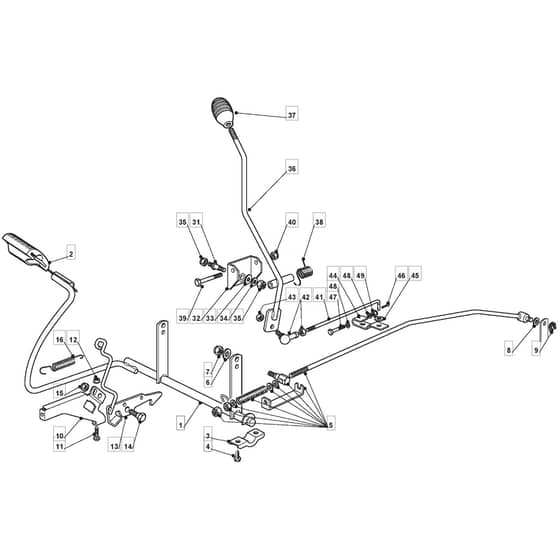

Mountfield 1235M Parts Diagram

Product Name - 1235 M

Model Year - 2007

Model Type - NJ 92

Art.N - 13-2687-12

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125110269/0 Out of stock	Clamp Cover	£3.48 £2.90
3	MO327546015/2 Out of stock	Plate	£1.66 £1.38
4	MO112729601/1 Out of stock	Screw	£1.48 £1.23
5	MO382000541/1 Out of stock	Control Rod	£40.74 £33.95
6	MO112523040/0 In stock	Washer	£1.48 £1.23
8	MO112521350/0 In stock	Washer	£1.48 £1.23
9	MO112436050/0 In stock	Plate	£1.74 £1.45
10	MO325785261/0 Out of stock	Support	£5.22 £4.35
11	MO112815200/0 In stock	Screw	£1.48 £1.23
12	MO112292102/0 In stock	Nut	£1.61 £1.34
13	MO382000531/0 Out of stock	Rod	£24.19 £20.16
14	MO122524970/2 Out of stock	Fulcrum Pin	£1.80 £1.50
15	MO112155000/0 In stock	Nut	£1.48 £1.23
16	MO125430213/0 Out of stock	Spring	£1.61 £1.34
31	MO125510035/0 Out of stock	Pin	£3.48 £2.90
32	MO382774247/0 Out of stock	Clamp	£8.28 £6.90
33	MO322672152/0 Out of stock	Antifriction Washer	£1.52 £1.27
34	MO112523060/0 In stock	Washer	£1.48 £1.23
35	MO112155010/0 Out of stock	Nut	£2.00 £1.67
36	MO382318215/0 Out of stock	Gearshift	£29.28 £24.40
37	MO125394510/0 Out of stock	Knob	£4.02 £3.35
38	MO125430258/0 Out of stock	Spring	£7.56 £6.30
39	MO112692050/0 In stock	Screw	£1.74 £1.45
42	MO122746601/0 Out of stock	Joint	£18.20 £15.17
44	MO325318128/1 Out of stock	Gearshift	£4.45 £3.71
45	MO112521340/0 Out of stock	Washer	£1.34 £1.12
46	MO112141418/0 In stock	Cotter Pin	£1.48 £1.23
47	MO112689500/0 Out of stock	Screw	£1.48 £1.23
48	MO112521330/0 Out of stock	Washer	£1.48 £1.23
49	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.48 £1.23
