1228M - 2005 - 13-2641-15 - Mountfield Ride On Mower Transmission Diagram

Name: 1228M - 2005 - 13-2641-15 - Mountfield Ride On Mower Transmission Diagram
SKU: 1228m_13_2641_15_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228M - 2005 - 13-2641-15 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1228M Parts Diagram

Product Name - 1228 M

Model Year - 2005

Model Type - F 73

Art.N - 13-2641-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604003/1 Out of stock	Engine Belt Pulley	£78.05 £65.04
2	MO112737310/0 Out of stock	Screw	£2.81 £2.34

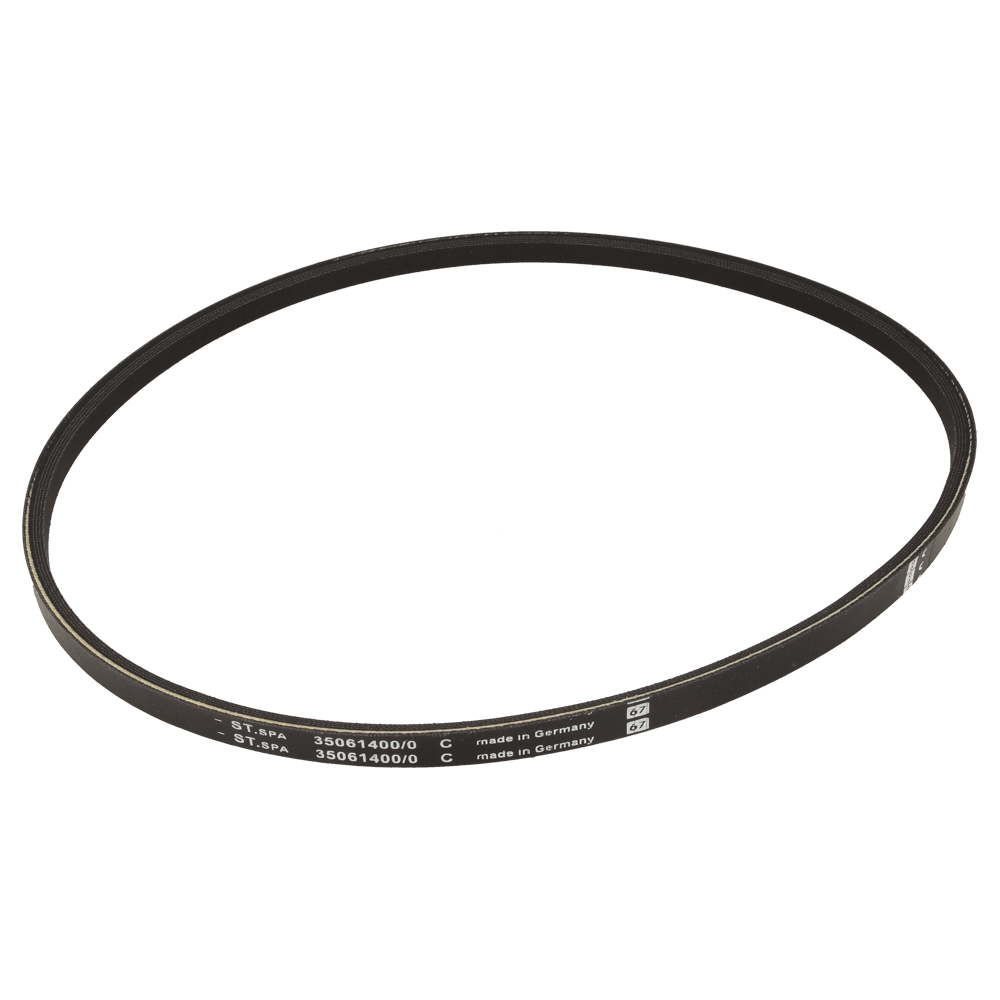

5	MO135061400/0 Out of stock	V-Belt	£33.48 £27.90

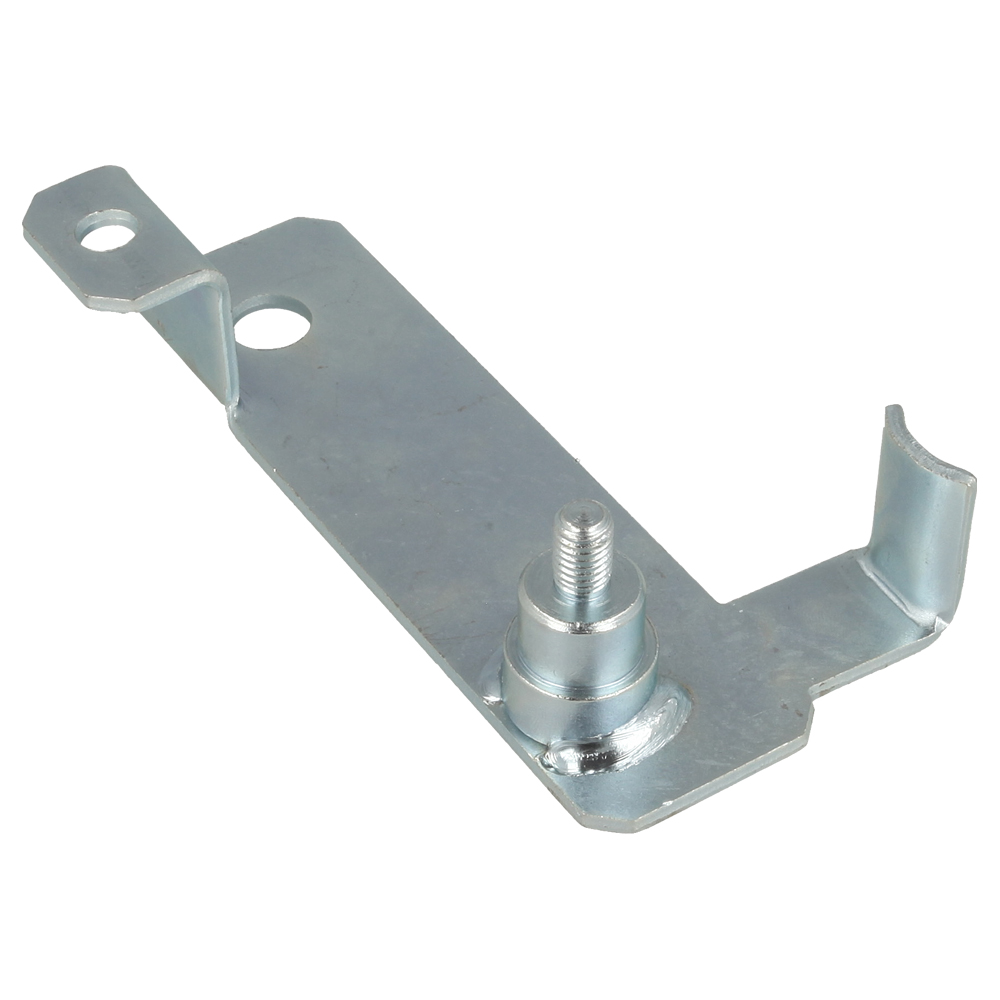

6	MO384317055/1 Out of stock	Tension Arm	£11.21 £9.34
7	MO127510096/0 Out of stock	Stud Bolt	£4.55 £3.79
8	MO112540260/0 Out of stock	Washer	£1.48 £1.23
9	MO322672151/0 Out of stock	Washer	£1.52 £1.27
11	MO9712-0831-02 Out of stock	Nut	£4.97 £4.14
12	MO125601554/0 In stock	Idler Pulley	£24.43 £20.36
15	MO127034054/0 Out of stock	Tie Rod	£10.04 £8.37
16	MO125510040/2 Out of stock	Pivot Bolt	£5.50 £4.58
17	MO112293200/0 In stock	Nut	£1.48 £1.23
19	MO325670011/0 Out of stock	Washer	£1.66 £1.38
21	MO182601503/0 Out of stock	Belt Pulley	£95.48 £79.57
22	MO112139430/0 Out of stock	Key	£1.87 £1.56
23	MO112608950/0 Out of stock	Circlip	£1.48 £1.23
24	MO118400915/3 Out of stock	Transaxle (Mst 205-541) Peerless MST 205-541	£602.57 £502.14
25	MO9997-0860-16 Out of stock	Screw	£1.52 £1.27
28	MO327772067/0 Out of stock	Stay	£2.93 £2.44
29	MO112735150/0 Out of stock	Screw	£1.61 £1.34
30	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
31	MO112793301/0 Out of stock	Screw	£1.48 £1.23
32	MO112523060/0 In stock	Washer	£1.48 £1.23
33	MO112293201/0 In stock	Nut	£1.61 £1.34
34	MO9699-0090-02 Out of stock	Washer	£1.91 £1.59
35	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
52	MO184044001/0 Out of stock	Rim-Rear	£71.29 £59.41
53	MO382680007/1 Out of stock	Tire (Turf Saver)	£120.95 £100.79
53	MO125590020/0 Out of stock	Tire (Deli)	£65.62 £54.68
54	MO112521410/0 Out of stock	Washer	£1.74 £1.45
55	MO125670005/2 Out of stock	Washer	£3.89 £3.24
56	MO112001000/0 Out of stock	Circlip	£1.74 £1.45
57	MO112520010/0 Out of stock	Washer	£2.15 £1.79
58	MO122110230/0 Out of stock	Hub Cap	£1.48 £1.23
59	MO125950002/0 Out of stock	Valve (90º)	£5.36 £4.47
