Description

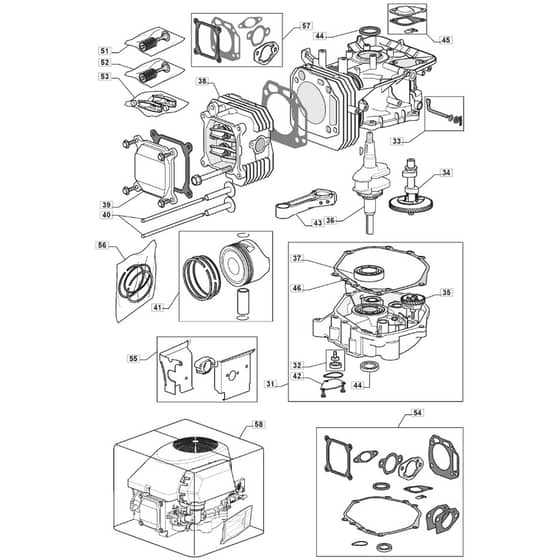

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1824483/UM9

Ref. Img. Part No. Details
  1 Crankcase Cover Assy
Crankcase Cover Assy
MO118550445/0 Out of stock
Crankcase Cover Assy
£180.77 £150.64

  32 Oil Pump Assy
Oil Pump Assy
MO118550224/1 Out of stock
Oil Pump Assy
£19.88 £16.57

  33 Shaft. Governor Arm Assy
Shaft. Governor Arm Assy
MO118550226/0 Out of stock
Shaft. Governor Arm Assy
£10.31 £8.59

  34 Camshaft Assy
Camshaft Assy
MO118550243/0 Out of stock
Camshaft Assy
£106.45 £88.71

  35 Speed Governor Assy
Speed Governor Assy
MO118550347/0 Out of stock
Speed Governor Assy
£18.74 £15.62

  36 Crankshaft
Crankshaft
MO118550232/0 Out of stock
Crankshaft
£187.46 £156.22

  37 Ball Bearing
Ball Bearing
MO118550227/0 Out of stock
Ball Bearing
£20.35 £16.96

  38 Cylinder Head Assy
Cylinder Head Assy
MO118550233/0 Out of stock
Cylinder Head Assy
£227.64 £189.70

  40 Push Rods Assy
Push Rods Assy
MO118550242/1 Out of stock
Push Rods Assy
£5.63 £4.69

  41 Piston Assy
Piston Assy
MO118550328/1 Out of stock
Piston Assy
£100.43 £83.69

  42 Oli Pump Cover
Oli Pump Cover
MO118550223/0 Out of stock
Oli Pump Cover
£5.35 £4.46

  43 Connecting Rod Assy
Connecting Rod Assy
MO118550231/1 Out of stock
Connecting Rod Assy
£53.57 £44.64

  44 Oil Seal
Oil Seal
MO118551418/0 Out of stock
Oil Seal
£11.38 £9.48

  45 Gasket Assy
Gasket Assy
MO118550446/0 Out of stock
Gasket Assy
£20.42 £17.02

  46 Crankcase Gasket
Crankcase Gasket
MO118550355/1 Out of stock
Crankcase Gasket
£16.07 £13.39

  51 Intake Valve Assy
Intake Valve Assy
MO118550240/0 Out of stock
Intake Valve Assy
£37.49 £31.24

  52 Exhaust Valve Assy
Exhaust Valve Assy
MO118550241/0 Out of stock
Exhaust Valve Assy
£34.81 £29.01

  53 Valve Arm Set
Valve Arm Set
MO118550334/0 Out of stock
Valve Arm Set
£17.41 £14.51

  54 Engine Gasket Set
Engine Gasket Set
MO118550438/0 Out of stock
Engine Gasket Set
£95.08 £79.23

  55 Engine Guard Assy
Engine Guard Assy
MO118550220/0 Out of stock
Engine Guard Assy
£30.80 £25.67

  56 Piston. Ring Set
Piston. Ring Set
MO118550436/0 Out of stock
Piston. Ring Set
£38.83 £32.36

  57 Cylinder Head Gasket Set
Cylinder Head Gasket Set
MO118550437/0 Out of stock
Cylinder Head Gasket Set
£39.84 £33.20

  58 Engine Assembly 414Cc Tre0702
Engine Assembly 414Cc Tre0702
MO118550439/1 Out of stock
Engine Assembly 414Cc Tre0702
£645.88 £538.23
