1228H - 2009 - 2T1824483/UM9 - Mountfield Ride On Mower Engine Diagram

Description

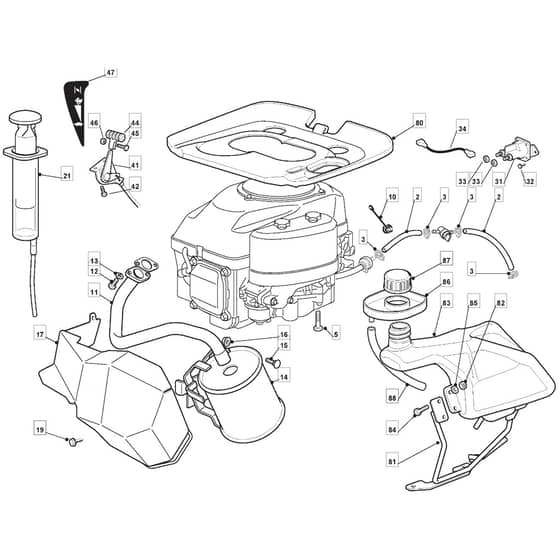

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1824483/UM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869035/1 Out of stock	Connecting Tube	£8.92 £7.43
3	MO118375051/1 Out of stock	Fair Led	£1.74 £1.45
5	MO112735108/1 In stock	Screw	£2.00 £1.67
10	MO125430239/1 Out of stock	Spring	£1.87 £1.56
11	MO118738240/0 Out of stock	Exhaust Pipe	£53.29 £44.41
12	MO112737450/0 Out of stock	Screw	£3.61 £3.01
13	MO112583500/0 Out of stock	Grower	£1.48 £1.23
14	MO118716133/0 Out of stock	Muffler	£140.60 £117.17
15	MO112815210/0 Out of stock	Screw	£1.48 £1.23
16	MO112292102/0 In stock	Nut	£1.61 £1.34
17	MO384598093/0 Out of stock	Muffler Protection	£115.85 £96.54
19	MO112729601/1 Out of stock	Screw	£1.48 £1.23
21	MO118718000/0 Out of stock	Oil Emptying Syringe	£15.13 £12.61
31	MO118736113/0 In stock	Starter Relay	£36.16 £30.13
32	MO112735110/0 Out of stock	Screw	£1.48 £1.23
33	MO9743-5121-32 Out of stock	Nut	£1.40 £1.17
34	MO127065050/0 Out of stock	Cable	£6.02 £5.02
41	MO184000250/1 Out of stock	Accelerator	£24.19 £20.16
42	MO125943012/0 Out of stock	Screw	£1.48 £1.23
44	MO125394501/0 Out of stock	Knob	£1.48 £1.23
45	MO112726388/0 Out of stock	Screw	£1.48 £1.23
46	MO112290800/0 Out of stock	Nut	£1.48 £1.23
47	MO114357425/1 Out of stock	Label	£1.48 £1.23
80	MO327110325/2 Out of stock	Engine Cover Black	£18.84 £15.70
81	MO384783049/0 Out of stock	Support	£94.21 £78.51
82	MO112154510/0 In stock	Nut	£1.48 £1.23
83	MO327733007/0 Out of stock	Fuel Tank	£70.02 £58.35
84	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
85	MO112521330/0 Out of stock	Washer	£1.48 £1.23
86	MO327600061/2 Out of stock	Guard	£3.56 £2.97
87	MO125795000/1 In stock	Fuel Cap	£7.37 £6.14
88	MO325869014/1 Out of stock	Fuel Pipe L410	£7.13 £5.94
