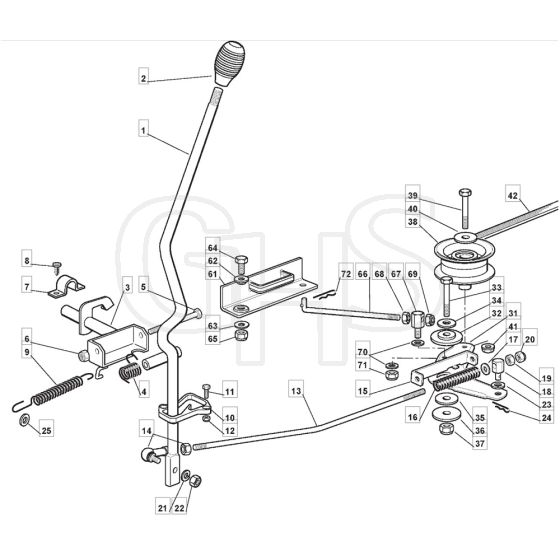

1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower Engagement Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2008

Model Type - F 72 Hydro

Art.N - 299991233/M08

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184317069/1 Out of stock	Lever	£34.28 £28.57
2	MO125394510/0 Out of stock	Knob	£4.07 £3.39
3	MO384001007/0 Out of stock	Blade Eng.Axle Control Ass.Y	£14.35 £11.96
4	MO125430226/0 Out of stock	Spring	£2.17 £1.81
5	MO112692050/0 In stock	Screw	£1.75 £1.46
7	MO325547049/0 Out of stock	Plate	£2.98 £2.48
8	MO112731601/0 Out of stock	Screw	£1.90 £1.58
9	MO127430571/0 Out of stock	Spring	£4.48 £3.73
10	MO127487000/0 Out of stock	Shoe	£2.84 £2.37
11	MO112791200/1 Out of stock	Screw	£1.34 £1.12
12	MO112154510/0 In stock	Nut	£1.63 £1.36
13	MO127034078/0 Out of stock	Rod	£8.40 £7.00
14	MO122746601/0 Out of stock	Joint	£18.42 £15.35
15	MO327772143/0 Out of stock	Clamp	£6.84 £5.70
16	MO127430576/0 Out of stock	Spring	£9.48 £7.90
17	MO112521350/0 Out of stock	Washer	£1.63 £1.36
18	MO127510113/0 Out of stock	Pin	£8.40 £7.00
21	MO112583500/0 Out of stock	Grower	£1.49 £1.24
23	MO325670008/1 In stock	Washer	£1.63 £1.36
25	MO125670006/0 Out of stock	Washer	£1.49 £1.24
31	MO384317083/0 Out of stock	Lever	£18.56 £15.47
32	MO127047000/0 Out of stock	Bushing	£4.87 £4.06
33	MO112691200/0 Out of stock	Screw	£1.80 £1.50
36	MO112523070/0 Out of stock	Washer	£1.49 £1.24
38	MO127604008/0 Out of stock	Pulley	£90.07 £75.06
39	MO112691600/0 Out of stock	Screw	£1.75 £1.46
40	MO112523060/0 In stock	Washer	£1.49 £1.24
41	MO112293201/0 In stock	Nut	£1.63 £1.36
42	MO135061423/0G Out of stock	Belt	£44.64 £37.20
61	MO384220501/0 Out of stock	Blade Brake	£9.35 £7.79
62	MO122041980/0 Out of stock	Bushing	£1.49 £1.24
63	MO322672152/0 Out of stock	Antifriction Washer	£1.75 £1.46
64	MO112793102/0 In stock	Screw	£1.49 £1.24
65	MO112155010/0 Out of stock	Nut	£2.04 £1.70
66	MO127034077/1 Out of stock	Rod	£12.60 £10.50
67	MO125510040/2 Out of stock	Pin	£5.54 £4.62
68	MO112293200/0 Out of stock	Nut	£1.63 £1.36
70	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
71	MO112155000/0 Out of stock	Nut	£1.63 £1.36
72	MO124487997/0 Out of stock	Spring Clip D.1.8	£1.49 £1.24
