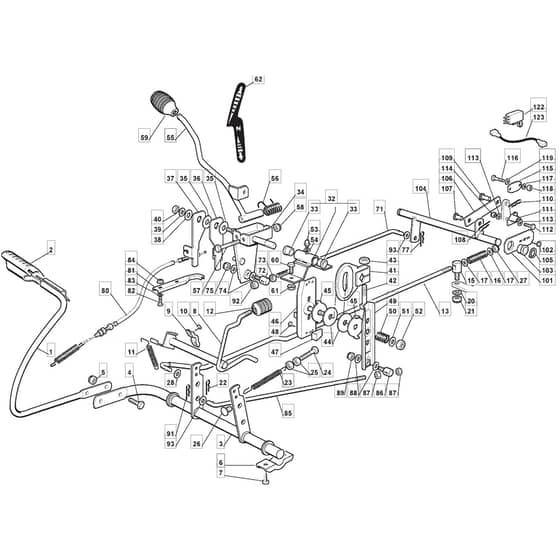

1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower Controls Diagram

1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower Controls Diagram
1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2008

Model Type - F 72 Hydro

Art.N - 299991233/M08

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Pedal MO384503001/0
Pedal
 Out of stock
£22.75 £18.96

  2 Clamp Cover MO125110267/0
Clamp Cover
 Out of stock
£3.65 £3.04

  3 Axle MO384001015/1
Axle
 Out of stock
£44.70 £37.25

  4 Screw MO112793301/0
Screw
 Out of stock
£1.49 £1.24

  6 Plate MO327546015/2
Plate
 Out of stock
£1.49 £1.24

  7 Screw MO112731350/0
Screw
 Out of stock
£1.49 £1.24

  8 Axle MO384001011/2
Axle
 Out of stock
£12.46 £10.38

  9 Plate MO325547049/0
Plate
 Out of stock
£2.98 £2.48

  10 Screw MO112731601/0
Screw
 Out of stock
£1.90 £1.58

  11 Spring MO127430552/0
Spring
 Out of stock
£1.49 £1.24

  12 Knob MO127395050/1
Knob
 Out of stock
£2.84 £2.37

  15 Pin MO125510067/1
Pin
 Out of stock
£4.20 £3.50

  16 Spring MO125430236/1
Spring
 Out of stock
£1.49 £1.24

  17 Washer MO112521360/0
Washer
 Out of stock
£1.49 £1.24

  20 Washer MO112523050/0
Washer
 In stock
£1.49 £1.24

  23 Brake Spring MO125430210/1
Brake Spring
 Out of stock
£2.58 £2.15

  24 Screw MO122943005/0
Screw
 Out of stock
£2.44 £2.03

  27 Nut MO112156602/0
Nut
 In stock
£1.36 £1.13

  32 Stirrup MO384773568/0
Stirrup
 Out of stock
£36.36 £30.30

  33 Bushing MO127045080/0
Bushing
 Out of stock
£5.02 £4.18

  39 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  42 Screw MO112794900/0
Screw
 Out of stock
£1.63 £1.36

  47 Cam MO127063020/0
Cam
 Out of stock
£1.49 £1.24

  48 Screw MO112735110/0
Screw
 Out of stock
£1.49 £1.24

  52 Nut MO112155020/0
Nut
 Out of stock
£1.63 £1.36

  53 Grease Dispenser MO112379511/0
Grease Dispenser
 Out of stock
£1.49 £1.24

  56 Spring MO125430226/0
Spring
 Out of stock
£2.17 £1.81

  57 Screw MO112692050/0
Screw
 In stock
£1.75 £1.46

  60 Screw MO112793102/0
Screw
 In stock
£1.49 £1.24

  61 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  62 Label MO114357702/1
Label
 Out of stock
£2.30 £1.92

  71 Control Rod MO127034071/0
Control Rod
 Out of stock
£12.19 £10.16

  82 Screw MO112791400/0
Screw
 In stock
Was £1.34 £1.12 Special Price £0.89 £0.74

  83 Washer From 01-9-2012 MO112521331/0
Washer From 01-9-2012
 Out of stock
£1.49 £1.24

  83 Washer To 31-8-2012 MO112521330/0
Washer To 31-8-2012
 Out of stock
£1.49 £1.24

  84 Nut MO112292102/0
Nut
 Out of stock
£1.63 £1.36

  85 Rod MO127034074/0
Rod
 Out of stock
£19.51 £16.26

  86 Pin MO125510040/2
Pin
 Out of stock
£5.54 £4.62

  87 Nut MO112293200/0
Nut
 In stock
£1.49 £1.24

  89 Nut MO112155010/0
Nut
 Out of stock
£2.04 £1.70

  91 Cotter Pin MO124487997/0
Cotter Pin
 Out of stock
£1.49 £1.24

  92 Nut MO112155000/0
Nut
 In stock
£1.49 £1.24

  102 Screw From 01-9-2012 MO112735120/0
Screw From 01-9-2012
 Out of stock
£1.49 £1.24

  102 Screw To 31-8-2012 MO112735122/0
Screw To 31-8-2012
 Out of stock
£1.49 £1.24

  103 Bushing MO125040614/0
Bushing
 Out of stock
£1.49 £1.24

  105 Seeger MO112608900/0
Seeger
 Out of stock
£1.28 £1.07

  114 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  116 Screw MO112735602/0
Screw
 Out of stock
£1.49 £1.24

  118 Nut MO112290791/0
Nut
 Out of stock
£1.49 £1.24

  119 Grower From 01-9-2012 MO112581100/0
Grower From 01-9-2012
 Out of stock
£1.28 £1.07

  119 Washer To 31-8-2012 MO112540020/0
Washer To 31-8-2012
 Out of stock
£1.49 £1.24

  122 Microswitch MO119410609/1LC
Microswitch
 In stock
£26.14 £21.78

  123 Adapter Cable MO125065025/0
Adapter Cable
 Out of stock
£8.27 £6.89


Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2008

Model Type - F 72 Hydro

Art.N - 299991233/M08
