1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower 72cm Deck Diagram

1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower 72cm Deck Diagram
1228H - 2008 - 299991233/M08 - Mountfield Ride On Mower 72cm Deck Diagram

Description

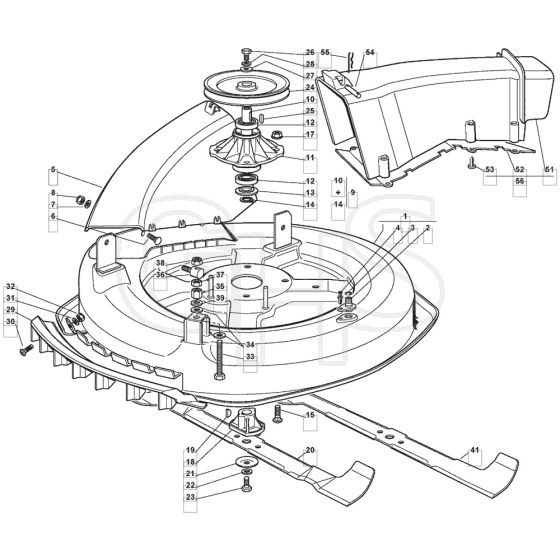

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2008

Model Type - F 72 Hydro

Art.N - 299991233/M08

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Cutting Deck MO384564111/0
Cutting Deck
 Out of stock
£440.18 £366.82

  2 Washing Cutting Deck Connection MO125033060/0
Washing Cutting Deck Connection
 In stock
£1.49 £1.24

  3 Or Ring MO119035000/0
Or Ring
 Out of stock
£4.87 £4.06

  4 Rivet MO112500030/0
Rivet
 Out of stock
£1.49 £1.24

  5 Conveyor Inlet MO327045000/1
Conveyor Inlet
 Out of stock
£18.14 £15.12

  6 Screw MO112815210/0
Screw
 Out of stock
£1.49 £1.24

  7 Washer MO112523040/0
Washer
 In stock
£1.63 £1.36

  8 Nut MO112154510/0
Nut
 In stock
£1.63 £1.36

  9 Flange Assy MO384207250/0
Flange Assy
 Out of stock
£100.24 £83.53

  10 Shaft MO127023000/0
Shaft
 Out of stock
£32.51 £27.09

  12 Bearing MO119216047/0
Bearing
 In stock
£14.40 £12.00

  13 Dust Cover Disc MO325160501/1
Dust Cover Disc
 Out of stock
£1.49 £1.24

  14 Seeger MO112609260/0
Seeger
 Out of stock
£1.75 £1.46

  15 Screw MO112818700/0
Screw
 In stock
£1.49 £1.24

  17 Nut MO112154210/0
Nut
 In stock
£1.80 £1.50

  18 Blade Holder MO125463200/0
Blade Holder
 In stock
£8.40 £7.00

  19 Key MO112139100/0
Key
 In stock
£1.63 £1.36

  20 Blade Winged. Mulching MO184109503/0
Blade Winged. Mulching
 Out of stock
£53.65 £44.71

  21 Elastic Disc MO122160400/0
Elastic Disc
 In stock
£1.75 £1.46

  23 Screw MO112735694/0
Screw
 In stock
£1.90 £1.58

  24 Pulley MO127604009/0
Pulley
 Out of stock
£54.98 £45.82

  25 Feather MO112139480/0
Feather
 In stock
£1.80 £1.50

  26 Screw MO112793102/0
Screw
 In stock
£1.49 £1.24

  27 Washer MO125670007/0
Washer
 Out of stock
£1.90 £1.58

  28 Grower MO112583500/0
Grower
 Out of stock
£1.49 £1.24

  29 Air Intake Grill MO127488000/0
Air Intake Grill
 Out of stock
£9.76 £8.13

  30 Screw MO112815200/0
Screw
 In stock
£1.63 £1.36

  31 Washer MO112521340/0
Washer
 Out of stock
£1.36 £1.13

  33 Screw MO112794970/0
Screw
 Out of stock
£3.25 £2.71

  34 Washer MO112523080/0
Washer
 In stock
£1.63 £1.36

  35 Nut MO112154250/0
Nut
 Out of stock
£4.60 £3.83

  36 Pin MO125510007/2
Pin
 Out of stock
£5.42 £4.52

  37 Nut MO112295200/0
Nut
 Out of stock
£1.49 £1.24

  38 Nut MO112156602/0
Nut
 In stock
£1.36 £1.13

  39 Washer MO112585100/0
Washer
 Out of stock
£1.49 £1.24

  41 Winged Blade From 01-9-2007 MO184109500/0
Winged Blade From 01-9-2007
 Out of stock
£52.34 £43.62

  51 Conveyor MO127107501/0
Conveyor
 Out of stock
£52.82 £44.02

  52 Deflector MO327140051/1
Deflector
 Out of stock
£12.34 £10.28

  53 Screw MO112735402/0
Screw
 In stock
£1.49 £1.24

  54 Pin MO127510097/1
Pin
 Out of stock
£2.70 £2.25

  55 Cotter Pin MO124487997/0
Cotter Pin
 Out of stock
£1.49 £1.24

  56 Discharge Chute Assembly MO384108051/0
Discharge Chute Assembly
 Out of stock
£66.37 £55.31


Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2008

Model Type - F 72 Hydro

Art.N - 299991233/M08
