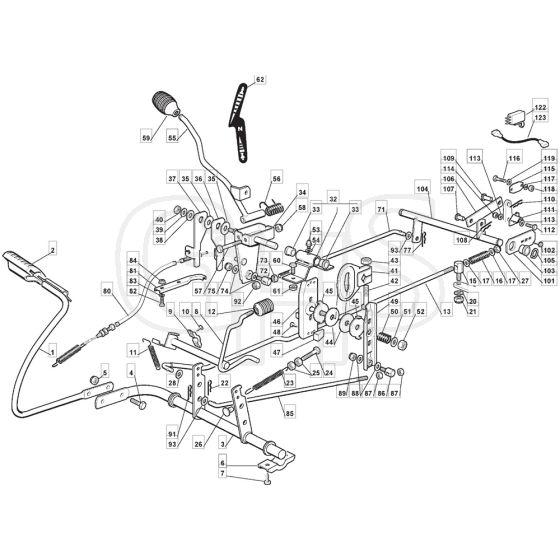

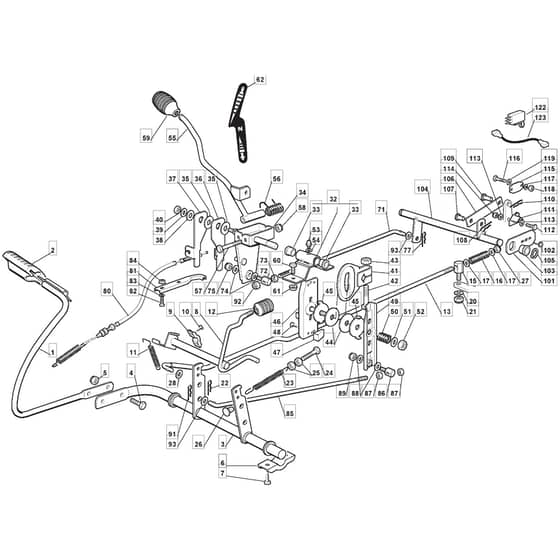

1228H - 2007 - 13-2642-17 - Mountfield Ride On Mower Controls Diagram

Name: 1228H - 2007 - 13-2642-17 - Mountfield Ride On Mower Controls Diagram
SKU: 1228h_13_2642_17_controls-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2007 - 13-2642-17 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2007

Model Type - F 72 Hydro

Art.N - 13-2642-17

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Out of stock	Pedal	£23.04 £19.20
2	MO125110267/0 Out of stock	Clamp Cover	£3.61 £3.01
3	MO384001015/1 Out of stock	Axle	£44.56 £37.13
4	MO112793301/0 Out of stock	Screw	£1.48 £1.23
6	MO327546015/2 Out of stock	Plate	£1.66 £1.38
7	MO112731350/0 Out of stock	Screw	£1.48 £1.23
8	MO384001011/2 Out of stock	Axle	£12.22 £10.18
9	MO325547049/0 Out of stock	Plate	£3.06 £2.55
10	MO112731601/0 Out of stock	Screw	£1.87 £1.56
11	MO127430552/0 Out of stock	Spring	£1.48 £1.23
12	MO127395050/1 Out of stock	Knob	£2.81 £2.34
15	MO125510067/1 Out of stock	Pin	£4.15 £3.46
16	MO125430236/1 Out of stock	Spring	£1.48 £1.23
17	MO112521360/0 In stock	Washer	£1.48 £1.23
20	MO112523050/0 In stock	Washer	£1.48 £1.23
23	MO125430210/1 Out of stock	Brake Spring	£2.54 £2.12
24	MO122943005/0 Out of stock	Screw	£2.41 £2.01
26	MO127275000/0 Out of stock	Grommet	£2.94 £2.45
27	MO112156602/0 In stock	Nut	£1.34 £1.12
32	MO384773568/0 Out of stock	Stirrup	£36.92 £30.77
33	MO127045080/0 Out of stock	Bushing	£4.96 £4.13
39	MO112523060/0 In stock	Washer	£1.48 £1.23
42	MO112794900/0 Out of stock	Screw	£1.61 £1.34
44	MO127158000/0 Out of stock	Plate	£19.96 £16.63
47	MO127063020/0 Out of stock	Cam	£1.48 £1.23
48	MO112735110/0 In stock	Screw	£1.48 £1.23
52	MO112155020/0 Out of stock	Nut	£1.61 £1.34
53	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
56	MO125430226/0 Out of stock	Spring	£2.15 £1.79
57	MO112692050/0 In stock	Screw	£1.74 £1.45
60	MO112793102/0 In stock	Screw	£1.48 £1.23
61	MO112293201/0 In stock	Nut	£1.61 £1.34
62	MO114357702/1 Out of stock	Label	£2.28 £1.90
71	MO127034071/0 Out of stock	Control Rod	£12.05 £10.04
82	MO112791400/0 In stock	Screw	£1.34 £1.12
83	MO112521330/0 Out of stock	Washer To 31-8-2012	£1.48 £1.23
83	MO112521331/0 Out of stock	Washer From 01-9-2012	£1.48 £1.23
84	MO112292102/0 Out of stock	Nut	£1.61 £1.34
85	MO127034074/0 Out of stock	Rod	£19.28 £16.07
86	MO125510040/2 Out of stock	Pin	£5.50 £4.58
87	MO112293200/0 In stock	Nut	£1.48 £1.23
89	MO112155010/0 Out of stock	Nut	£2.00 £1.67
91	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
92	MO112155000/0 In stock	Nut	£1.48 £1.23
102	MO112735120/0 Out of stock	Screw From 01-9-2012	£1.48 £1.23
102	MO112735122/0 Out of stock	Screw To 31-8-2012	£1.56 £1.30
103	MO125040614/0 Out of stock	Bushing	£1.48 £1.23
105	MO112608900/0 Out of stock	Seeger	£1.27 £1.06
111	MO127063022/0 Out of stock	Plastic Neutral Switch Cam F72 Hy.T.Torq	£2.41 £2.01
114	MO112154510/0 In stock	Nut	£1.48 £1.23
116	MO112735602/0 Out of stock	Screw	£1.48 £1.23
118	MO112290791/0 Out of stock	Nut	£1.48 £1.23
119	MO112581100/0 Out of stock	Grower From 01-9-2012	£1.27 £1.06
119	MO112540020/0 Out of stock	Washer To 31-8-2012	£1.48 £1.23
122	MO119410609/1LC In stock	Microswitch	£25.85 £21.54
123	MO125065025/0 Out of stock	Adapter Cable	£8.17 £6.81
