1228H - 2007 - 13-2642-17 - Mountfield Ride On Mower B&S Engine Diagram

Description

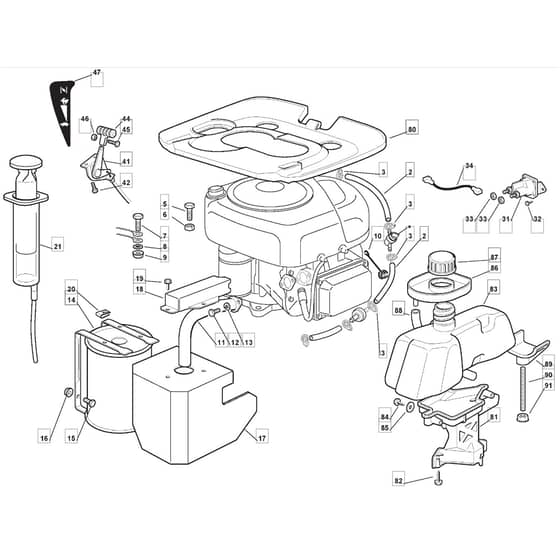

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2007

Model Type - F 72 Hydro

Art.N - 13-2642-17

Be the first to review this product

0 product questions

	Part No.	Details
2	MO325869035/1 Out of stock	Connecting Tube	£8.92 £7.43
3	MO118375051/1 Out of stock	Fair Led	£1.74 £1.45
5	MO112691100/0 Out of stock	Screw	£1.48 £1.23
7	MO112691115/0 Out of stock	Screw	£1.48 £1.23
8	MO112540260/0 Out of stock	Washer	£1.48 £1.23
9	MO112154210/0 In stock	Nut	£1.61 £1.34
10	MO125430239/1 Out of stock	Spring	£1.87 £1.56
11	MO118738225/0 Out of stock	Exhaust Pipe	£53.57 £44.64
12	MO112737450/0 Out of stock	Screw	£3.61 £3.01
13	MO112583500/0 Out of stock	Grower	£1.48 £1.23
14	MO382750006/2 Out of stock	Muffler Imasaf	£159.13 £132.61
15	MO112793102/0 In stock	Screw	£1.48 £1.23
17	MO384598081/1 Out of stock	Muffler Protection	£33.10 £27.58
18	MO327600137/0 Out of stock	Protection	£5.22 £4.35
19	MO112729601/1 Out of stock	Screw	£1.48 £1.23
20	MO112437504/0 Out of stock	Plate	£1.61 £1.34
21	MO118718000/0 Out of stock	Oil Emptying Syringe	£15.13 £12.61
31	MO118736113/0 In stock	Starter Relay	£36.16 £30.13
32	MO112735110/0 In stock	Screw	£1.48 £1.23
33	MO9743-5121-32 Out of stock	Nut	£1.40 £1.17
34	MO127065050/0 Out of stock	Cable	£6.02 £5.02
41	MO184000250/1 Out of stock	Accelerator	£24.19 £20.16
42	MO125943012/0 Out of stock	Screw	£1.48 £1.23
44	MO125394501/0 Out of stock	Knob	£1.48 £1.23
45	MO112726388/0 Out of stock	Screw	£1.48 £1.23
46	MO112290800/0 Out of stock	Nut	£1.48 £1.23
47	MO114357425/1 Out of stock	Label	£1.48 £1.23
80	MO327110306/2 Out of stock	Engine Cover Black From 01-9-2003	£18.84 £15.70
81	MO327787062/0 Out of stock	Support	£26.74 £22.28
83	MO127733003/1 Out of stock	Fuel Tank	£58.92 £49.10
84	MO112735410/0 Out of stock	Screw	£1.48 £1.23
85	MO112523040/0 In stock	Washer	£1.48 £1.23
86	MO327600061/2 Out of stock	Guard	£3.56 £2.97
87	MO125795000/1 In stock	Fuel Cap	£7.37 £6.14
88	MO325869014/1 Out of stock	Fuel Tube	£7.13 £5.94
89	MO327787063/0 Out of stock	Support	£1.40 £1.17
90	MO127510118/0 Out of stock	Pin	£3.35 £2.79
91	MO112293201/0 In stock	Hexagon Nut M8 With Exagonal Flange	£1.61 £1.34
