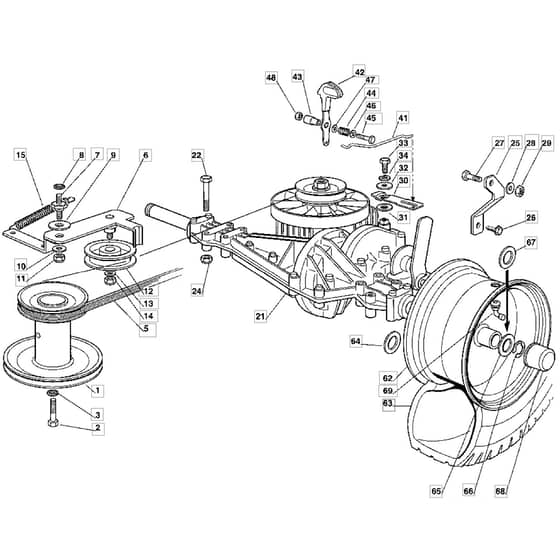

1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Transmission Diagram

Name: 1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Transmission Diagram
SKU: 1228h_13_2642_15_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2005-2007

Model Type - F 72 Hydro

Art.N - 13-2642-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604003/1 Out of stock	Engine Belt Pulley	£78.05 £65.04
2	MO112737310/0 Out of stock	Screw	£2.81 £2.34
5	MO135061403/0 Out of stock	Drive Belt	£34.81 £29.01
6	MO384317067/1 Out of stock	Tension Lever	£16.80 £14.00
7	MO127510096/0 Out of stock	Stud Bolt	£4.55 £3.79
8	MO112540260/0 Out of stock	Washer	£1.48 £1.23
9	MO322672151/0 Out of stock	Washer	£1.52 £1.27
10	MO325670011/0 Out of stock	Washer	£1.66 £1.38
11	MO9712-0831-02 Out of stock	Nut	£4.97 £4.14
12	MO125601554/0 In stock	Idler Pulley	£24.43 £20.36
13	MO112523060/0 In stock	Washer	£1.48 £1.23
15	MO122446402/1 Out of stock	Spring	£4.82 £4.02
22	MO9997-0860-16 Out of stock	Screw	£1.52 £1.27
24	MO112293201/0 In stock	Nut	£1.61 £1.34
25	MO327772115/0 Out of stock	Clamp	£11.84 £9.87
26	MO112735150/0 Out of stock	Screw	£1.61 £1.34
27	MO112793301/0 Out of stock	Screw	£1.48 £1.23
28	MO9699-0090-02 Out of stock	Washer	£1.91 £1.59
29	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
30	MO327315119/1 Out of stock	Lever	£14.26 £11.88
31	MO112521370/0 Out of stock	Washer	£1.48 £1.23
32	MO112523050/0 In stock	Washer	£1.48 £1.23
33	MO112735520/0 Out of stock	Screw	£1.48 £1.23
34	MO9683-0025-02 Out of stock	Washer	£1.66 £1.38
43	MO127510117/0 Out of stock	Pin	£6.29 £5.24
44	MO125430202/1 Out of stock	Spring	£1.61 £1.34
45	MO112689515/0 Out of stock	Screw	£1.48 £1.23
47	MO112521360/0 In stock	Washer	£1.48 £1.23
48	MO112292100/0 Out of stock	Nut	£1.34 £1.12
62	MO184044001/0 Out of stock	Rim-Rear	£71.29 £59.41
63	MO125590020/0 Out of stock	Tire (Deli)	£65.62 £54.68
63	MO382680007/1 Out of stock	Tire (Turf Saver)	£120.95 £100.79
64	MO112521410/0 Out of stock	Washer	£1.74 £1.45
65	MO125670005/2 Out of stock	Washer	£3.89 £3.24
66	MO112001000/0 Out of stock	Circlip	£1.74 £1.45
67	MO112520010/0 Out of stock	Washer	£2.15 £1.79
68	MO122110230/0 In stock	Hub Cap	£1.48 £1.23
69	MO125950002/0 Out of stock	Valve (90º)	£5.36 £4.47
