1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Frame Diagram

Description

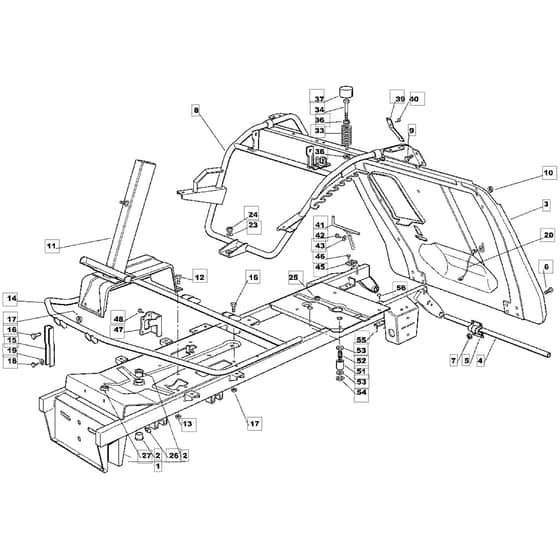

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2005-2007

Model Type - F 72 Hydro

Art.N - 13-2642-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384801135/2 Out of stock	Chassis	£394.66 £328.88
2	MO125034002/1 Out of stock	Bushing	£3.61 £3.01
3	MO384545057/3 Out of stock	Rear Plate	£159.13 £132.61
4	MO127037000/1 Out of stock	Rear Plate Fulcrum	£8.44 £7.03
5	MO325547012/1 Out of stock	Plate	£3.95 £3.29
6	MO112791200/1 Out of stock	Screw	£1.34 £1.12
7	MO112292102/0 In stock	Nut	£1.61 £1.34
9	MO9997-0816-16 Out of stock	Screw	£1.66 £1.38
9	MO112792611/0 Out of stock	Screw	£1.48 £1.23
11	MO384783027/0 Out of stock	Support	£50.93 £42.44
14	MO384801107/3 Out of stock	Footboard Support	£48.37 £40.31
15	MO327787025/0 Out of stock	Support	£3.06 £2.55
19	MO112521360/0 In stock	Washer	£1.48 £1.23
19	MO112521331/0 Out of stock	Washer	£1.48 £1.23
20	MO384040300/0 Out of stock	Rear Plate	£3.18 £2.65
23	MO112523060/0 In stock	Washer	£1.48 £1.23
24	MO112155000/0 In stock	Nut	£1.48 £1.23
25	MO112500090/1 Out of stock	Rivet	£2.10 £1.75
26	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
27	MO125034001/0 In stock	Bushing	£3.61 £3.01
33	MO127430575/0 Out of stock	Spring	£5.89 £4.91
36	MO112293201/0 In stock	Nut	£1.61 £1.34
37	MO325122000/2 Out of stock	Cap	£1.66 £1.38
39	MO127430600/0 Out of stock	Spring	£2.68 £2.23
41	MO127294001/0 Out of stock	Rear Conveyor Guide	£19.42 £16.18
42	MO112735120/0 Out of stock	Screw	£1.48 £1.23
43	MO112523040/0 In stock	Washer	£1.48 £1.23
47	MO327772095/0 Out of stock	Micro Handbrake Stirrup Support	£1.66 £1.38
48	MO112735106/0 Out of stock	Screw	£1.48 £1.23
48	MO9849-7809-16 Out of stock	Screw	£1.21 £1.01
51	MO127047012/0 Out of stock	Fast Release Bush Rider	£12.46 £10.38
52	MO127430577/0 Out of stock	Spring	£5.63 £4.69
53	MO325670008/1 Out of stock	Washer	£1.66 £1.38
54	MO112000955/0 Out of stock	Snap Ring	£1.27 £1.06
55	MO184250053/0 Out of stock	Belt Guide	£7.90 £6.58
56	MO112735110/0 Out of stock	Flanged Self-Tap Screw 4.8 X 13	£1.48 £1.23
