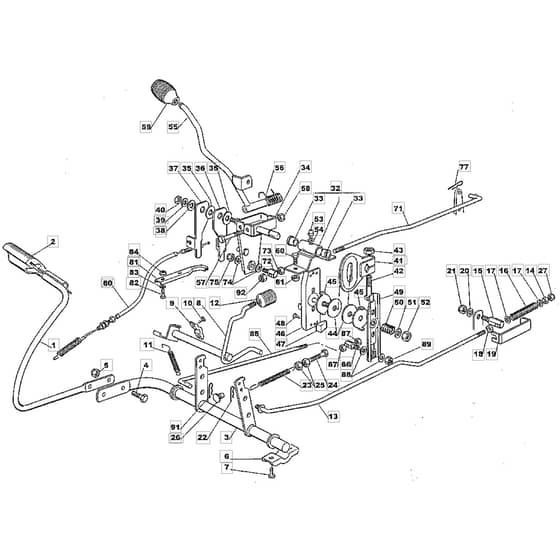

1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Controls Diagram

Name: 1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Controls Diagram
SKU: 1228h_13_2642_15_controls-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2005-2007 - 13-2642-15 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2005-2007

Model Type - F 72 Hydro

Art.N - 13-2642-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Out of stock	Brake Pedal	£23.04 £19.20
2	MO125110267/0 Out of stock	Pedal Cover	£3.61 £3.01
3	MO384001015/1 Out of stock	Pedal Shaft	£44.56 £37.13
6	MO327546015/2 Out of stock	Clamp	£1.66 £1.38
7	MO112731350/0 Out of stock	Screw	£1.48 £1.23
8	MO384001011/2 Out of stock	Parking Brake Shaft	£12.22 £10.18
9	MO325547049/0 Out of stock	Clamp	£3.06 £2.55
10	MO9847-8016-16 Out of stock	Screw	£1.91 £1.59
11	MO127430552/0 Out of stock	Spring	£1.48 £1.23
12	MO127395050/1 Out of stock	Knob	£2.81 £2.34
13	MO127034060/0 Out of stock	Rod	£30.73 £25.61
15	MO127510103/0 Out of stock	Pivot Bolt	£4.02 £3.35
16	MO25430236/0 Out of stock	Spring	£1.79 £1.49
17	MO9699-0090-02 Out of stock	Washer	£1.91 £1.59
18	MO122171001/0 Out of stock	Spacer	£1.87 £1.56
19	MO325774275/1 Out of stock	Clamp	£3.31 £2.76
20	MO112523050/0 In stock	Washer	£1.48 £1.23
21	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
23	MO125430210/1 Out of stock	Spring	£2.54 £2.12
24	MO122943005/0 Out of stock	Screw	£2.41 £2.01
26	MO127275000/0 Out of stock	Grommet	£2.94 £2.45
32	MO384773568/1 Out of stock	Bracket W.Bush Pos 33 incl.	£38.20 £31.83
34	MO384773561/1 Out of stock	Lever	£42.01 £35.01
35	MO322672151/0 Out of stock	Washer	£1.52 £1.27
36	MO327772101/0 Out of stock	Clamp	£2.42 £2.02
37	MO327772103/0 Out of stock	Clamp	£2.04 £1.70
38	MO322672152/0 Out of stock	Washer	£1.52 £1.27
39	MO112523060/0 In stock	Washer	£1.48 £1.23
41	MO327734055/0 Out of stock	Sector	£2.93 £2.44
42	MO112794900/0 Out of stock	Screw	£1.61 £1.34
44	MO127158000/0 Out of stock	Plate	£19.96 £16.63
45	MO327670053/0 Out of stock	Washer	£1.66 £1.38
46	MO384773565/0 Out of stock	Clamp	£15.79 £13.16
47	MO127063020/0 Out of stock	Cam	£1.48 £1.23
48	MO112735110/0 Out of stock	Screw	£1.48 £1.23
49	MO384773563/0 Out of stock	Lever	£5.99 £4.99
50	MO127430560/0 Out of stock	Spring	£14.53 £12.11
51	MO325670008/1 Out of stock	Washer	£1.66 £1.38
52	MO112155020/0 Out of stock	Nut	£1.61 £1.34
53	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
55	MO384317101/0 Out of stock	Gear Shift Lever	£28.01 £23.34
56	MO125430226/0 Out of stock	Spring	£2.15 £1.79
57	MO112692050/0 In stock	Screw	£1.74 £1.45
59	MO182394508/0 Out of stock	Knob	£7.90 £6.58
60	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
60	MO112793301/0 Out of stock	Screw	£1.48 £1.23
61	MO112293201/0 In stock	Nut	£1.61 £1.34
80	MO184207101/1 Out of stock	Wire	£31.82 £26.52
81	MO327772105/0 Out of stock	Clamp	£1.66 £1.38
82	MO9997-0620-16 Out of stock	Screw	£1.66 £1.38
83	MO112521360/0 In stock	Washer	£1.48 £1.23
84	MO112292102/0 In stock	Nut	£1.61 £1.34
85	MO127034058/0 Out of stock	Rod	£16.30 £13.58
86	MO125510040/2 Out of stock	Pivot Bolt	£5.50 £4.58
87	MO112293200/0 In stock	Nut	£1.48 £1.23
88	MO325670011/0 Out of stock	Washer	£1.66 £1.38
89	MO9712-0831-02 Out of stock	Nut	£4.97 £4.14
91	MO124487997/0 Out of stock	Hair Pin	£1.48 £1.23
92	MO112155000/0 In stock	Use 112155000.0	£1.48 £1.23
