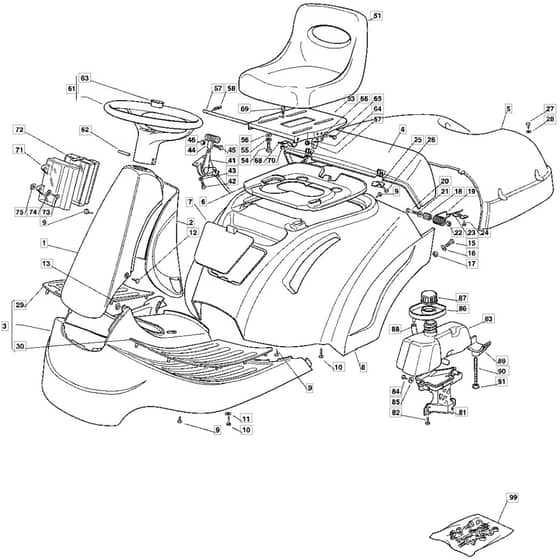

1228H - 2004 - 13-2642-14 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2004

Model Type - F 72 Hydro

Art.N - 13-2642-14

Be the first to review this product

0 product questions

	Part No.	Details
2	MO327600091/1 Out of stock	Cover.Rear-Red	£24.19 £20.16
4	MO327110302/3 Out of stock	Grass Catcher Cover.Fixed-Red	£43.28 £36.07
5	MO327110303/2 Out of stock	Grass Catcher Cover.Mobile-Red	£71.29 £59.41
6	MO327110306/2 Out of stock	Engine Cover (Black)	£18.84 £15.70
7	MO327109501/2 Out of stock	Front Cover-Red	£11.08 £9.23
8	MO384110170/0 Out of stock	Wheels Cover Red	£165.50 £137.92
9	MO112735402/0 In stock	Screw	£1.48 £1.23
12	MO112735598/0 Out of stock	Screw	£1.87 £1.56
13	MO112437503/0 Out of stock	Lock Plate	£1.87 £1.56
15	MO112791200/1 Out of stock	Screw	£1.34 £1.12
17	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
18	MO127047003/0 Out of stock	Bushing	£1.61 £1.34
19	MO127430551/1 Out of stock	Spring	£2.68 £2.23
20	MO112691200/0 Out of stock	Screw	£1.61 £1.34
21	MO112523070/0 Out of stock	Washer	£1.48 £1.23
22	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
23	MO327546001/0 Out of stock	Plate	£1.40 £1.17
25	MO327546003/0 Out of stock	Plate	£1.66 £1.38
27	MO112729601/1 Out of stock	Screw	£1.48 £1.23
28	MO112521360/0 In stock	Washer	£1.48 £1.23
29	MO127110304/0 Out of stock	Footboard Cover-R	£9.37 £7.81
30	MO127110305/1 Out of stock	Footboard Cover-L	£9.37 £7.81
41	MO184000250/1 Out of stock	Throttle Control	£24.19 £20.16
42	MO112788512/0 Out of stock	Screw	£1.48 £1.23
43	MO112581200/0 Out of stock	Washer	£1.87 £1.56
44	MO125394501/0 Out of stock	T-Handle	£1.48 £1.23
46	MO112290800/0 Out of stock	Nut	£1.48 £1.23
53	MO325547033/1 Out of stock	Seat Plate	£35.65 £29.71
54	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
55	MO112583500/0 Out of stock	Washer	£1.48 £1.23
56	MO112523060/0 In stock	Washer	£1.48 £1.23
57	MO127864052/1 Out of stock	Pin	£6.29 £5.24
58	MO124487997/0 Out of stock	Hair Pin	£1.48 £1.23
61	MO125961217/1 Out of stock	Steering Wheel Pos 63 incl.	£93.73 £78.11
62	MO112620300/0 In stock	Locating Pin	£1.74 £1.45
63	MO325120230/0 Out of stock	Cap	£3.06 £2.55
64	MO327063021/1 Out of stock	Cam	£7.46 £6.22
65	MO112789100/0 Out of stock	Screw	£1.48 £1.23
66	MO112523020/0 Out of stock	Washer	£1.48 £1.23
68	MO125430223/2 Out of stock	Spring	£5.89 £4.91
69	MO112789000/0 Out of stock	Screw	£1.48 £1.23
70	MO112154330/0 Out of stock	Nut	£1.48 £1.23
71	MO125600020/0 Out of stock	Guard-Upper	£11.78 £9.82
72	MO125600021/1 Out of stock	Guard-Lower	£12.72 £10.60
73	MO112728460/0 Out of stock	Screw	£1.48 £1.23
74	MO112521320/0 Out of stock	Washer	£1.48 £1.23
75	MO112437502/0 Out of stock	Lock Plate	£1.48 £1.23
81	MO327787062/0 Out of stock	Support	£26.74 £22.28
82	MO112735410/0 Out of stock	Screw	£1.48 £1.23
83	MO127733003/1 Out of stock	Fuel Tank	£58.92 £49.10
85	MO112523040/0 In stock	Washer	£1.48 £1.23
86	MO327600061/2 Out of stock	Guard	£3.56 £2.97
87	MO125795000/1 In stock	Tank Cap	£7.37 £6.14
88	MO325869014/1 Out of stock	Tube	£7.13 £5.94
90	MO127510118/0 Out of stock	Stud	£3.35 £2.79
91	MO112293201/0 In stock	Nut	£1.61 £1.34
