1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower Engagement Diagram

Name: 1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower Engagement Diagram
SKU: 1228h_13_2642_13_engagement-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower Engagement Diagram

Description

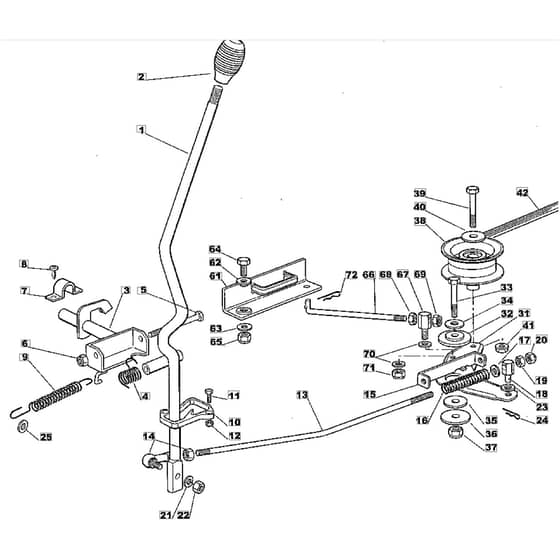

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2003

Model Type - F 72 Hydro

Art.N - 13-2642-13

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184317069/1 Out of stock	Pto-Lever	£36.92 £30.77
2	MO125394510/0 Out of stock	Knob	£4.02 £3.35
3	MO384001007/0 Out of stock	Blade Eng.Axle Control Ass.Y	£14.14 £11.78
4	MO125430226/0 Out of stock	Spring	£2.15 £1.79
5	MO112692050/0 In stock	Screw	£1.74 £1.45
7	MO325547049/0 Out of stock	Plate	£3.06 £2.55
8	MO9847-8016-16 Out of stock	Screw	£1.91 £1.59
8	MO112731601/0 Out of stock	Screw	£1.87 £1.56
9	MO127430571/0 Out of stock	Spring	£4.42 £3.68
10	MO127487000/0 Out of stock	Shoe	£2.81 £2.34
11	MO112791200/1 Out of stock	Screw	£1.34 £1.12
12	MO112154510/0 In stock	Nut	£1.48 £1.23
13	MO127034078/0 Out of stock	Rod	£8.30 £6.92
14	MO122746601/0 Out of stock	Joint	£18.20 £15.17
14	MO122746610/0 Out of stock	Ball Joint	£20.09 £16.74
15	MO327772143/0 Out of stock	Clamp	£6.74 £5.62
16	MO127430576/0 Out of stock	Spring	£9.37 £7.81
17	MO9699-0090-02 Out of stock	Washer	£1.91 £1.59
17	MO112521350/0 Out of stock	Washer	£1.48 £1.23
18	MO127510113/0 Out of stock	Pivot Pin	£8.30 £6.92
21	MO112583500/0 Out of stock	Washer	£1.48 £1.23
23	MO325670008/1 Out of stock	Washer	£1.66 £1.38
25	MO125670006/0 Out of stock	Washer	£1.48 £1.23
31	MO384317083/0 Out of stock	Lever	£18.07 £15.06
32	MO127047000/0 Out of stock	Bushing	£4.82 £4.02
33	MO112691200/0 Out of stock	Screw	£1.61 £1.34
36	MO112523070/0 Out of stock	Washer	£1.48 £1.23
38	MO127604008/0 Out of stock	Pulley	£89.05 £74.21
39	MO112691600/0 Out of stock	Screw	£1.74 £1.45
40	MO112523060/0 In stock	Washer	£1.48 £1.23
41	MO112293201/0 In stock	Nut	£1.61 £1.34
42	MO135061423/0G In stock	V-Belt	£48.20 £40.17
61	MO384220501/0 Out of stock	Blade Brake	£9.17 £7.64
62	MO122041980/0 Out of stock	Bushing	£1.48 £1.23
63	MO322672152/0 Out of stock	Washer	£1.52 £1.27
64	MO112793102/0 In stock	Screw	£1.48 £1.23
64	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
65	MO112155010/0 Out of stock	Nut	£2.00 £1.67
65	MO9712-0831-02 Out of stock	Nut	£4.97 £4.14
66	MO127034077/1 Out of stock	Rod	£12.46 £10.38
67	MO125510040/2 Out of stock	Pivot Bolt	£5.50 £4.58
68	MO112293200/0 In stock	Nut	£1.48 £1.23
70	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
71	MO112155000/0 In stock	Nut	£1.48 £1.23
72	MO124487997/0 Out of stock	Spring Clip D	£1.48 £1.23
