1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower 72cm Deck Diagram

Description

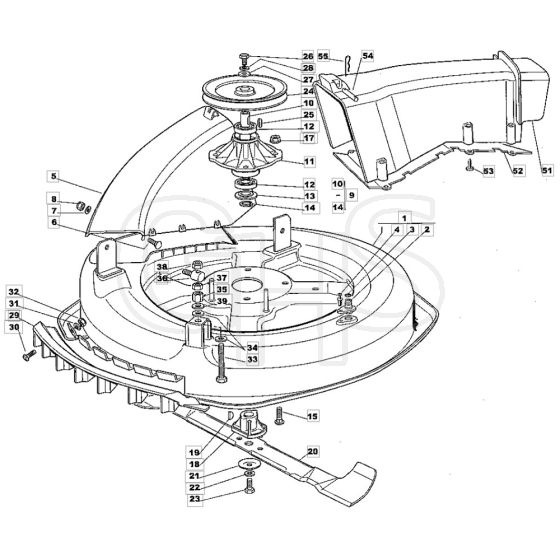

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2003

Model Type - F 72 Hydro

Art.N - 13-2642-13

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384564111/0 Out of stock	Mower Casing	£432.85 £360.71
2	MO125033060/0 In stock	Water Hose Connection	£1.48 £1.23
3	MO119035000/0 Out of stock	O-Ring	£4.82 £4.02
4	MO112500030/0 Out of stock	Rivet	£1.48 £1.23
5	MO327045000/1 Out of stock	Conveyor Inlet	£17.70 £14.75
6	MO112815210/0 Out of stock	Screw	£1.48 £1.23
7	MO112523040/0 In stock	Washer	£1.48 £1.23
8	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
9	MO384207250/0 Out of stock	Bearing Box Assy Pos 10 - 14 incl.	£98.03 £81.69
10	MO127023000/0 Out of stock	Blade Shaft	£32.14 £26.78
12	MO119216047/0 In stock	Ball Bearing	£15.00 £12.50
13	MO325160501/1 Out of stock	Dust Cover	£1.66 £1.38
14	MO112609260/0 Out of stock	Circlip	£1.74 £1.45
15	MO112818700/0 In stock	Screw	£1.48 £1.23
17	MO112293201/0 In stock	Nut	£1.61 £1.34
18	MO125463200/0 In stock	Blade Hub	£9.04 £7.53
20	MO184109503/0 Out of stock	Blade	£54.74 £45.62
21	MO122160400/0 In stock	Elastic Washer	£1.74 £1.45
23	MO112735694/0 In stock	Screw	£1.87 £1.56
24	MO127604009/0 Out of stock	Belt Pulley	£54.36 £45.30
25	MO112139480/0 In stock	Key	£1.61 £1.34
26	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
27	MO125670007/0 Out of stock	Washer	£1.87 £1.56
28	MO112583500/0 Out of stock	Washer	£1.48 £1.23
29	MO127488000/0 Out of stock	Air Intake Grill	£9.64 £8.03
30	MO112815200/0 In stock	Screw	£1.48 £1.23
31	MO112521350/0 In stock	Washer	£1.48 £1.23
33	MO112794970/0 Out of stock	Screw	£3.22 £2.68
34	MO112523080/0 In stock	Washer	£1.48 £1.23
35	MO112154250/0 Out of stock	Nut	£4.55 £3.79
36	MO125510007/2 Out of stock	Pivot Bolt	£5.35 £4.46
37	MO112295200/0 Out of stock	Nut	£1.34 £1.12
38	MO112156602/0 In stock	Lock Nut	£1.34 £1.12
39	MO112585100/0 Out of stock	Washer	£1.48 £1.23
51	MO127107501/0 Out of stock	Conveyor	£52.22 £43.52
52	MO327140051/1 Out of stock	Deflector	£12.10 £10.08
53	MO112735402/0 In stock	Screw	£1.48 £1.23
54	MO127510097/1 Out of stock	Pin	£2.68 £2.23
55	MO124487997/0 Out of stock	Hair Pin	£1.48 £1.23
