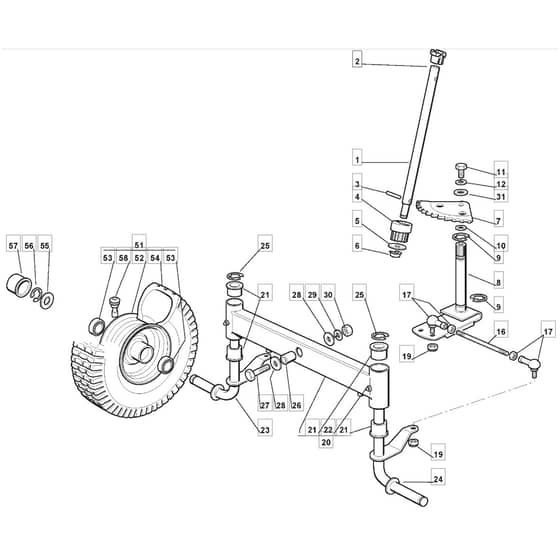

1228H - 2002-2007 - 299991133/MOU - Mountfield Ride On Mower Steering Diagram

Name: 1228H - 2002-2007 - 299991133/MOU - Mountfield Ride On Mower Steering Diagram
SKU: 1228h_299991133_mou_steering-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2002-2007 - 299991133/MOU - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2002-2007

Model Type - F 72 Hydro

Art.N - 299991133/MOU

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127520050/0 Out of stock	Steering Column	£25.31 £21.09
2	MO125038003/0 Out of stock	Bushing To 31-8-2003	£7.56 £6.30
2	MO325038004/0 Out of stock	Bushing From 01-9-2003	£1.91 £1.59
3	MO112622650/0 Out of stock	Dowel Pin	£1.61 £1.34
4	MO127570050/0 Out of stock	Pinion	£10.58 £8.82
5	MO112521370/0 Out of stock	Washer	£1.48 £1.23
6	MO112436030/0 In stock	Plate	£1.74 £1.45
7	MO384735551/0 Out of stock	Steering Sector	£26.74 £22.28
8	MO384000501/0 Out of stock	Shaft	£33.10 £27.58
9	MO112001000/0 Out of stock	Benzing Ring	£1.74 £1.45
10	MO112520031/0 Out of stock	Washer	£1.48 £1.23
11	MO112793102/0 In stock	Screw	£1.48 £1.23
12	MO112583500/0 Out of stock	Grower	£1.48 £1.23
16	MO384840051/0 Out of stock	Tie Rod	£31.82 £26.52
19	MO112156602/0 In stock	Nut	£1.34 £1.12
20	MO184034057/0 Out of stock	Complete Forecarriege Equalizer Ass.Y	£101.84 £84.87
21	MO125034002/1 Out of stock	Bushing	£3.61 £3.01
22	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
23	MO384230401/1 Out of stock	Right Stub Axle	£48.37 £40.31
24	MO384230403/1 Out of stock	Left Stub Axle	£48.37 £40.31
26	MO125160016/1 Out of stock	Spacer	£5.89 £4.91
27	MO112692695/0 Out of stock	Screw	£1.48 £1.23
28	MO112523100/0 Out of stock	Washer	£1.87 £1.56
29	MO112587100/0 Out of stock	Grower	£1.48 £1.23
30	MO112295300/0 Out of stock	Nut	£1.48 £1.23
31	MO112521350/0 Out of stock	Washer	£1.48 £1.23
51	MO384680052/1 Out of stock	Wheel Assy	£86.57 £72.14
52	MO184044000/0 Out of stock	Rimm	£48.37 £40.31
53	MO125122200/2 In stock	Bearing	£11.24 £9.37
54	MO127590067/0 Out of stock	Front Tyre (Deli)	£40.18 £33.48
55	MO125670005/2 Out of stock	Washer	£3.89 £3.24
57	MO122110230/0 In stock	Hub Cover	£1.48 £1.23
58	MO125950000/0 Out of stock	Pneumatic Valve	£5.09 £4.24
