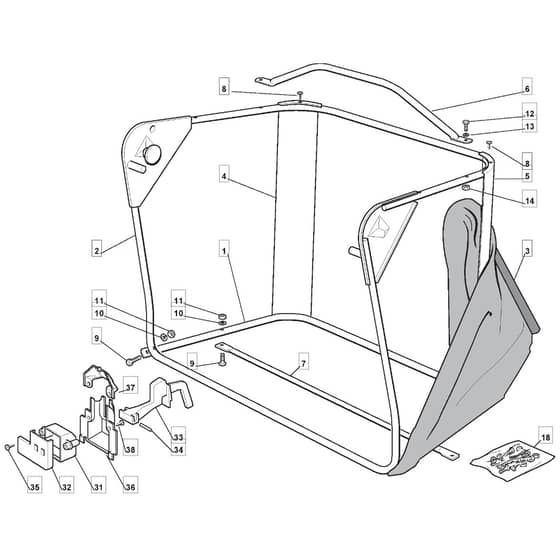

1228H - 2002-2007 - 299991133/MOE - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1228H - 2002-2007 - 299991133/MOE - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1228h_299991133_moe_grasscatcher-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2002-2007 - 299991133/MOE - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2002-2007

Model Type - F 72 Hydro

Art.N - 299991133/MOE

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384801103/0 Out of stock	Lower Frame	£19.99 £16.66
2	MO384801105/1 Out of stock	Black Upper Grass.Frame	£78.94 £65.78
3	MO184106069/0 Out of stock	Grass.Fabrix Box (Rider)	£92.94 £77.45
4	MO327010205/0 Out of stock	Right Angular Support	£13.24 £11.03
5	MO327010207/0 Out of stock	Left Angular Support	£13.87 £11.56
6	MO384869051/0 Out of stock	Rod	£9.80 £8.17
7	MO384650100/1 Out of stock	Stiffening	£9.67 £8.06
8	MO112729601/1 Out of stock	Screw	£1.48 £1.23
9	MO112792099/0 In stock	Screw	£1.34 £1.12
10	MO112582101/0 Out of stock	Grower	£1.66 £1.38
11	MO112292100/0 Out of stock	Nut	£1.34 £1.12
12	MO112674701/0 Out of stock	Screw	£1.48 £1.23
13	MO112521331/0 Out of stock	Washer	£1.48 £1.23
14	MO112154510/0 In stock	Nut	£1.48 £1.23
31	MO125600041/0 Out of stock	Grassc.Full Micro Protection Tcj-F	£2.28 £1.90
32	MO125600042/0 Out of stock	Grasscatcher Micro Prot Cover	£2.81 £2.34
33	MO125318124/0 Out of stock	Full Grassc. Microswtich Cover	£1.87 £1.56
34	MO112400030/0 Out of stock	Pin	£1.74 £1.45
35	MO112728440/0 Out of stock	Screw	£1.34 £1.12
36	MO125600047/0 Out of stock	Grassc.Full Micro Protection Tc 2000	£1.61 £1.34
37	MO125600048/0 Out of stock	Empty Micro Grassc.Protection Cover	£1.48 £1.23
38	MO112728450/0 In stock	Self-Tap Screw 4.8 X 19	£1.48 £1.23
