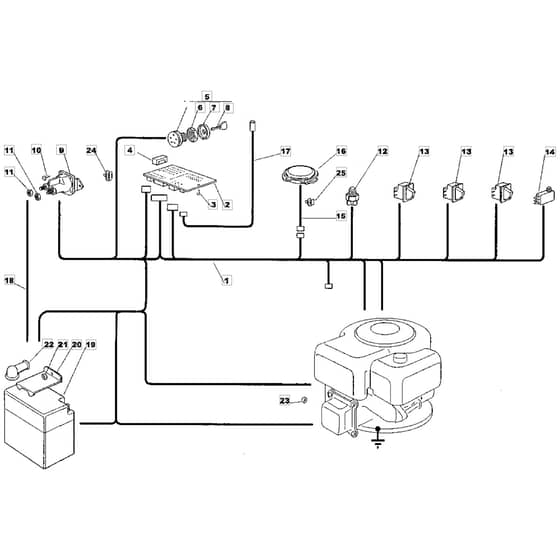

1228H - 2002 - 13-2642-12 - Mountfield Ride On Mower Electrics Diagram

Name: 1228H - 2002 - 13-2642-12 - Mountfield Ride On Mower Electrics Diagram
SKU: 1228h_13_2642_12_electrics-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2002 - 13-2642-12 - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2002

Model Type - F 72 Hydro

Art.N - 13-2642-12

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125722415/1 Out of stock	Electronic Card	£111.68 £93.07
3	MO112727810/0 Out of stock	Screw	£1.48 £1.23
4	MO133340033/0 Out of stock	Fuse (6.3 A) 6.3 A	£4.42 £3.68
6	MO118400861/0 Out of stock	Nut	£5.76 £4.80
7	MO118565351/0 Out of stock	Bezel 121	£6.70 £5.58
8	MOMX835 Out of stock	Ignition Key	£12.66 £10.55
9	MO118736113/0 In stock	Solenoid	£36.16 £30.13
10	MO112735110/0 Out of stock	Screw	£1.48 £1.23
11	MO9743-5121-32 Out of stock	Nut	£1.40 £1.17
13	MO119410622/1 In stock	Microswitch	£6.29 £5.24
14	MO119410605/1 In stock	Microswitch Full grass bag	£37.49 £31.24
15	MO125065020/0 Out of stock	Cable	£12.25 £10.21
16	MO119410607/0 Out of stock	Microswitch Seat	£52.22 £43.52
17	MO125065014/1 Out of stock	Cable	£12.10 £10.08
18	MO127065050/0 Out of stock	Cable	£6.02 £5.02
19	MO118120068/0-1 In stock	Battery	£107.95 £89.96
21	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
22	MO118564861/2 Out of stock	Protection	£6.43 £5.36
23	MO112361005/0 Out of stock	Nut	£4.02 £3.35
24	MO133320506/0 Out of stock	Cable Holder	£1.34 £1.12
25	MO133320504/0 Out of stock	Cable Holder	£1.87 £1.56
